MATSUSHITA

PM4HW-H-AC240V Matsushita Panasonic PM4H-W Twin Timer Time Delay Relay DPDT 240VAC

$79.99 CAD

Sale Sold out

Style REFURBISH

Description:

Genuine Matsushita (Panasonic) PM4H-W series analog twin timer time delay relay
Designed for industrial automation, machine sequencing, process control, and repetitive timing applications
Operates from a 100–240 VAC, 50/60 Hz supply (240 VAC nominal model)
Twin timer / repeat cycle function with independently adjustable ON and OFF time periods
Wide adjustable timing range from 0.1 second to 500 hours
DPDT (2 Form C) output contacts rated at 5A @ 250 VAC
Front-mounted adjustment dials and LED indicators for simple setup and status monitoring

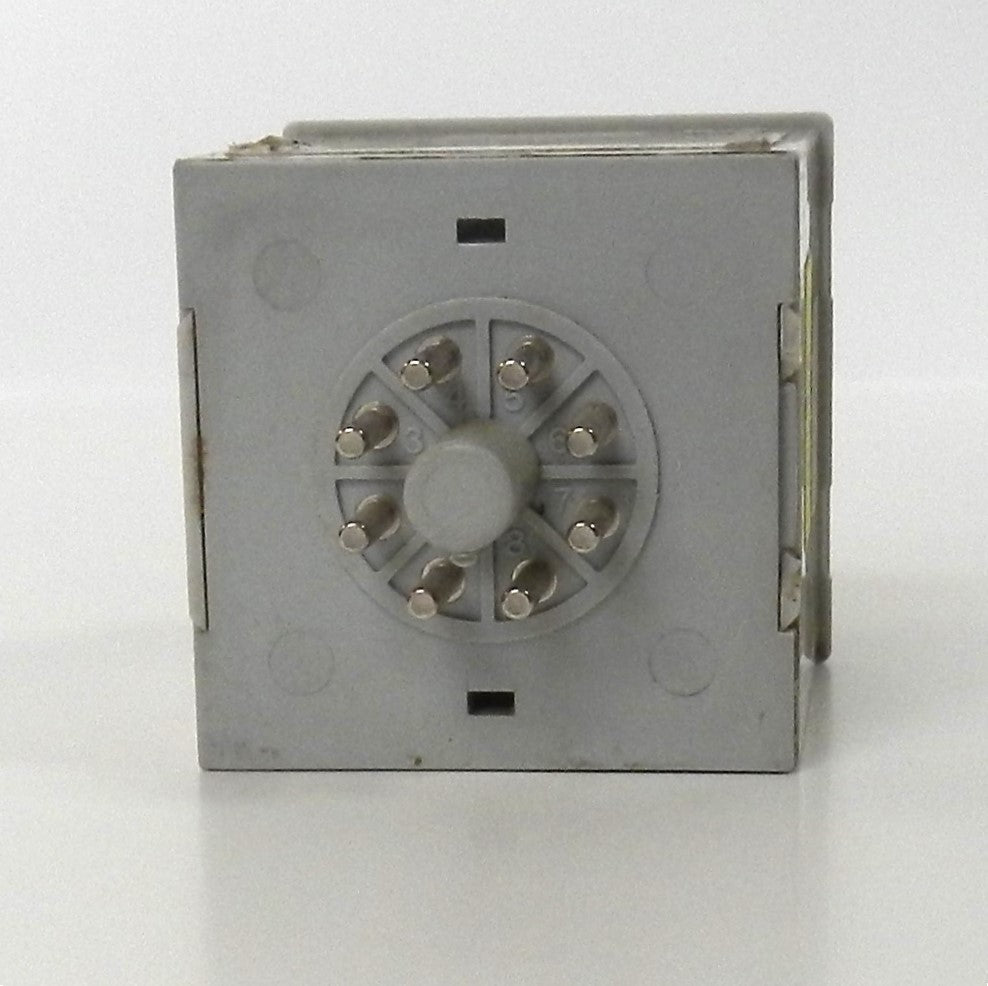

8-pin octal plug-in design for quick installation and replacement
Socket-mount construction suitable for industrial control panels and automation systems
Ideal for conveyor systems, packaging machinery, HVAC controls, OEM equipment, manufacturing, and industrial process automation
Discontinued by Panasonic, making it suitable for replacement and maintenance of existing PM4H-W installations.

Manufacturer Name: Matsushita (Panasonic)
Part Number (MPN): PM4HW-H-AC240V
Product Series: PM4H-W
Product Type: Analog Twin Timer Time Delay Relay
Supply Voltage: 100–240 VAC
Nominal Voltage: 240 VAC
Frequency: 50/60 Hz
Timing Function: Repeat Cycle / Twin Timer
Timing Range: 0.1 Second to 500 Hours
Output Contacts: DPDT (2 Form C)
Contact Rating: 5 A @ 250 VAC
Relay Type: Mechanical Relay
Mounting Type: Socket Mount
Connection Type: 8-Pin Octal Plug-In
Timing Adjustment: Front Dial
Status Indicators:
- Power Indicator
- Output ON Indicator
- Output OFF Indicator
Front Panel Size: DIN 48 × 48 mm
Protection Rating: IP50 (Front Panel)
Lifecycle Status: Discontinued
Applications:
- Industrial Automation
- Machine Control
- Process Timing
- Conveyor Systems
- Packaging Equipment
- HVAC Systems
- OEM Machinery
