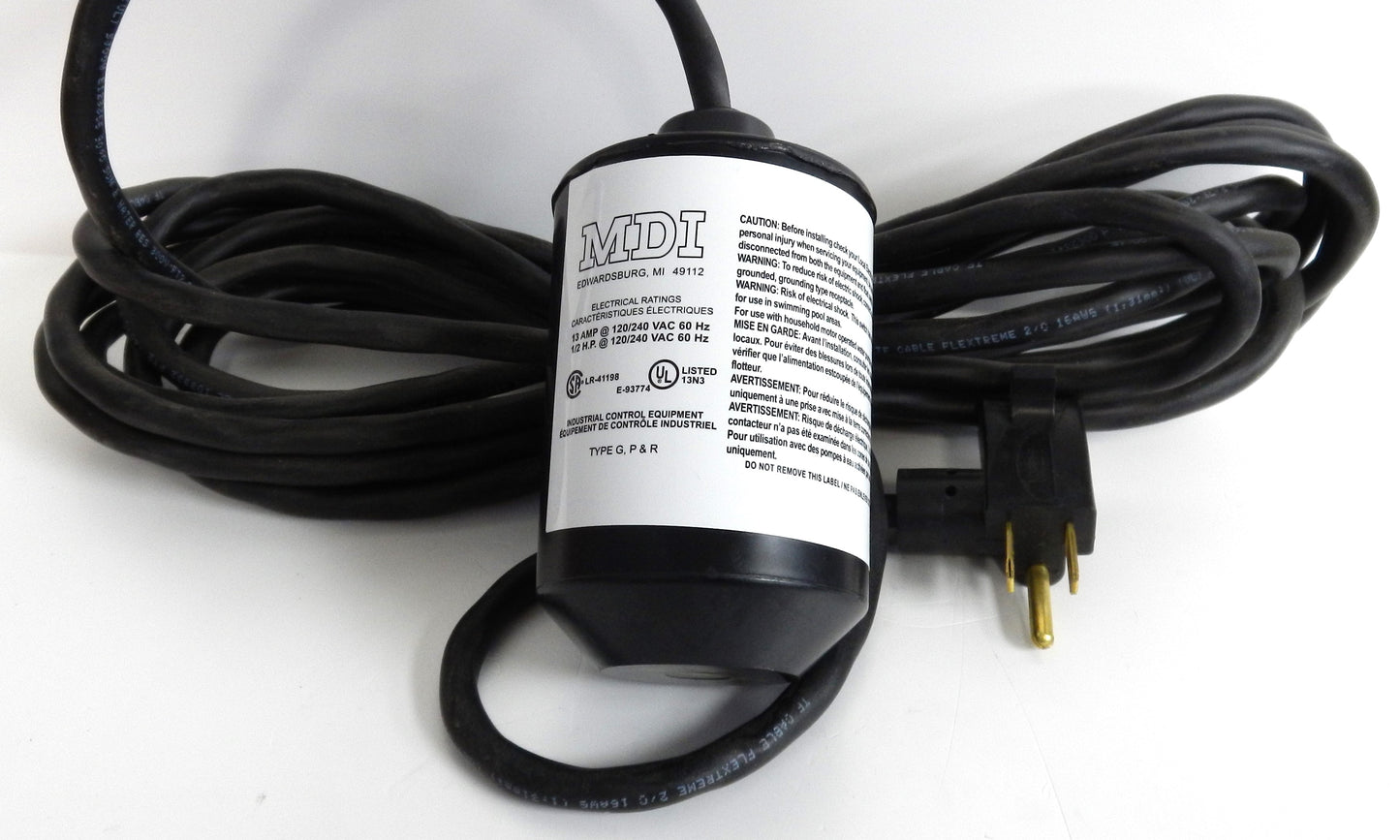

GF10W20F1 MDI Wide-Angle Float Switch 20 ft Cord Normally Open 120VAC Piggyback Plug

Description:

• Genuine MDI (Mercury Displacement Industries) wide-angle mechanical float switch for industrial liquid level control
• Designed for pump-down (Normally Open) applications in sump pits, tanks, reservoirs, and wastewater systems
• Features a 20 ft (6.1 m) SJOW power cord with a 120 VAC piggyback plug for simple plug-and-play installation
• Wide-angle operation provides dependable pump cycling and liquid level monitoring
• Mechanical snap-action switch design delivers reliable performance with no mercury
• Durable High Impact Polystyrene (HIPS) float housing for long service life in demanding environments
• Ideal for pump automation, water treatment, wastewater systems, lift stations, septic systems, and industrial fluid level control
• UL Listed and CSA Certified for industrial applications.

Specifications:

• Manufacturer Name: MDI (Mercury Displacement Industries)
• Part Number (MPN): GF10W20F1
• Product Series: GF Series
• Product Type: Float Switch
• Switch Type: Mechanical Snap-Action
• Contact Configuration: Normally Open (Pump Down)
• Operating Angle:
  • Contacts Close: 45° Above Horizontal
  • Contacts Open: 45° Below Horizontal
• Supply Voltage: 120 VAC
• Plug Type: 120 VAC Piggyback Plug (NEMA 5-15)
• Cord Length: 20 ft (6.1 m)
• Cord Type: 16 AWG, 2-Conductor SJOW
• Electrical Rating:
  • 13 A @ 120/240 VAC
  • 1/2 HP @ 120/240 VAC
  • 58.8 LRA
• Float Material: High Impact Polystyrene (HIPS)
• Float Dimensions:
  • 4.625 in Length
  • 2.625 in Diameter
• Operating Temperature: Up to 60°C (140°F)
• Certifications:
  • UL Listed
  • CSA Certified
• Applications:
  • Sump Pumps
  • Pump Control
  • Tank Level Monitoring
  • Water Treatment
  • Wastewater Systems
  • Industrial Fluid Control

Dimensions:

• Float Length: 4.625 in (117.5 mm)
• Float Diameter: 2.625 in (66.7 mm)
• Cord Length: 20 ft (6.1 m)

Weight:

• Approximate Weight: 0.87 kg (1.91 lb).
