MERLIN GERIN

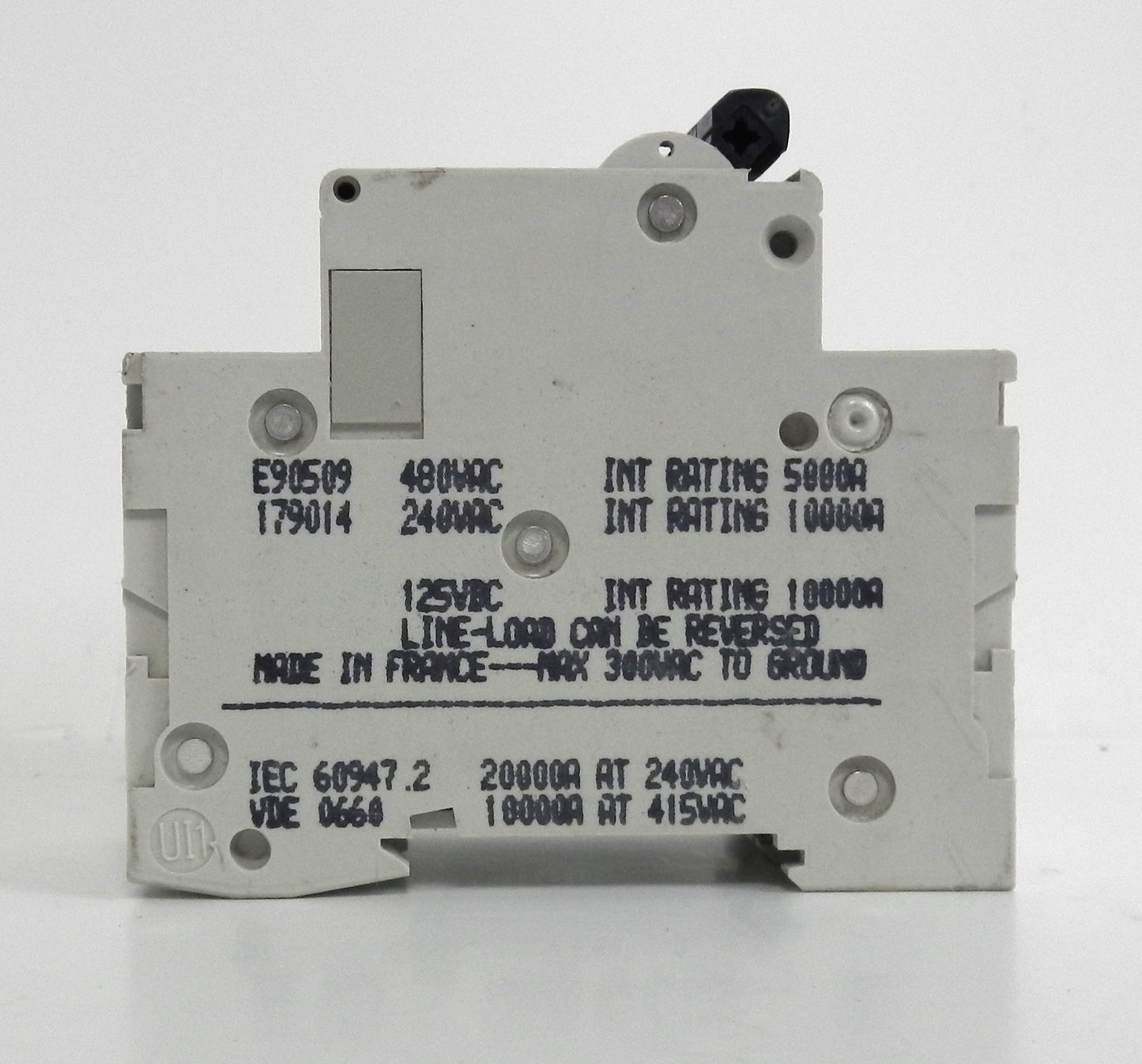

C60N-2P-8A-D Merlin Gerin Multi 9 8A 2-Pole Miniature Circuit Breaker D-Curve DIN Rail

$44.99 CAD

Sale Sold out

Style REFURBISH

Description:

Genuine Merlin Gerin (Schneider Electric) Multi 9 miniature circuit breaker for industrial and commercial electrical protection
Provides 2-pole, 8 Amp overcurrent protection for AC distribution circuits
D-Curve trip characteristic designed for high inrush current loads, including motors, transformers, solenoids, and inductive equipment
Rated for 230/400–415 VAC applications
6 kA breaking capacity to IEC 60898 and 10 kA breaking capacity to IEC 60947-2 for industrial applications
Thermal-magnetic trip mechanism provides reliable overload and short-circuit protection
Compact 35 mm DIN rail mounting simplifies installation in switchboards and control panels
Tunnel terminals accept solid and stranded conductors for secure wiring
Positive contact indication provides clear ON/OFF status
Ideal for industrial automation, motor control panels, OEM machinery, HVAC systems, and electrical distribution applications

Manufacturer Name: Merlin Gerin (Schneider Electric)
Part Number (MPN): C60N-2P-8A-D
Product Series: Multi 9 C60N
Product Type: Miniature Circuit Breaker (MCB)
Number of Poles: 2
Rated Current: 8 A
Trip Curve: D
Protection Type: Thermal-Magnetic
Rated Operational Voltage:
- 230/240 VAC
- 400/415 VAC
Frequency: 50/60 Hz
Breaking Capacity:
- 6 kA (IEC 60898)
- 10 kA (IEC 60947-2 @ 400/415 VAC)
Impulse Withstand Voltage: 6 kV
Mechanical Endurance: 20,000 Operating Cycles
Mounting Type: 35 mm DIN Rail
Connection Type: Tunnel Screw Terminals
Maximum Conductor Size:
- 25 mm² (up to 25 A)
- 35 mm² (32–63 A)
Operating Temperature: -5°C to +60°C
Degree of Protection:
- IP20 (Terminals)
- IP40 (Installed in Enclosure)
Applications:
- Industrial Control Panels
- Electrical Distribution
- Motor Protection
- HVAC Equipment
- OEM Machinery
- Industrial Automation
