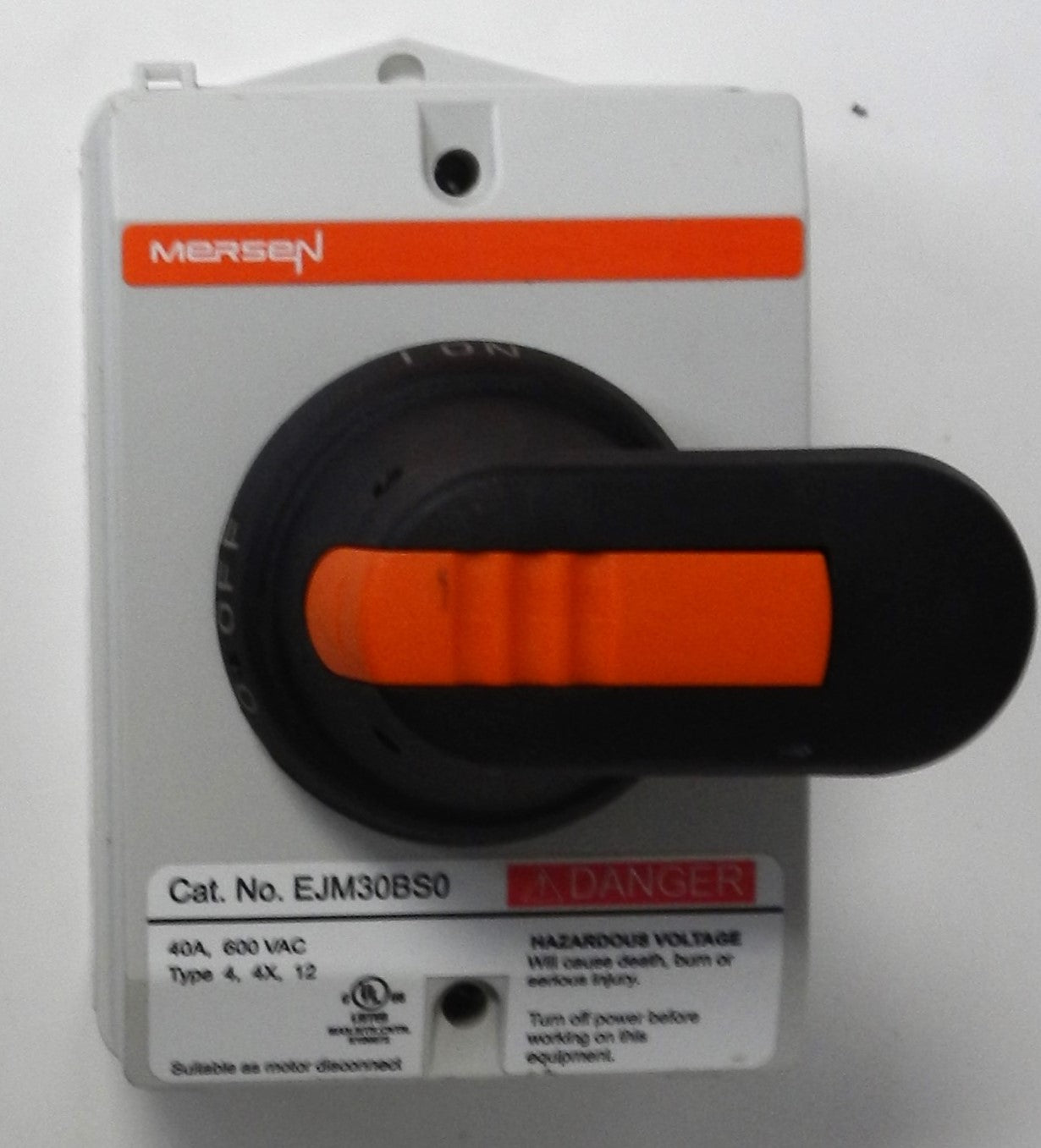

EJM30BS0 Mersen Ferraz Shawmut Enclosed Disconnect Switch 40A 600VAC 3-Pole NEMA 4X Non-Fusible

Description:

• Genuine Mersen Ferraz Shawmut enclosed disconnect switch for industrial load isolation and motor disconnect applications
• Rated 40 Amps at 600 VAC for reliable switching of industrial power circuits
• 3-pole non-fusible disconnect switch designed for safe isolation of three-phase equipment
• Rugged NEMA 4X non-metallic enclosure provides protection against water, corrosion, dust, and harsh environments
• Rotary long-handle operator with clear ON/OFF indication and padlock capability for OSHA lockout/tagout procedures
• Suitable for use as a motor disconnect and local equipment isolation switch
• Compact enclosure simplifies installation while reducing panel space requirements
• Screw terminal connections provide secure field wiring
• Ideal for conveyors, food processing equipment, HVAC systems, industrial machinery, OEM equipment, and motor control applications
• Manufactured by Mersen for dependable industrial safety and power isolation.

Specifications:

• Manufacturer Name: Mersen (Ferraz Shawmut)
• Part Number (MPN): EJM30BS0
• Product Series: Enclosed Disconnect Switches
• Product Type: Enclosed Disconnect Switch
• Switch Type: Non-Fusible
• Number of Poles: 3
• Rated Current: 40 A
• Rated Voltage: 600 VAC
• Current Type: AC
• Enclosure Type: NEMA 4X Non-Metallic
• Degree of Protection: IP65
• Handle Type: Long Rotary Handle
• Terminal Type: Screw Terminal
• Mounting Type: Screw Mount
• Standards:
  • UL 508
  • UL 508A
  • UL 98
  • CSA Certified
  • IEC Rated
  • RoHS Compliant
• Applications:
  • Motor Disconnect
  • Load Break Switching
  • Circuit Isolation
  • Conveyor Systems
  • Food Processing Equipment
  • Industrial Control Panels
  • Harsh Industrial Environments

Dimensions:

• Height: 5.06 in (128.5 mm)
• Width: 3.94 in (100.1 mm)
• Length: 5.98 in (151.9 mm)

Weight:

• Approximate Weight: 1.36 lb (0.62 kg).
