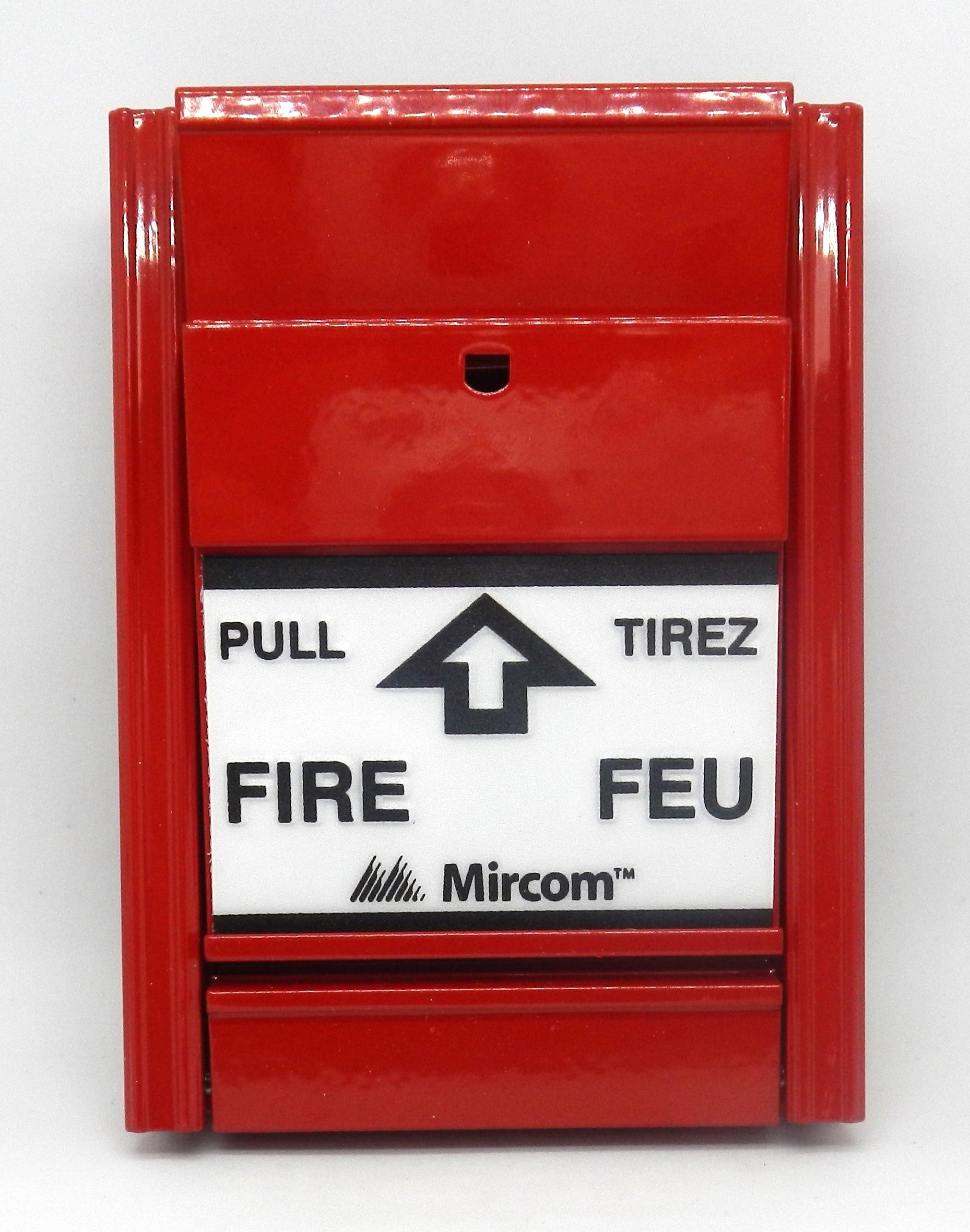

MS-401 Mircom Single Stage Fire Alarm Manual Pull Station Conventional Metal Red

Description:

• Genuine Mircom single-stage manual fire alarm pull station for conventional fire alarm systems
• Designed for fast manual activation of fire alarm systems during emergency situations
• Rugged die-cast metal construction with durable red enamel finish for long service life
• Single-action pull handle provides quick and reliable alarm activation
• Compatible with conventional fire alarm control panels
• Resettable using the supplied reset key for easy maintenance after alarm activation
• Surface or flush mounting on a standard single-gang electrical box
• Clearly marked "PULL DOWN" operating instructions for easy identification
• Ideal for commercial buildings, schools, hospitals, offices, warehouses, industrial facilities, and institutional applications
• UL and ULC listed for dependable fire protection applications.

Specifications:

• Manufacturer Name: Mircom
• Part Number (MPN): MS-401
• Product Type: Manual Fire Alarm Pull Station
• Operation: Single Stage
• System Type: Conventional Fire Alarm
• Activation: Single Action Pull Handle
• Contact Rating:
  • 1 A @ 120 VAC
  • 1 A @ 30 VDC
• Mounting:
  • Single-Gang Electrical Box
  • Surface or Flush Mount
• Construction: Die-Cast Metal
• Finish: Red Enamel
• Reset Method: Key Reset
• Operating Temperature: 0°C to +49°C (32°F to +120°F)
• Standards & Certifications:
  • UL Listed
  • ULC Listed
• Applications:
  • Commercial Buildings
  • Industrial Facilities
  • Schools
  • Hospitals
  • Offices
  • Warehouses
  • Fire Alarm Systems

Dimensions:

• Height: 4.53 in (115 mm)
• Width: 3.30 in (84 mm)
• Depth: 0.76 in (19 mm)

Weight:

• Approximate Weight: 0.20 kg (0.44 lb).
