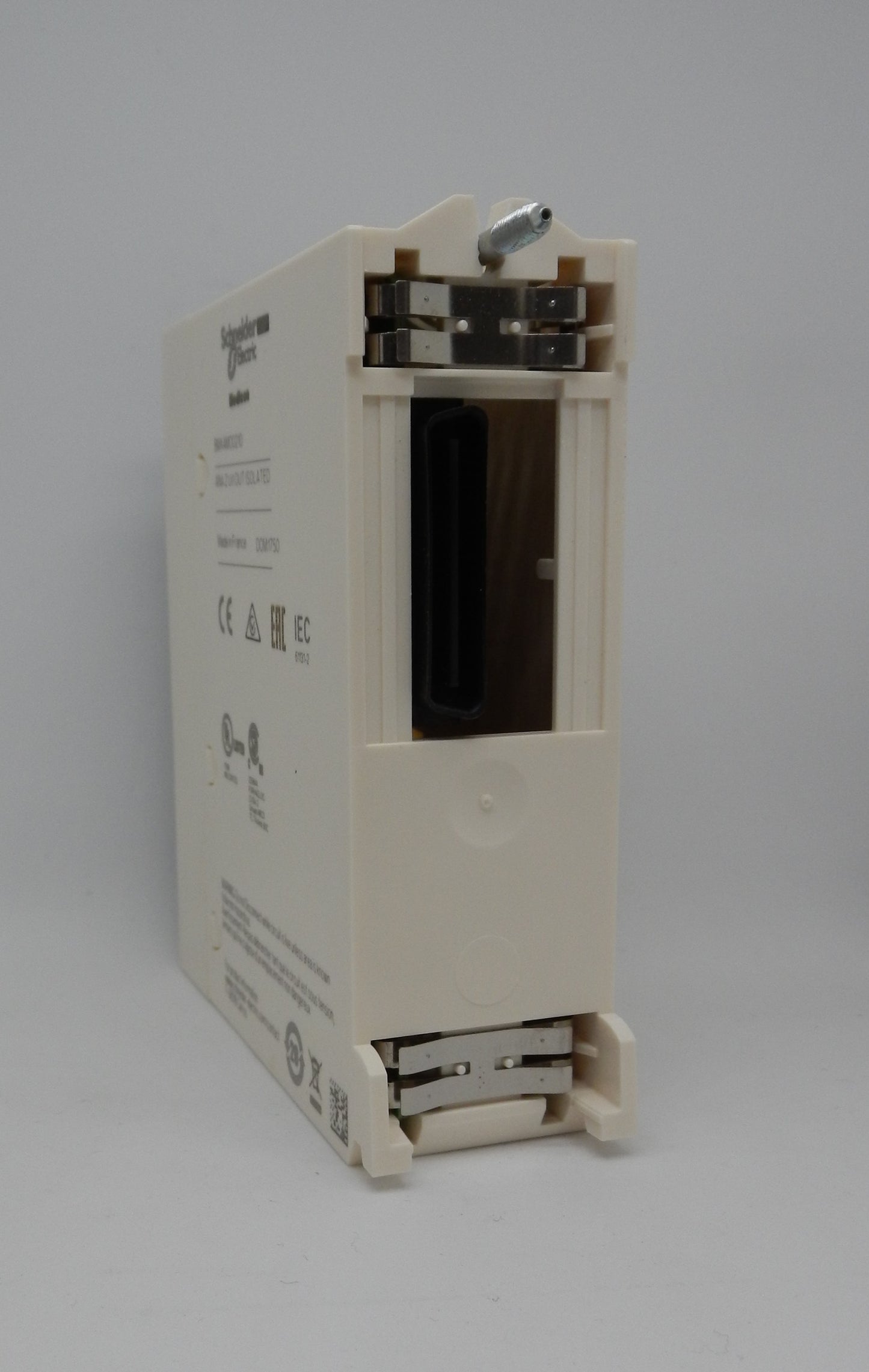

BMXAMO0210 Schneider Electric Modicon M340/X80 2-Channel Analog Output Module ±10V 0-20mA 4-20mA

Description:

• Genuine Schneider Electric Modicon X80 / M340 analog output module for industrial PLC and process automation applications
• Provides 2 isolated high-level analog output channels for precise control of field devices
• Supports configurable output ranges:
  • ±10 V
  • 0–20 mA
  • 4–20 mA
• High-resolution 15-bit + sign digital-to-analog conversion ensures accurate analog output performance
• Each output channel is electrically isolated to improve noise immunity and system reliability
• Compatible with Modicon M340, Modicon M580, and Modicon X80 automation platforms
• Supports configurable fallback mode and built-in diagnostics for improved system safety
• Requires a compatible 20-pin removable terminal block (sold separately)
• Ideal for process control, HVAC systems, manufacturing, water treatment, OEM machinery, and industrial automation
• Designed for installation on Modicon X80 backplanes with high reliability in demanding industrial environments.

Specifications:

• Manufacturer Name: Schneider Electric
• Part Number (MPN): BMXAMO0210
• Product Family: Modicon X80 / Modicon M340
• Product Type: Analog Output Module
• Number of Outputs: 2
• Output Type: Isolated High-Level Analog Outputs
• Output Signal Ranges:
  • ±10 V
  • 0–20 mA
  • 4–20 mA
• Resolution: 15 Bits + Sign
• Channel Isolation:
  • 1400 VDC Channel-to-Ground
  • 1400 VDC Channel-to-Bus
  • 750 VDC Channel-to-Channel
• Output Level: High Level
• Load Impedance:
  • ≥1000 Ω (Voltage Output)
• Supply: Internal via PLC Rack
• Typical Power Consumption:
  • 2.1 W @ 24 VDC
• Maximum Power Consumption:
  • 2.8 W @ 24 VDC
• Connection: 20-pin removable terminal block (sold separately)
• Protection Rating: IP20
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5–95% Non-Condensing
• Certifications:
  • CE
  • UL
  • CSA
  • RCM
  • EAC
  • Marine Approved
• Applications:
  • Process Control
  • Industrial Automation
  • Water & Wastewater
  • HVAC Systems
  • OEM Machinery
  • Manufacturing Equipment
  • PLC Control Systems

Dimensions:

• Height: 100 mm (3.94 in)
• Width: 32 mm (1.26 in)
• Depth: 86 mm (3.39 in).

Weight:

• Approximate Weight: 0.144 kg (0.317 lb).
