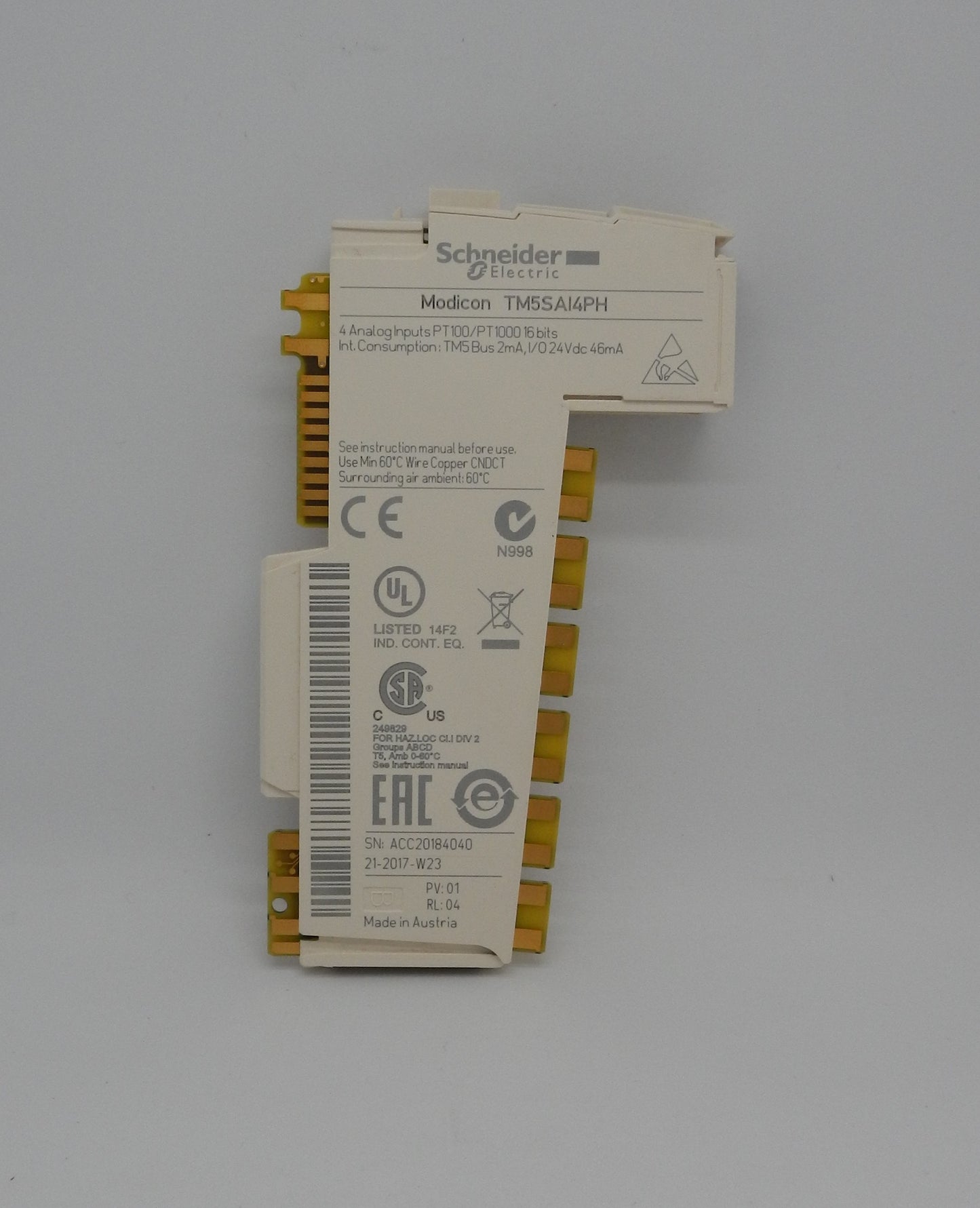

TM5SAI4PH Schneider Electric Modicon TM5 4-Channel Analog Temperature Input Module PT100/PT1000 16-Bit

Description:

• Genuine Schneider Electric Modicon TM5 analog temperature input module for industrial automation and machine control
• Provides 4 analog input channels for PT100 and PT1000 RTD temperature sensors
• High-resolution 16-bit analog conversion for accurate temperature measurement
• Supports temperature measurement from -200°C to +850°C
• Configurable for 2-wire or 3-wire RTD sensor wiring
• 0.1°C measurement resolution with high accuracy for demanding process applications
• Powered from the 24 VDC TM5 I/O bus and designed for Modicon TM5 distributed I/O systems
• LED indicators provide module power, diagnostics, and individual channel status
• DIN rail mounted with IP20 protection for industrial control panels
• Ideal for temperature monitoring in manufacturing, packaging, process control, HVAC, material handling, and OEM machinery
• Compatible with Modicon M258 logic controllers and LMC058 motion controllers.

Specifications:

• Manufacturer Name: Schneider Electric
• Part Number (MPN): TM5SAI4PH
• Product Series: Modicon TM5
• Product Type: Analog Temperature Input Module
• Number of Inputs: 4
• Input Type:
  • PT100 RTD
  • PT1000 RTD
• Analog Resolution: 16-Bit
• Temperature Measurement Range:
  • -200°C to +850°C
• Measurement Resolution: 0.1°C
• Measurement Accuracy: <0.037% Full Scale @ 25°C
• Wiring Configuration:
  • 2-Wire RTD
  • 3-Wire RTD
• Supply Voltage: 24 VDC
• Supply Voltage Range: 20.4 to 28.8 VDC
• Current Consumption:
  • 46 mA @ 24 VDC
  • 2 mA @ 5 VDC TM5 Bus
• Power Dissipation: 1.11 W Maximum
• Isolation:
  • 500 Vrms AC between channel and bus
  • No isolation between channels
• Mounting Type: 35 mm DIN Rail
• Ingress Protection: IP20
• Operating Temperature: 0°C to +60°C
• Compatible Controllers:
  • Modicon M258
  • Modicon LMC058
• Certifications:
  • CE
  • cULus
  • CSA
  • IEC 61131-2
  • UL 508
• Applications:
  • Industrial Automation
  • Temperature Monitoring
  • Process Control
  • HVAC Systems
  • Packaging Machinery
  • OEM Equipment
  • Material Handling Systems

Dimensions:

• Height: 99 mm (3.9 in)
• Width: 75 mm (2.95 in)
• DIN rail mounted IP20 modular I/O design.

Weight:

• Approximate Weight: 0.025 kg (0.06 lb).
