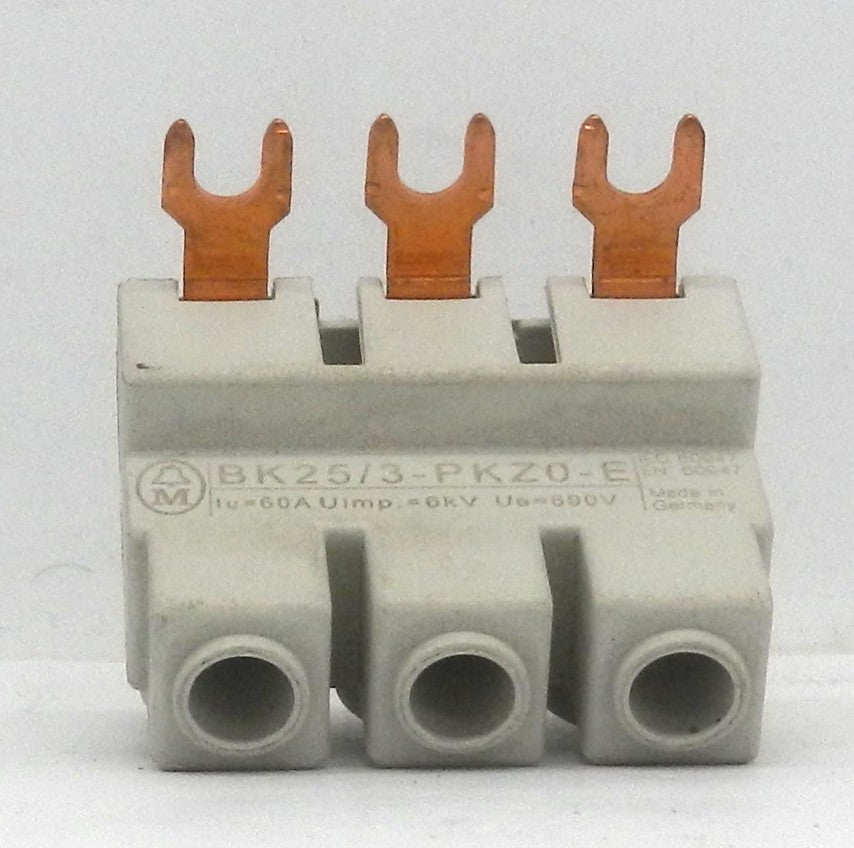

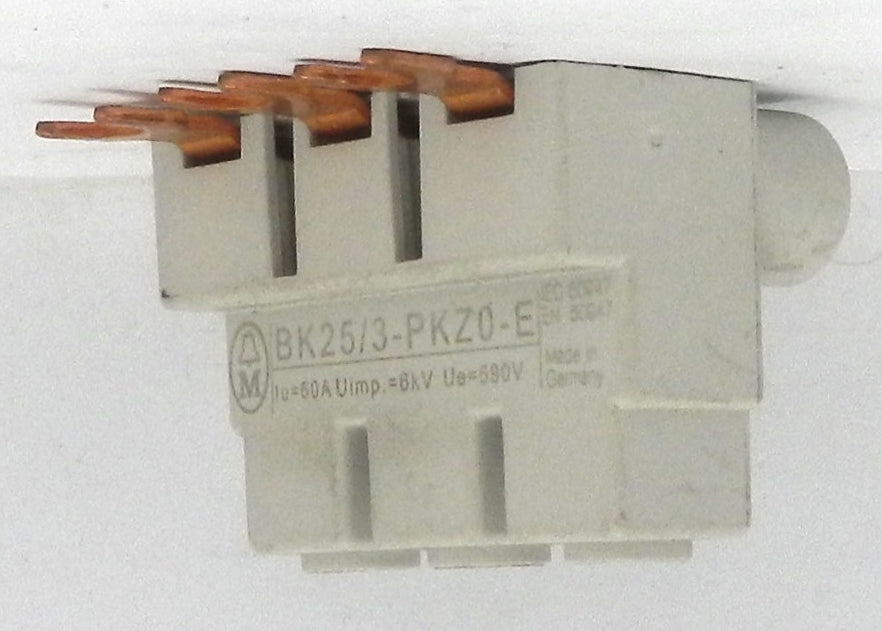

BK25/3-PKZ0-E Moeller Incoming Terminal Adapter 63A for PKZM0/PKE Type E

Description:

• Incoming terminal adapter designed for Moeller and Eaton PKZM0/PKE motor protection circuit breakers
• Provides a safe and reliable incoming power connection for Type E applications
• Rated for up to 63A and suitable for industrial motor control systems
• Compatible with three-phase commoning links for efficient power distribution
• Finger-safe design helps protect against accidental contact during installation and operation
• Heavy-duty industrial construction for long service life in demanding environments
• Supports DIN rail mounted motor protection assemblies
• Suitable for control panels, motor starters, switchgear, and industrial automation systems
• Designed for PKZM0 and PKE motor-protective circuit breakers
• Certified to UL, CSA, CE, and IEC standards for industrial use.

Specifications:

• Manufacturer Name: Moeller (Eaton)
• Part Number (MPN): BK25/3-PKZ0-E
• Product Type: Incoming Terminal Adapter
• Alternate Part Number: XTPAXLSA
• Rated Current: 63 A
• Rated Operational Voltage: 690 VAC
• Number of Poles: 3 Pole
• Maximum Conductor Size: 25 mm²
• Mounting Type: For PKZM0/PKE Motor Protection Circuit Breakers
• Compatibility: PKZM0 and PKE Series
• Standards: UL 508, CSA C22.2 No. 14, IEC 60947-4-1, CE
• Application: Motor Protection, Industrial Control Panels, Power Distribution, and Automation Systems

Dimensions:

• 3-pole terminal adapter configuration
• Compact overlapping mounting design for three-phase commoning links

Weight:

• Approximate Weight: 0.05 kg (0.11 lb)
