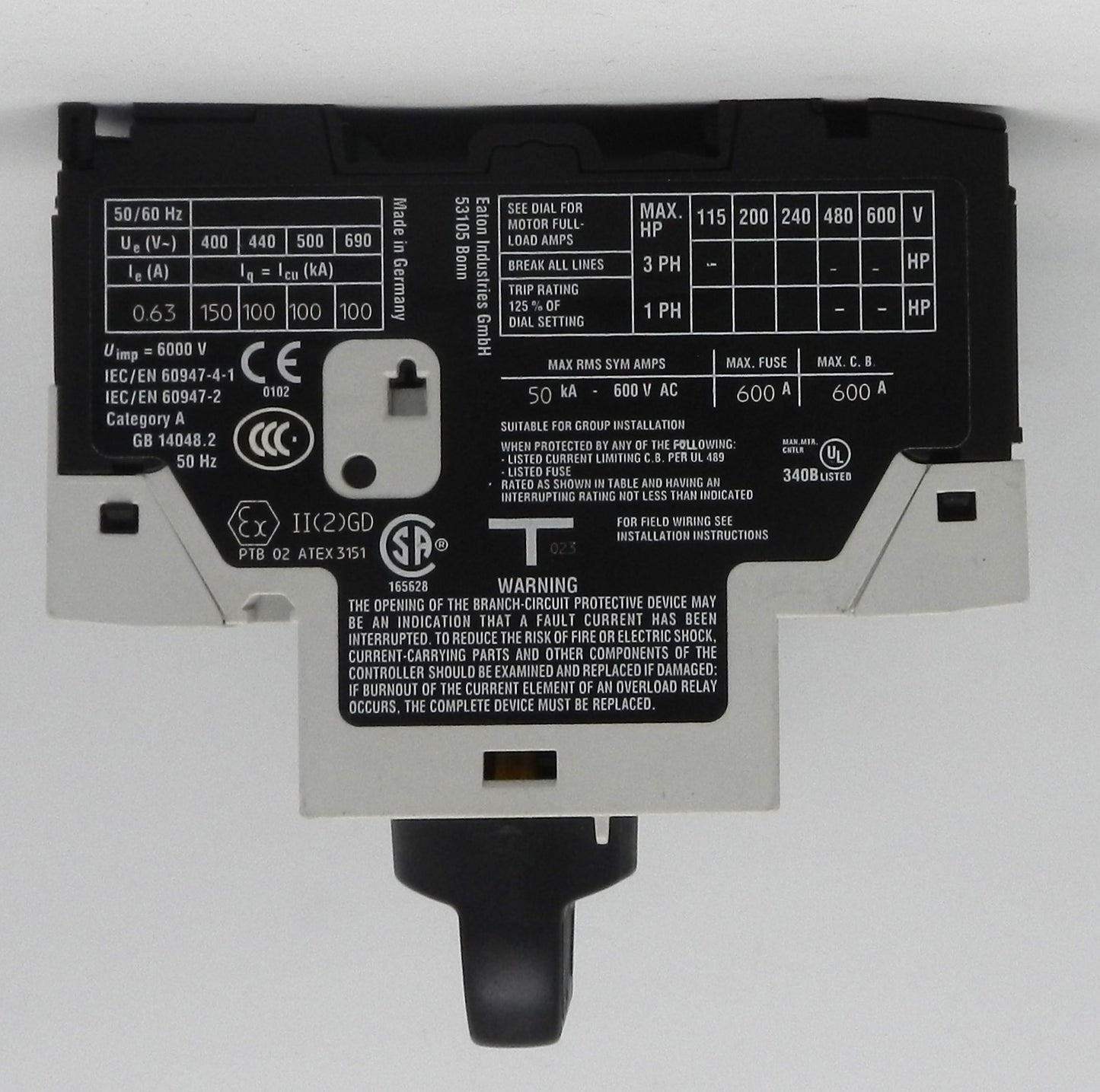

PKZM0-0.63-SC + NHI11-PKZ0-C Moeller Eaton Motor Protection Circuit Breaker with Auxiliary Contact 0.4-0.63A

Description:

• Genuine Moeller by Eaton motor protection starter assembly including the PKZM0-0.63-SC motor-protective circuit breaker and NHI11-PKZ0-C auxiliary contact block
• Adjustable thermal overload protection range of 0.4–0.63 A for small three-phase motors
• Fixed magnetic short-circuit protection for reliable motor and branch circuit protection
• 3-pole motor protection circuit breaker with screw terminals on the line side and spring-cage terminals on the load side
• Includes NHI11-PKZ0-C front-mounted auxiliary contact with 1 Normally Open (1 NO) and 1 Normally Closed (1 NC) contact
• Manual ON/OFF control with trip indication and reset function
• Phase-failure sensitive protection helps prevent motor damage caused by phase loss
• DIN rail or panel mounting for easy installation in industrial control panels
• Ideal for motor starters, conveyors, pumps, compressors, HVAC systems, OEM machinery, and industrial automation applications.

Specifications:

PKZM0-0.63-SC Motor Protection Circuit Breaker

• Manufacturer Name: Eaton (Moeller)
• Part Number (MPN): PKZM0-0.63-SC
• Product Series: PKZM0
• Product Type: Motor Protection Circuit Breaker
• Number of Poles: 3
• Adjustable Current Range: 0.4–0.63 A
• Rated Operational Voltage: 690 VAC
• Rated Operational Power:
  • 0.12 kW @ 400V AC
  • 0.25 kW @ 690V AC
• Rated Continuous Current (Ie): 0.63 A
• Connection:
  • Line Side: Screw Terminal
  • Load Side: Spring-Cage Terminal
• Mounting: DIN Rail / Panel Mount
• Degree of Protection: IP20
• Standards:
  • IEC/EN 60947
  • UL 60947-4-1
  • CSA
  • CE
• Phase Failure Sensitive: Yes

NHI11-PKZ0-C Auxiliary Contact

• Manufacturer Name: Eaton (Moeller)
• Part Number (MPN): NHI11-PKZ0-C
• Product Type: Auxiliary Contact Block
• Contact Configuration:
  • 1 Normally Open (1 NO)
  • 1 Normally Closed (1 NC)
• Rated Current: 5 A
• Rated Voltage:
  • 600 VAC
  • 250 VDC
• Front-Mounted Design
• Compatible With: PKZM0 Series Motor Protection Circuit Breakers

Applications:

• Motor Protection
• Industrial Automation
• Machine Control
• Conveyor Systems
• Pumps
• Compressors
• HVAC Equipment
• OEM Control Panels

Dimensions:

• PKZM0-0.63-SC
  • Height: 93 mm (3.66 in)
  • Width: 45 mm (1.77 in)
  • Depth: 76 mm (2.99 in)

Weight:

• PKZM0-0.63-SC: Approx. 0.244 kg (0.54 lb)
• Complete Assembly (with NHI11-PKZ0-C): Approx. 0.29 kg (0.64 lb)
