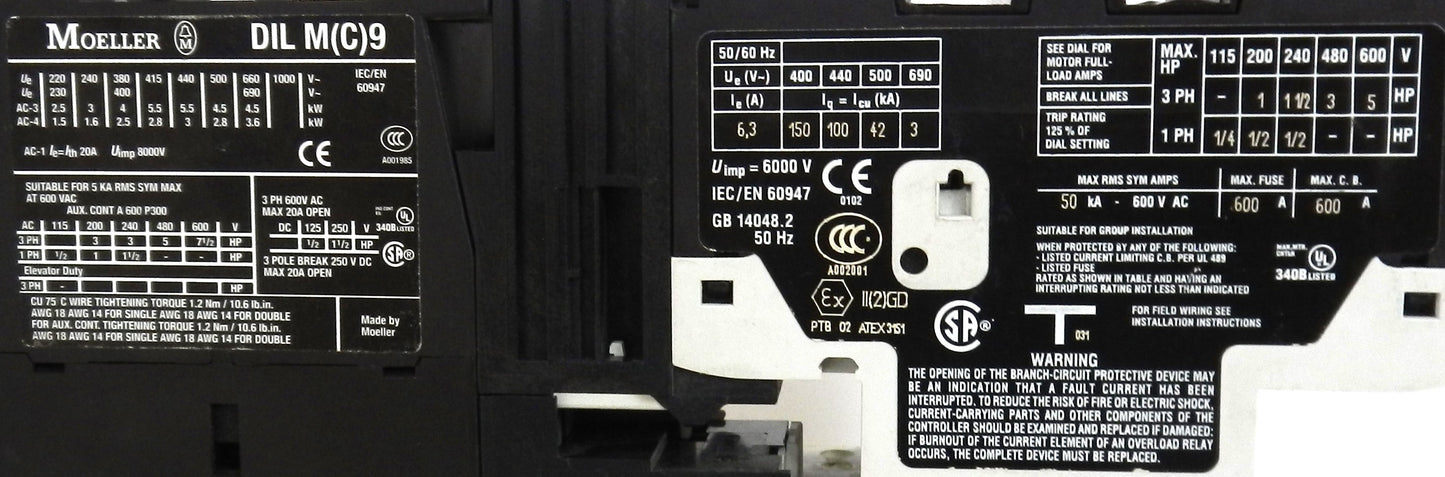

PKZM0-6.3 + DILM(C)9 Eaton Moeller Manual Motor Starter & 9A Contactor Combination Starter 4–6.3A

Description:

• Genuine Eaton Moeller motor starter combination consisting of a PKZM0-6.3 manual motor protector and DILM(C)9 IEC contactor
• Provides motor overload, short-circuit, and manual disconnect protection combined with remote motor switching
• PKZM0-6.3 features an adjustable thermal overload setting from 4 to 6.3A, ideal for protecting three-phase motors up to 2.2 kW at 400V AC
• DILM(C)9 IEC contactor is rated for 9A AC-3 motor switching and is commonly paired with PKZM0 motor protectors in direct-on-line (DOL) starter assemblies
• Phase-failure sensitive motor protection helps prevent damage caused by single phasing
• Compact modular design simplifies installation and maintenance
• DIN rail or panel mounting for industrial control panels
• Suitable for conveyor systems, pumps, compressors, fans, packaging machinery, HVAC equipment, OEM machinery, and industrial automation
• Compatible with Eaton PKZM0 accessories including auxiliary contacts, shunt trips, undervoltage releases, and enclosure kits
• Built to IEC/EN 60947 standards for reliable industrial motor protection and control

Specifications:

PKZM0-6.3 Manual Motor Starter

• Manufacturer Name: Eaton Moeller
• Part Number: PKZM0-6.3
• Product Type: Manual Motor Starter / Motor Protection Circuit Breaker
• Adjustable Current Range: 4–6.3 A
• Rated Operational Voltage: 690 VAC
• Rated Motor Power:
  • 2.2 kW @ 400V AC
  • 3.0 kW @ 500V AC
  • 4.0 kW @ 690V AC
• Short-Circuit Breaking Capacity:
  • 150 kA @ 400V AC
• Protection Functions:
  • Thermal Overload Protection
  • Magnetic Short-Circuit Protection
  • Phase Failure Protection
• Terminal Type: Screw Terminals
• Mounting: DIN Rail or Panel Mount
• Standards:
  • IEC/EN 60947
  • UL
  • CSA
  • CE

DILM(C)9 Contactor

• Manufacturer Name: Eaton Moeller
• Part Number: DILM(C)9
• Product Type: IEC Contactor
• Rated Operational Current (AC-3): 9 A
• Number of Main Poles: 3
• Mounting Type: DIN Rail or Panel Mount
• Compatible with PKZM0 Manual Motor Protectors
• Suitable for Direct-On-Line (DOL) Motor Starter Assemblies

Applications

• Motor Starters
• Pump Control
• Conveyor Systems
• HVAC Equipment
• Compressors
• Fans
• Industrial Automation
• Machine Control
• OEM Equipment

Dimensions:

• PKZM0-6.3
  • Height: 93 mm (3.66 in)
  • Width: 45 mm (1.77 in)
  • Depth: 76 mm (2.99 in)

Weight:

• PKZM0-6.3: Approx. 0.29 kg (0.64 lb)
• Complete Combination Starter: Approx. 0.55 kg (1.21 lb)
