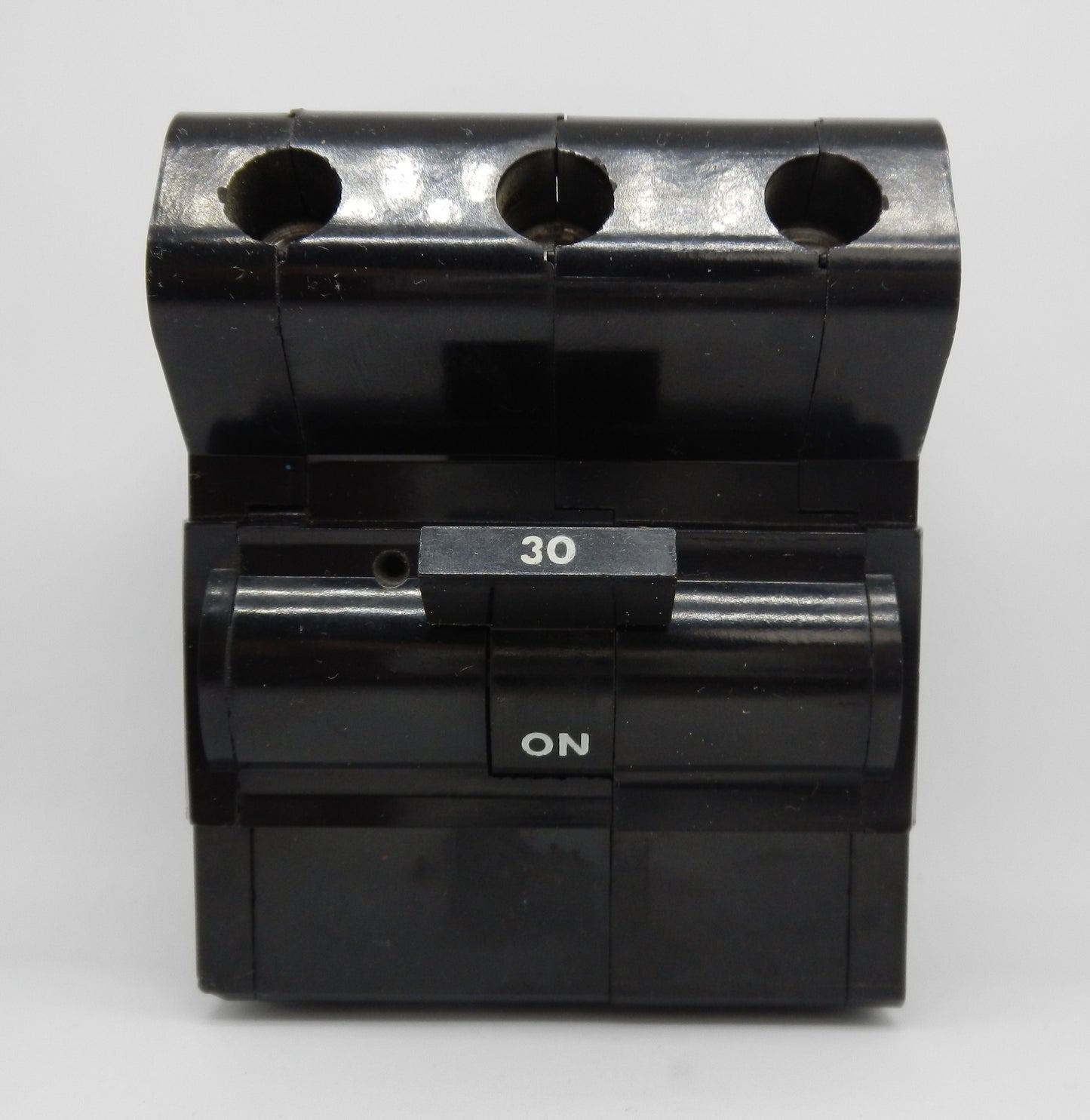

NA3P30 Federal Pioneer Stab-Lok 30A 3-Pole Type NB Miniature Circuit Breaker 240VAC Plug-In

Description:

• Genuine Federal Pioneer Stab-Lok miniature circuit breaker for residential, commercial, and light industrial electrical distribution systems
• Provides 3-pole, 30 Amp overcurrent and short-circuit protection
• Designed for Type NB Federal Pioneer Stab-Lok load centers and panelboards
• Rated for 240 VAC operation with a 10 kA interrupting capacity
• Thermal-magnetic trip mechanism delivers dependable overload and short-circuit protection
• Plug-in mounting allows quick installation into compatible Federal Pioneer panels
• Screw terminal connections provide secure wiring
• Color-coded handle for easy circuit identification
• CSA approved and manufactured to Canadian electrical standards
• Ideal for branch circuit protection, three-phase electrical systems, commercial buildings, industrial panels, and electrical distribution applications.

Specifications:

• Manufacturer Name: Federal Pioneer (Schneider Electric)
• Part Number (MPN): NA3P30
• Product Series: Stab-Lok
• Product Type: Miniature Circuit Breaker (MCB)
• Breaker Type: Type NB
• Number of Poles: 3
• Rated Current: 30 A
• Rated Voltage: 240 VAC
• Interrupt Rating: 10 kA
• Trip Type: Thermal-Magnetic
• Mounting Type: Plug-In
• Terminal Type: Screw Connector
• Wire Size:
  • AWG 14 to AWG 1/0 Copper
• Standards:
  • CSA Approved
• Applications:
  • Branch Circuit Protection
  • Three-Phase Systems
  • Commercial Electrical Panels
  • Industrial Control Panels
  • Electrical Distribution
  • Load Centers

Dimensions:

• Standard Stab-Lok 3-pole plug-in circuit breaker form factor.
• Designed for installation in compatible Federal Pioneer Type NB load centers and panelboards.

Weight:

• Approximate Weight: 0.91 kg (2.0 lb).
