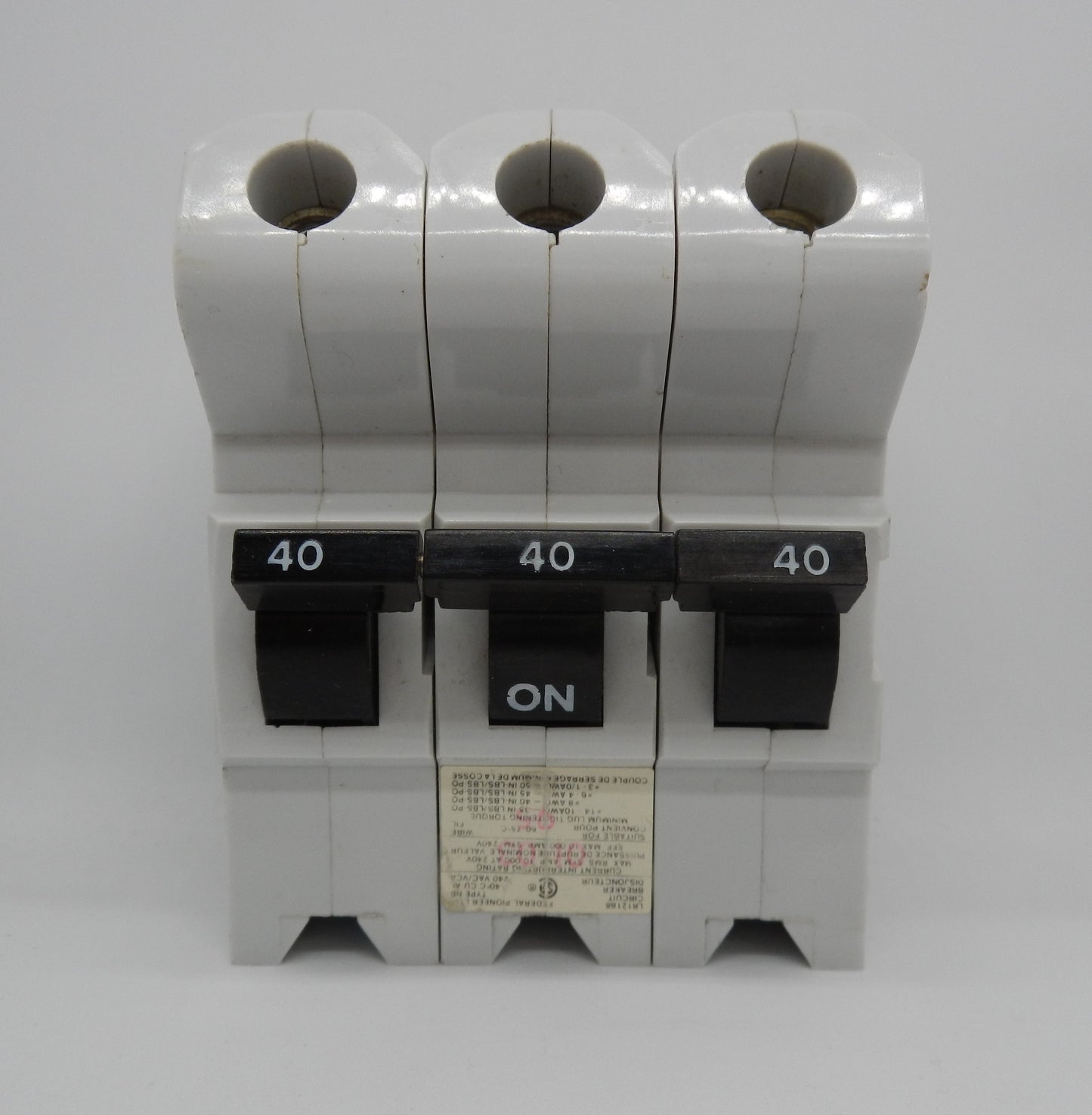

NA3P40 Federal Pioneer Stab-Lok 40A 3-Pole Type NA Bolt-On Circuit Breaker 240VAC 10kA

Description:

• Genuine Federal Pioneer Stab-Lok miniature circuit breaker for residential and commercial electrical distribution panels
• Provides 3-pole, 40 Amp overcurrent and short-circuit protection
• Type NA Bolt-On mounting for compatible Federal Pioneer Stab-Lok load centers
• Rated for 240 VAC three-phase electrical systems
• Thermal-magnetic trip mechanism delivers reliable overload and short-circuit protection
• 10 kA interrupting capacity for dependable fault protection
• Heavy-duty screw terminal connections accept AWG 14 to AWG 1/0 copper or aluminum conductors
• Designed for use in Federal Pioneer Stab-Lok panelboards and load centers
• Ideal for commercial buildings, industrial facilities, distribution panels, HVAC equipment, and motor branch circuits
• CSA approved and manufactured by Schneider Electric / Federal Pioneer for Canadian Stab-Lok systems.

Specifications:

• Manufacturer Name: Federal Pioneer (Schneider Electric)
• Part Number (MPN): NA3P40
• Product Series: Stab-Lok
• Product Type: Miniature Circuit Breaker
• Number of Poles: 3
• Rated Current: 40 A
• Rated Voltage: 240 VAC
• Interrupt Rating: 10 kA
• Mounting Type: Bolt-On (Type NA)
• Trip Type: Thermal-Magnetic
• Electrical Connection: Screw Terminals
• Wire Size:
  • AWG 14 to AWG 1/0 Copper
  • AWG 14 to AWG 1/0 Aluminum
• Compatible Panels: Federal Pioneer Stab-Lok Load Centers
• Standards:
  • CSA Approved
• Applications:
  • Electrical Distribution
  • Commercial Buildings
  • Industrial Panels
  • HVAC Equipment
  • Motor Branch Circuits
  • Three-Phase Power Systems

Dimensions:

• Standard 3-pole Stab-Lok bolt-on breaker form factor for Federal Pioneer load centers.

Weight:

• Approximate Weight: 0.91 kg (2.0 lb).
