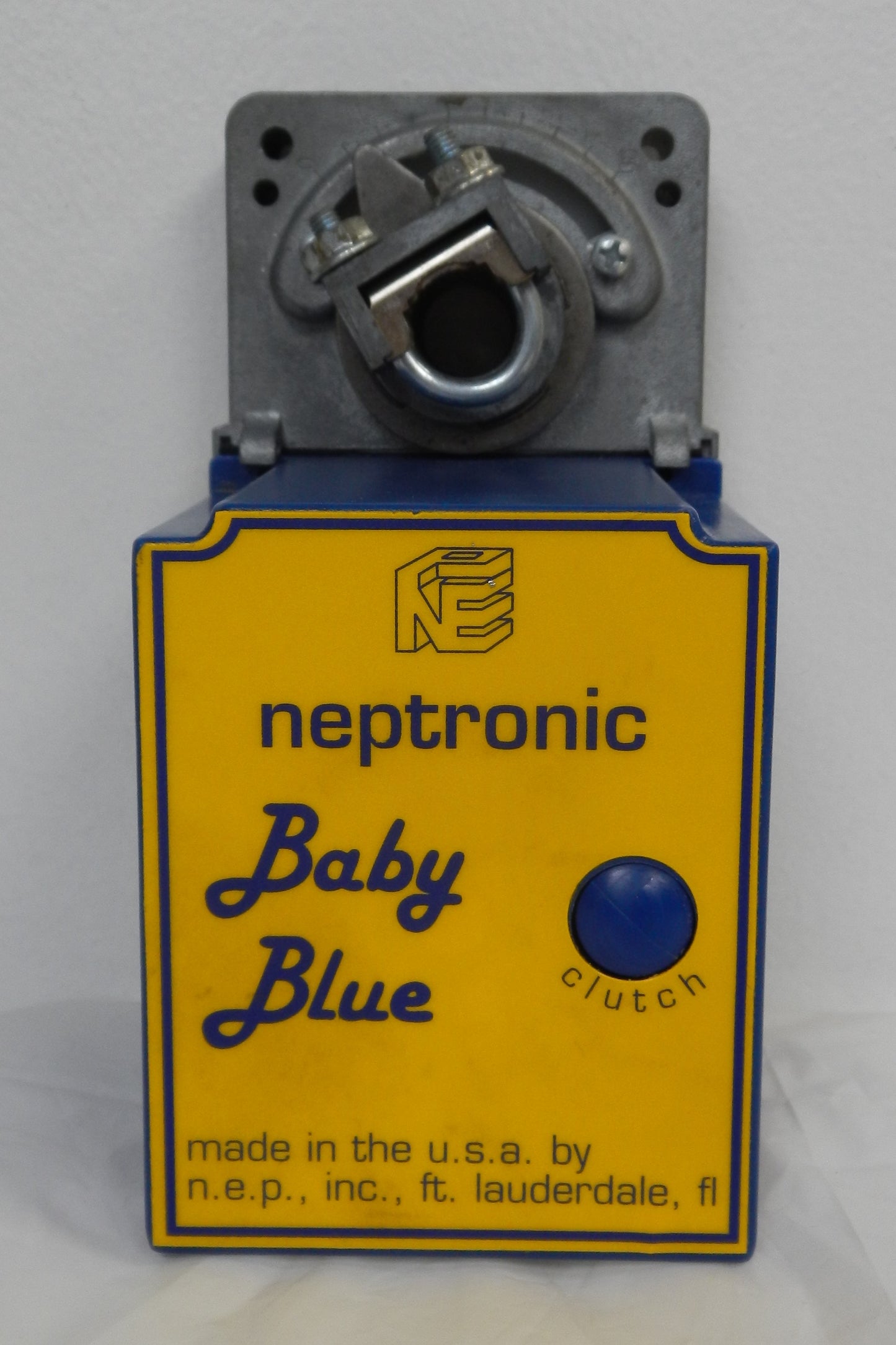

BBTHV1180 Neptronic High Voltage Spring Return Damper Actuator 120VAC 50 in-lb BT180

Description:

• Genuine Neptronic high-voltage spring return damper actuator for HVAC and building automation systems
• Provides 50 in-lb (5.6 Nm) torque for reliable control of air dampers
• Operates on 110–130 VAC, 50/60 Hz power supply
• Features spring return (Enerdrive® fail-safe system) that automatically returns the damper to its default position upon power loss
• Includes two built-in auxiliary switches for position indication and control integration
• 90° adjustable rotation with reversible clockwise (CW) or counterclockwise (CCW) operation
• External clutch allows manual positioning without removing the actuator
• Maintenance-free design with integrated position indicator
• Ideal for HVAC dampers, air handling units (AHUs), ventilation systems, rooftop units, and building automation applications
• Also identified as BT180 in Neptronic's updated product numbering.

Specifications:

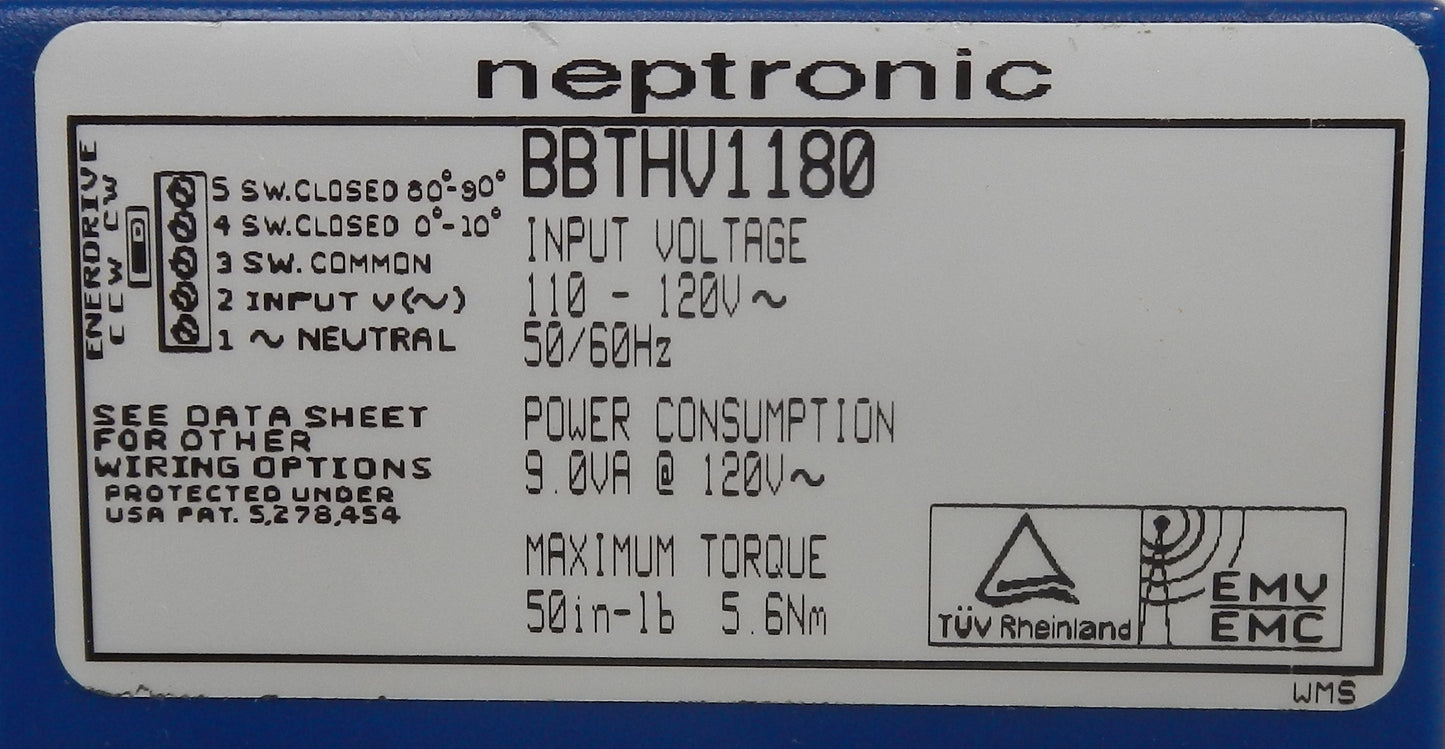

• Manufacturer Name: Neptronic
• Part Number (MPN): BBTHV1180
• Current Model Number: BT180
• Product Type: Spring Return Damper Actuator
• Torque: 50 in-lb (5.6 Nm)
• Power Supply: 110–130 VAC, 50/60 Hz
• Control Signal: 2-Wire / 2-Position
• Fail Safe: Enerdrive® Spring Return
• Auxiliary Switches: 2
• Rotation Angle: 0–90° Adjustable
• Rotation Direction:
  • Clockwise (CW)
  • Counterclockwise (CCW)
• Running Time: 20–35 Seconds (90°)
• Electrical Connection: 18 AWG Minimum
• Ambient Operating Temperature: -30°C to +50°C (-22°F to +122°F)
• Storage Temperature: -30°C to +50°C (-22°F to +122°F)
• Relative Humidity: 5–95% Non-Condensing
• Protection Rating: IP22 (NEMA Type 2 Equivalent)
• Applications:
  • HVAC Systems
  • Air Handling Units (AHUs)
  • Ventilation Dampers
  • Building Automation Systems
  • Commercial HVAC
  • Industrial HVAC Controls

Dimensions:

• Height: 167.5 mm (6.60 in)
• Width: 92.5 mm (3.64 in)
• Shaft Clamp Width: 38.1 mm (1.50 in)
• Depth: 96.8 mm (3.81 in)

Weight:

• Approximate Weight: 1.4 kg (3.0 lb).
