NPB22 NHD 22mm Industrial Push Button Switch Red Green Black White Momentary

Description:

• NHD NPB22 industrial push button switch designed for machine control and industrial automation applications

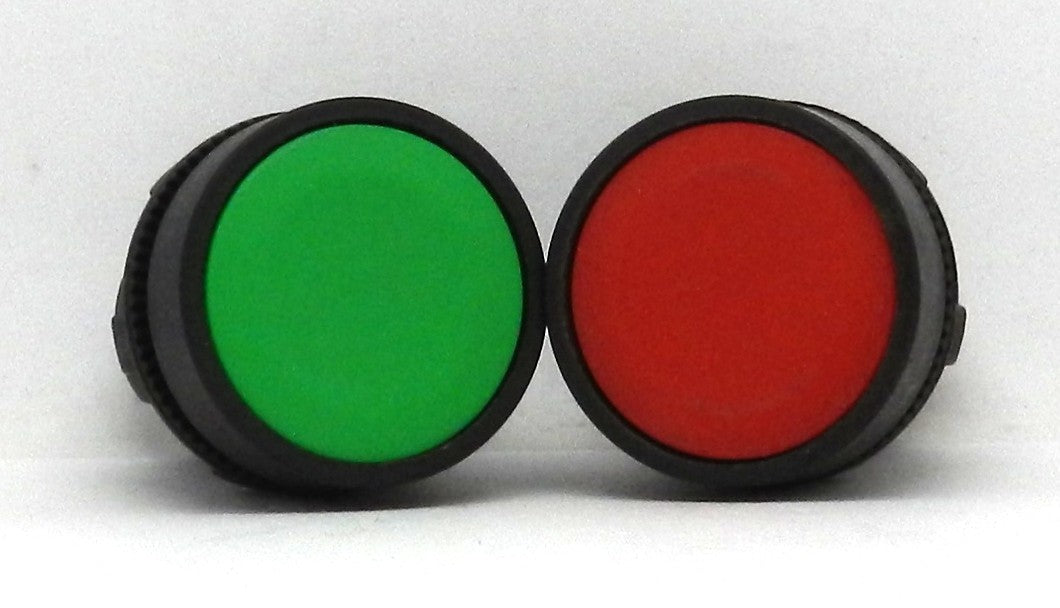

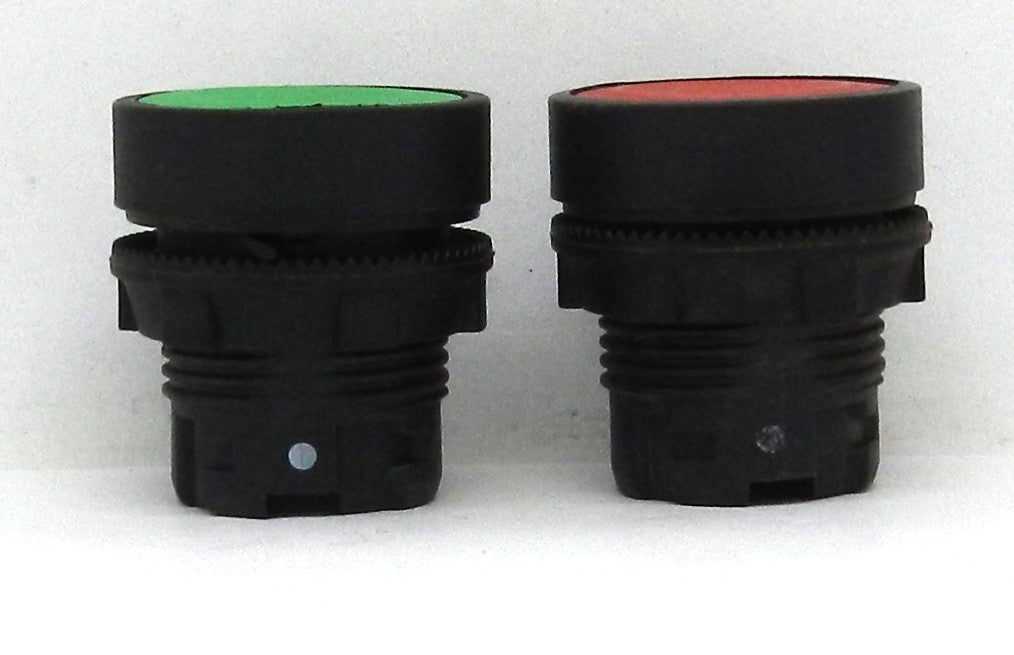

• Available in Red, Green, Black, or White button colors
• Standard 22 mm panel mounting with optional adapter for 30 mm mounting
• Momentary push button operation for reliable control of start, stop, and reset functions

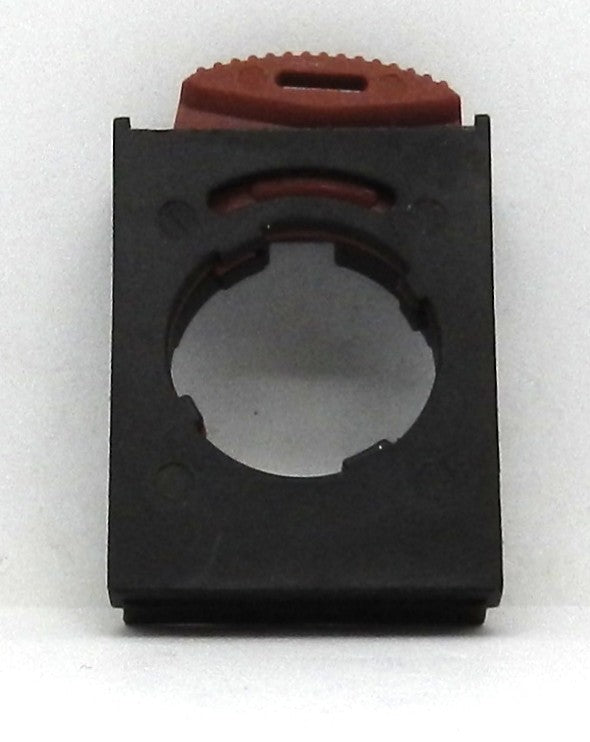

• Modular construction allows quick replacement of contact blocks and accessories
• Supports up to four contact block layers for expanded switching configurations
• Self-cleaning contact design improves reliability and extends service life
• Suitable for low-voltage, low-current applications down to 5V / 5mA
• Certified to international industrial standards including CE, TÜV, CSA, and cRUus
• Ideal for control panels, motor starters, PLC systems, OEM machinery, conveyors, and industrial automation.

Specifications:

• Manufacturer Name: NHD Industrial Co., Ltd.
• Part Number (MPN): NPB22
• Product Type: Industrial Push Button Switch
• Operation: Momentary
• Mounting Diameter: 22 mm (30 mm with optional adapter)
• Available Colors: Red, Green, Black, White

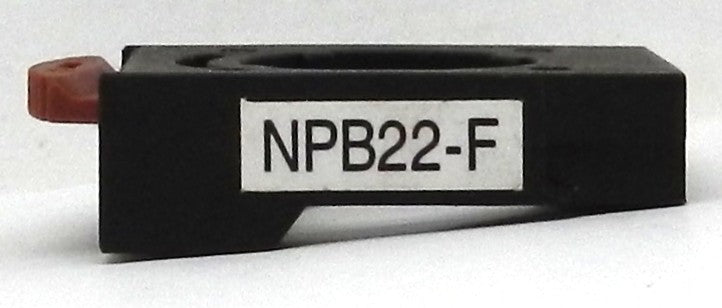

• Contact Block Compatibility: NPB22 Series Contact Blocks
• Maximum Contact Block Layers: 4
• Contact Design: Self-Cleaning
• Rated Contact Capacity:
  • 600 VAC, 5 A (Resistive)
  • 300 VAC, 10 A (Resistive)
• Minimum Switching Load: 5 V / 5 mA
• Mounting Type: Panel Mount
• Certifications: CE, TÜV, CSA, cRUus
• Application: Industrial Control Panels, Machine Controls, PLC Systems, Motor Control Centers, OEM Equipment, Factory Automation.

Dimensions:

• Panel Cutout: 22 mm
• Optional adapter available for 30 mm panel cutouts
• Modular industrial design with stackable contact blocks.

Weight:

• Approximate Weight: 0.10 kg (0.22 lb)
