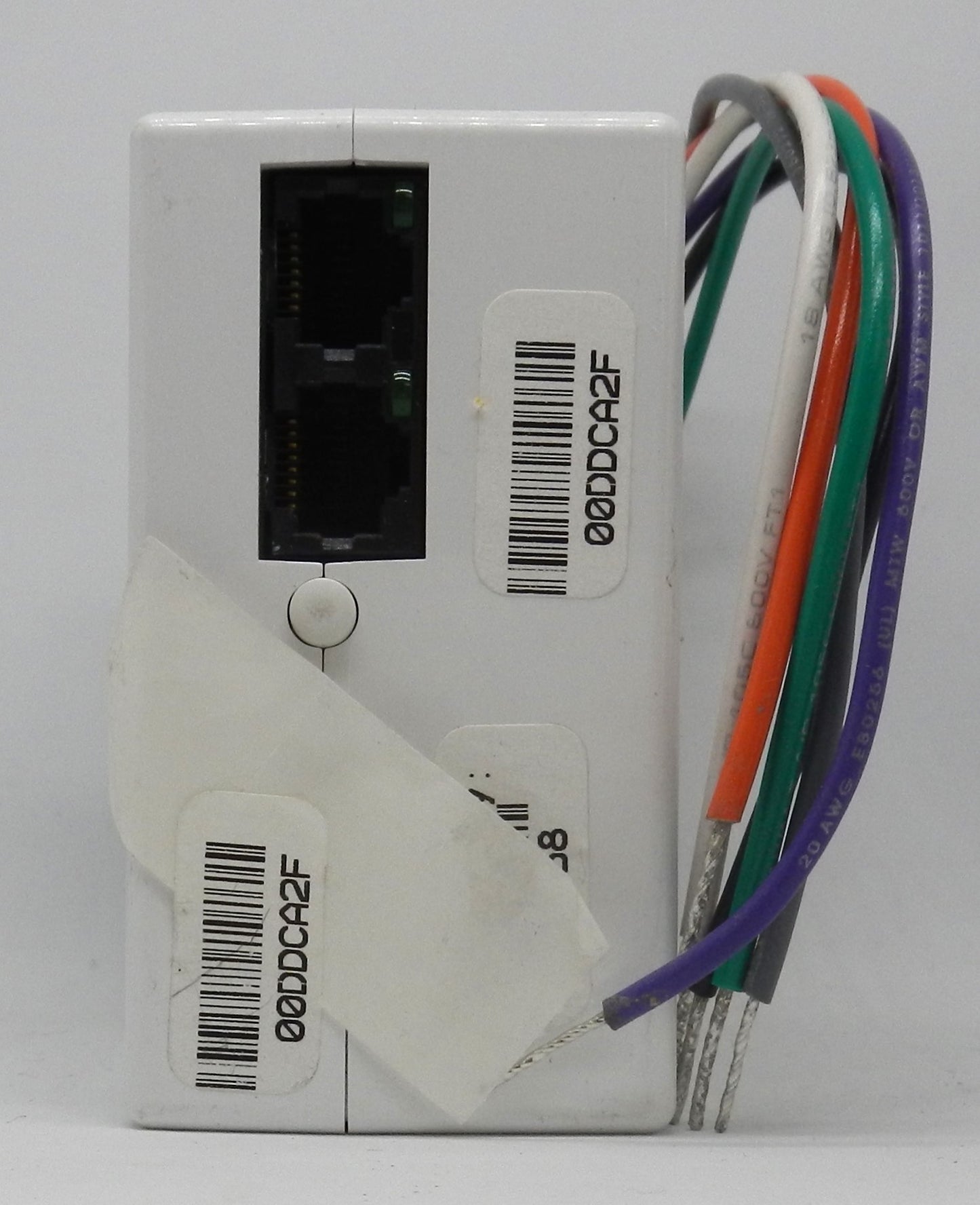

nPS 80 EZ nLight Acuity Brands 0-10V Dimming Power Pack 120/277VAC Lighting Control

Description:

• Genuine nLight by Acuity Brands intelligent dimming power pack for commercial and industrial lighting control systems
• Model nPS 80 EZ is designed to control LED luminaires equipped with compatible 0-10V dimming drivers
• Optimized for eldoLED 0-10V drivers
• Makes connected luminaires nLight-enabled, allowing addressable digital communication with compatible occupancy sensors, photocells, WallPods, and other nLight controls
• Provides 0-10V dimming control with up to 75 mA dimming sink current
• Supplies nLight bus power through two RJ45 network ports, approximately 40 mA per port / 80 mA total
• Supports remote configuration and firmware upgrades through compatible nLight systems
• Features convenient push-button programming
• Supports lumen management for maintaining consistent LED light output over the life of the lighting system
• Plenum rated for commercial building installations
• Mounts directly to a junction box or fixture through a 1/2-inch knockout
• Ideal for offices, warehouses, schools, healthcare facilities, retail spaces, manufacturing facilities, and commercial lighting automation systems.

Specifications:

• Manufacturer: Acuity Brands
• Brand: nLight
• Model / Part Number: nPS 80 EZ
• Series: NPS
• Product Type: Dimming Power Pack / Lighting Control Device
• Control Protocol: 0-10V
• Platform: nLight Wired
• Standard Input Voltage: 120/277 VAC, 50/60 Hz
• 347V Option: 120/347 VAC, 50/60 Hz
• Maximum Dimming Load: 75 mA, 0-10 VDC Sink
• nLight Bus Power:
  • Approximately 40 mA per RJ45 port
  • Approximately 80 mA total
• Network Connections: 2 × RJ45
• Mounting: 1/2 in knockout (7/8 in hole)
• Standard Color: White
• Emergency Version Color: Red
• Operating Temperature: -10°C to +50°C (14°F to 122°F)
• Relative Humidity: Up to 90%, Non-Condensing
• Plenum Rating: UL 2043
• Regulatory Listing: C-UL-US / UL
• RoHS Compliant: Yes
• A+ Capable: Yes
• Compatible Controls:
  • nLight Occupancy Sensors
  • nLight Photocells
  • nLight WallPods
  • Compatible nLight Network Devices
• Applications:
  • Commercial Lighting Control
  • LED Dimming Systems
  • Building Automation
  • Offices
  • Warehouses
  • Manufacturing Facilities
  • Schools
  • Healthcare Facilities
  • Retail Lighting.

Dimensions:

• Height: 3.38 in (85.9 mm)
• Width: 2.53 in (64.3 mm)
• Depth: 1.83 in (46.5 mm)
• Dimensions exclude the 1/2-inch chase nipple.

Weight:

• Approximate Weight: 6 oz (0.375 lb / 0.17 kg).
