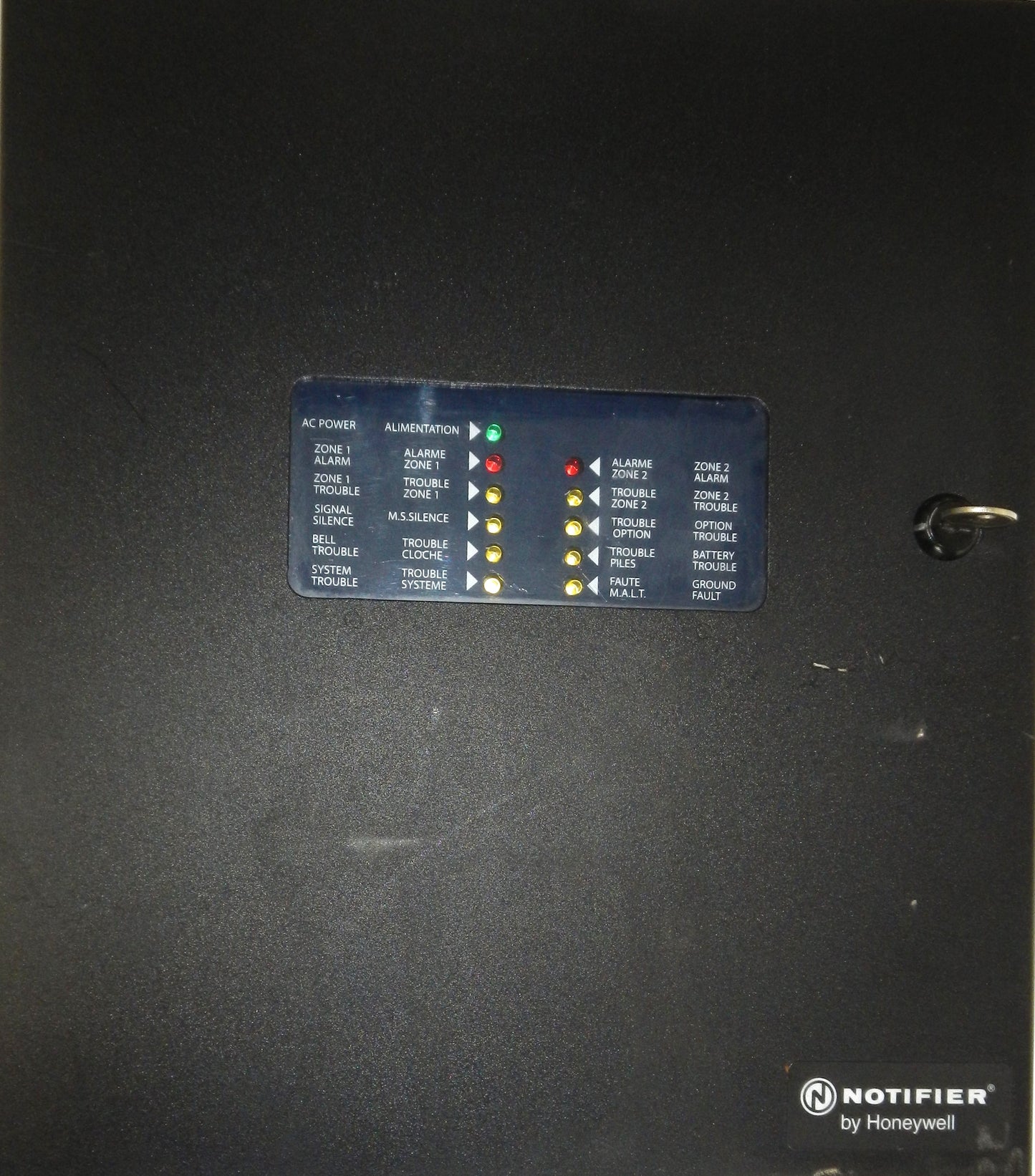

CFP-2401B NOTIFIER Canada Fire-Lite 1-Zone Conventional Fire Alarm Control Panel 120VAC

Description:

• Genuine NOTIFIER Canada / Fire-Lite conventional fire alarm control panel for commercial, industrial, and institutional applications
• 1-zone Class B (Style B) conventional Fire Alarm Control Panel (FACP)
• Operates on 120 VAC, 60 Hz, 0.5 Amp input power
• Supports two-wire smoke detectors and normally open initiating devices
• Integrated Class B Notification Appliance Circuit (NAC) rated at 1.25 A
• Built-in 24 VDC battery charger supports up to 7 Ah backup batteries
• Includes Form-C Alarm and Trouble relays for remote monitoring and auxiliary functions
• Resettable 24 VDC four-wire smoke detector power output (85 mA)
• Features LED indicators for AC Power, Alarm, Trouble, Bell Trouble, Battery Trouble, Ground Fault, and Zone Silence
• Lockable steel enclosure suitable for surface or semi-flush mounting
• Meets ULC requirements for conventional fire alarm systems in Canada
• Ideal for small commercial buildings, retail stores, offices, warehouses, schools, and institutional facilities.

Specifications:

• Manufacturer Name: NOTIFIER Canada / Fire-Lite (Honeywell)
• Part Number (MPN): CFP-2401B
• Product Type: Conventional Fire Alarm Control Panel
• Number of Zones: 1
• Zone Type: Class B (Style B)
• Input Voltage: 120 VAC
• Frequency: 60 Hz
• Input Current: 0.5 A
• Notification Appliance Circuit (NAC): 1 Class B
• NAC Output: 1.25 A
• Resettable Detector Power: 24 VDC, 85 mA
• Battery Charger Capacity: Up to 7 Ah
• Alarm Relay: Form-C
• Trouble Relay: Form-C
• Compatible Devices:
  • Two-wire smoke detectors
  • Normally open contact devices
• Mounting: Surface or Semi-Flush
• Enclosure: Lockable Steel Cabinet
• Standards: ULC Listed
• Applications:
  • Commercial Buildings
  • Industrial Facilities
  • Schools
  • Retail Stores
  • Warehouses
  • Institutional Buildings

Dimensions:

• Height: 368 mm (14.5 in)
• Width: 318 mm (12.5 in)
• Depth: 73 mm (2.9 in)

Weight:

• Approximate Weight: 4.0 kg (8.8 lb).
