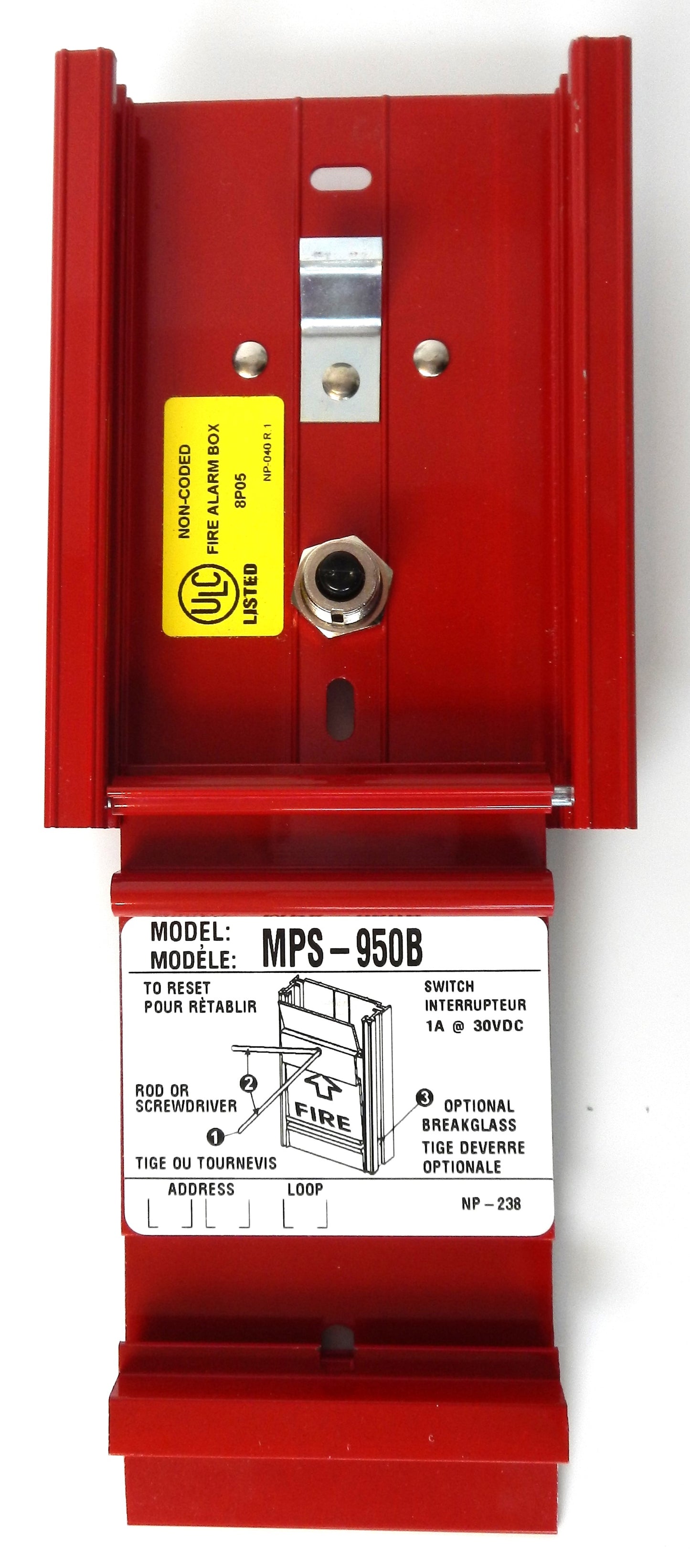

MPS-950B NOTIFIER Non-Coded Single-Stage Manual Fire Alarm Pull Station

Description:

• Genuine NOTIFIER manual fire alarm pull station for commercial and industrial fire alarm systems
• Non-coded, single-stage manual pull station with normally open contacts
• Durable extruded aluminum construction with a red baked enamel finish for long service life
• Low-profile design with bilingual operating instructions for easy identification and operation
• Standard single-gang mounting for quick installation in new or existing systems
• Can be converted from single-action to double-action using the optional MPS-DALK conversion kit
• Resettable from the front using a 1/8-inch screwdriver
• Compatible with optional NBS-950 surface-mount back box
• Ideal for commercial buildings, schools, hospitals, industrial facilities, offices, and fire alarm control systems
• ULC Listed for Canadian fire alarm installations.

Specifications:

• Manufacturer Name: NOTIFIER (Honeywell)
• Part Number (MPN): MPS-950B
• Product Type: Manual Fire Alarm Pull Station
• Operation: Single-Stage
• Contact Type: Normally Open (N.O.)
• Switch Rating:
  • 1 A @ 30 VDC
  • 0.1 A @ 125 VAC
• Mounting Type:
  • Standard Single-Gang Electrical Box
  • Optional NBS-950 Surface Mount Box
• Construction: Extruded Aluminum
• Finish: Red Baked Enamel
• Reset Method: Front Reset with 1/8 in Screwdriver
• Optional Accessories:
  • MPS-DALK Double-Action Lever Kit
  • NBS-950 Surface Back Box
  • GL-004K Break Glass Rods
• Certification:
  • ULC Listed (S6919)
• Applications:
  • Fire Alarm Systems
  • Commercial Buildings
  • Industrial Facilities
  • Educational Institutions
  • Healthcare Facilities
  • Office Buildings
  • Warehouses

Dimensions:

• Height: 4.5 in (114.3 mm)
• Width: 3.5 in (88.9 mm)
• Depth: 0.75 in (19.1 mm)

Weight:

• Approximate Weight: 0.16 kg (0.35 lb).
