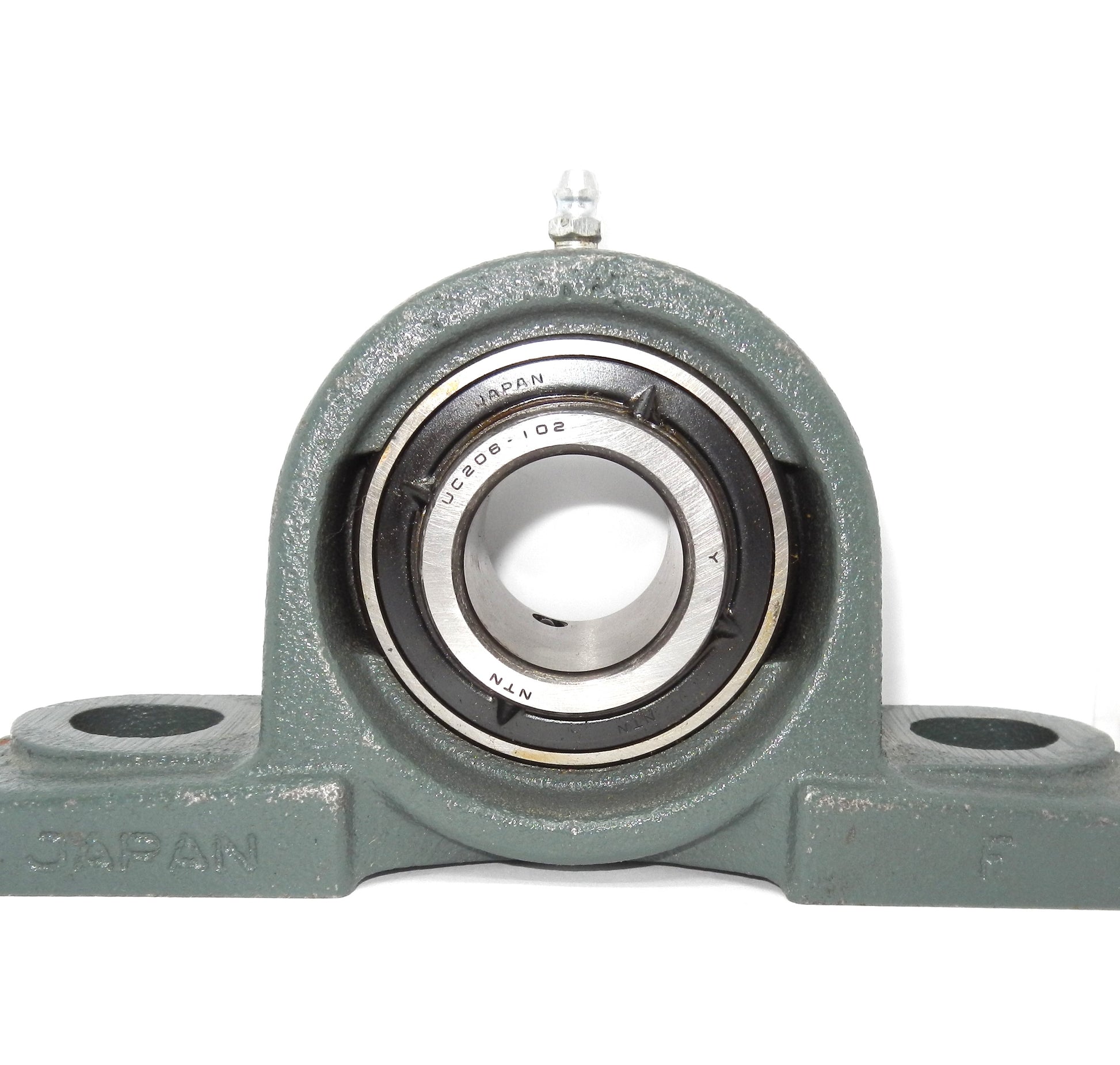

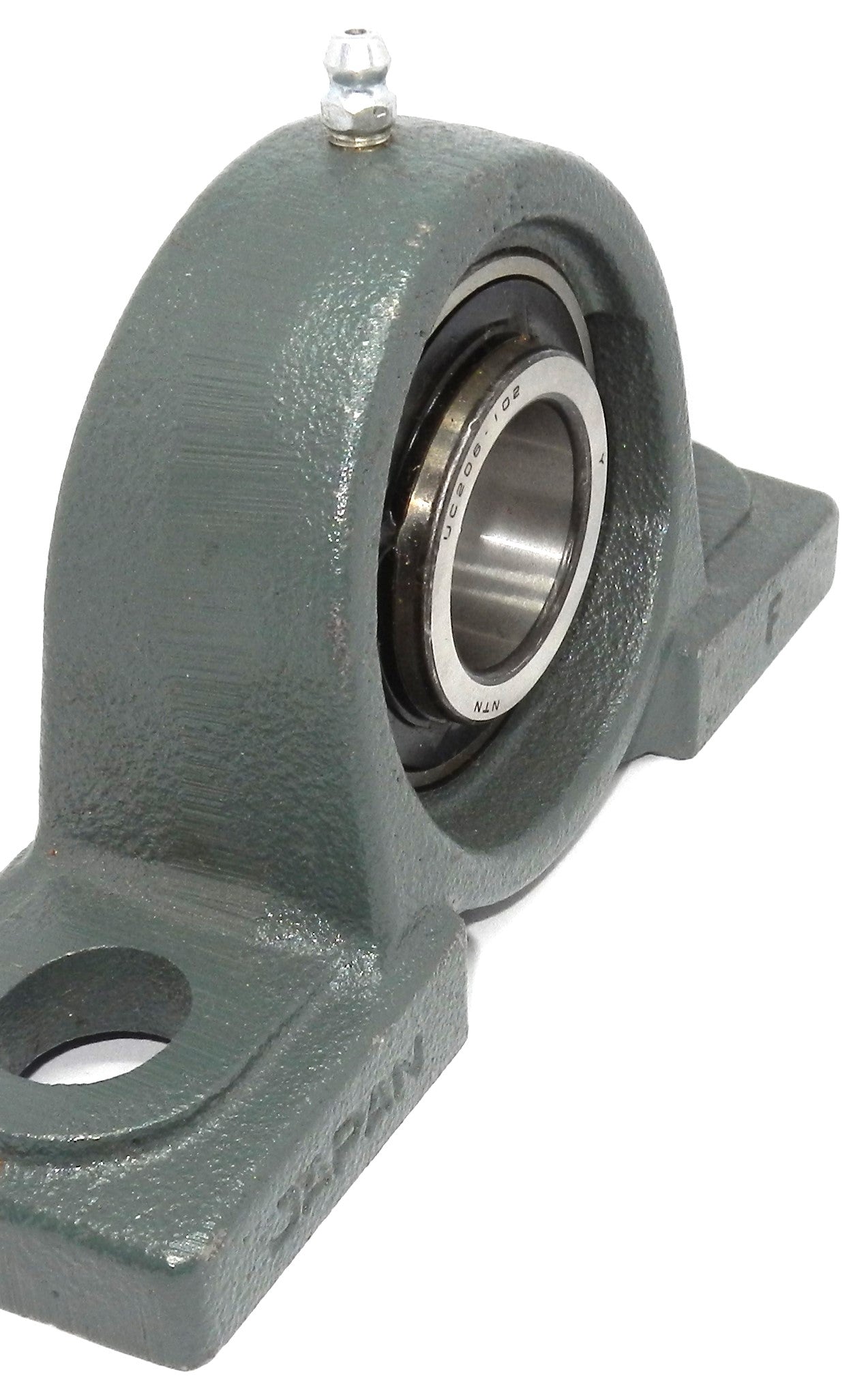

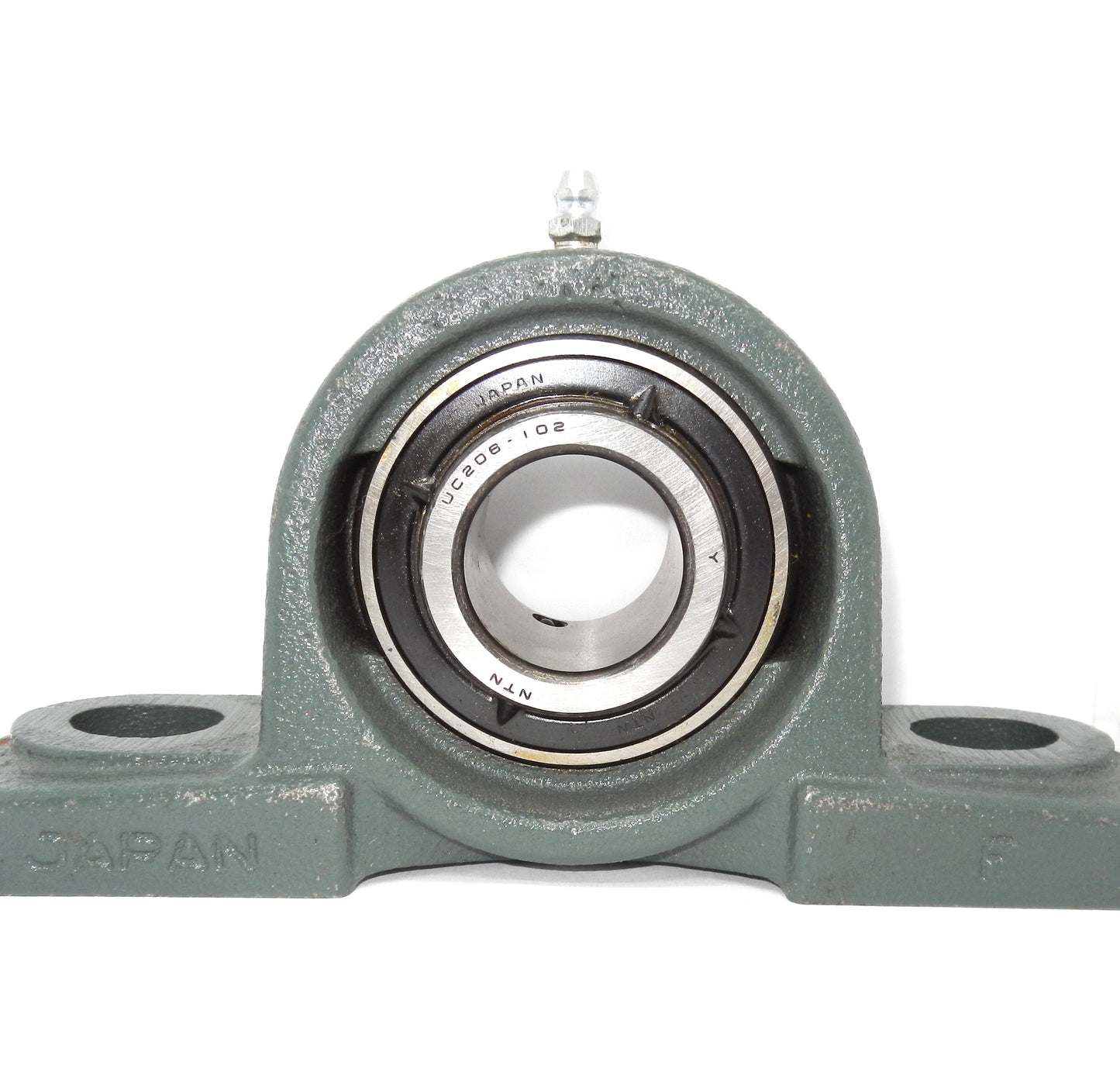

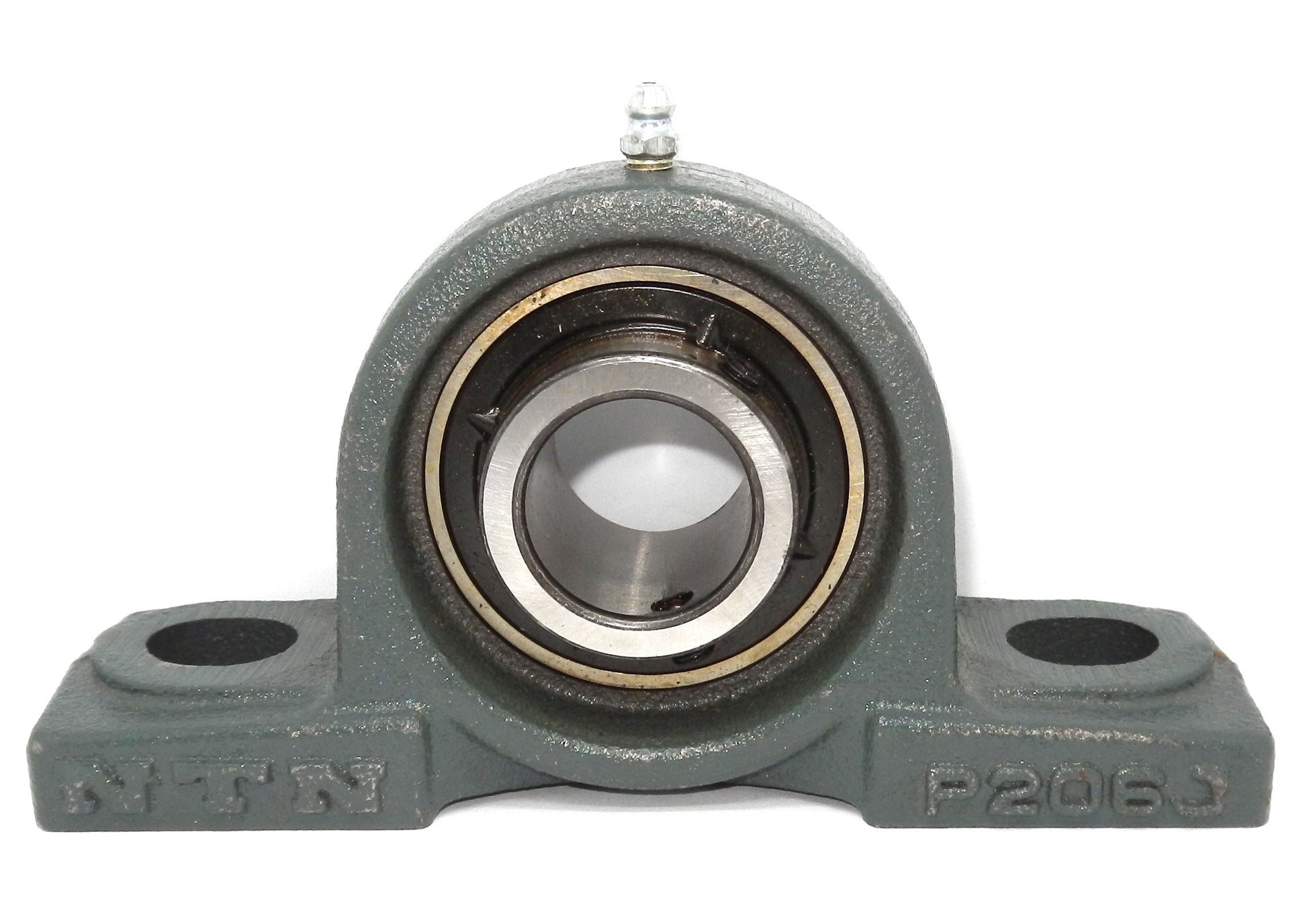

UCP206-102D1 NTN Pillow Block Bearing Unit 1-1/8" Bore Cast Iron Set Screw Mounted Bearing

Description:

• NTN UCP Series pillow block bearing unit designed for reliable shaft support in industrial and agricultural applications
• Features a 1-1/8 in. (28.575 mm) bore with a set screw locking collar for secure shaft attachment
• Heavy-duty cast iron housing provides excellent strength and durability
• Self-aligning insert bearing compensates for minor shaft misalignment during operation
• Relubricatable design with grease fitting extends bearing service life
• Contact seals with nitrile rubber help protect against dust, dirt, and moisture
• One-piece housing offers rigid mounting and dependable performance
• Maximum operating speed up to 4,900 RPM
• Ideal for conveyors, agricultural equipment, packaging machinery, material handling, fans, and general industrial machinery
• Manufactured by NTN for dependable mounted bearing performance.

Specifications:

• Manufacturer Name: NTN
• Part Number (MPN): UCP206-102D1
• Product Series: UCP
• Product Type: Pillow Block Bearing Unit
• Bearing Type: Ball Bearing
• Bearing Insert: UC206-102D1
• Housing Material: Cast Iron
• Housing Construction: One-Piece
• Locking Device: Set Screw
• Bore Diameter: 1.125 in. (28.575 mm)
• Bearing Width: 1.500 in. (38.1 mm)
• Dynamic Load Rating: 19.5 kN (4,384 lbf)
• Static Load Rating: 11.3 kN (2,540 lbf)
• Maximum Speed: 4,900 RPM
• Seal Type: Contact Seal
• Seal Material: Nitrile Rubber
• Lubrication: Relubricatable
• Operating Temperature: -40°C to +120°C (-40°F to +250°F)
• End Type: Open
• Application: Conveyors, Agricultural Equipment, Industrial Machinery, Material Handling Systems, Packaging Equipment, Fans, and Power Transmission Equipment.

Dimensions:

• Overall Length: 6.50 in. (165 mm)
• Bolt Hole Center Distance: 4.75 in. (121 mm)
• Shaft Center Height: 1.6875 in. (42.9 mm)
• Mounting Hole Diameter: 0.656 in. (17 mm)

Weight:

• Approximate Weight: 1.37 kg (3.02 lb).
