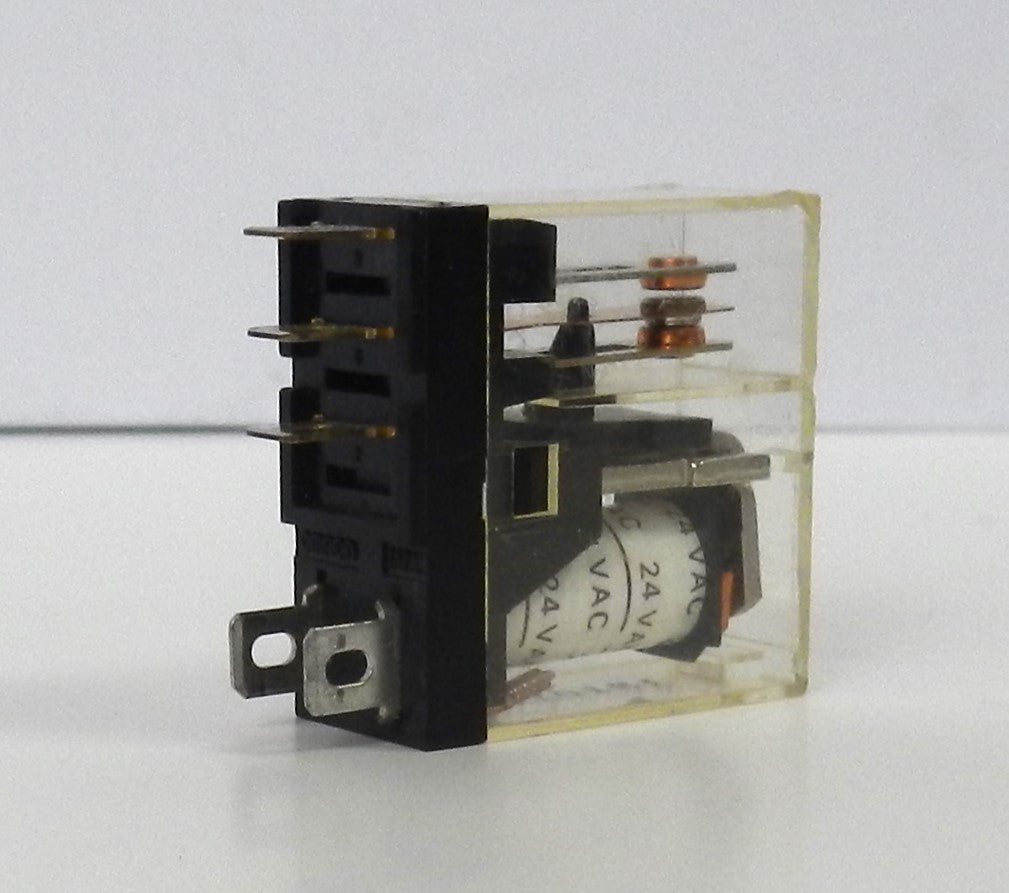

G2R-112S-V-US 24VAC Omron General Purpose Power Relay SPDT 10A Plug-In Relay

Description:

• Genuine Omron general-purpose power relay for industrial control and automation applications
• Features a 24 VAC coil with SPDT (1 Form C) contact configuration
• Rated for 10A switching capacity for reliable control of motors, solenoids, contactors, lighting, and industrial loads
• Plug-in design enables fast installation and easy relay replacement
• Built-in mechanical operation indicator and test button simplify maintenance and troubleshooting
• LED indicator version for quick visual confirmation of relay status
• Compact industrial relay suitable for control panels, PLC systems, HVAC equipment, machine automation, and OEM machinery
• Designed for long electrical and mechanical life in demanding industrial environments
• Part of the Omron G2R Series general-purpose relay family.

Specifications:

• Manufacturer Name: Omron
• Part Number (MPN): G2R-112S-V-US 24VAC
• Product Series: G2R
• Product Type: General Purpose Power Relay
• Contact Configuration: SPDT (1 Form C)
• Number of Poles: 1
• Coil Voltage: 24 VAC
• Coil Power Consumption: Approx. 0.9 VA @ 60 Hz
• Contact Rating:
  • 10 A @ 250 VAC
  • 10 A @ 30 VDC
• Contact Material: Silver Alloy
• Mounting Type: Plug-In Socket
• Terminal Style: Plug-In
• Mechanical Indicator: Yes
• Test Button: Yes
• LED Indicator: Yes
• Operating Temperature: -40°C to +70°C
• Electrical Life: 100,000 Operations (Rated Load)
• Mechanical Life: 10,000,000 Operations
• Standards:
  • UL Recognized
  • CSA Certified
  • CE
• Applications:
  • PLC Systems
  • Industrial Automation
  • HVAC Controls
  • Machine Control
  • Process Control
  • Packaging Equipment
  • OEM Machinery

Dimensions:

• Height: 35.5 mm (1.40 in)
• Width: 21.5 mm (0.85 in)
• Depth: 28 mm (1.10 in)

Weight:

• Approximate Weight: 0.035 kg (0.08 lb).
