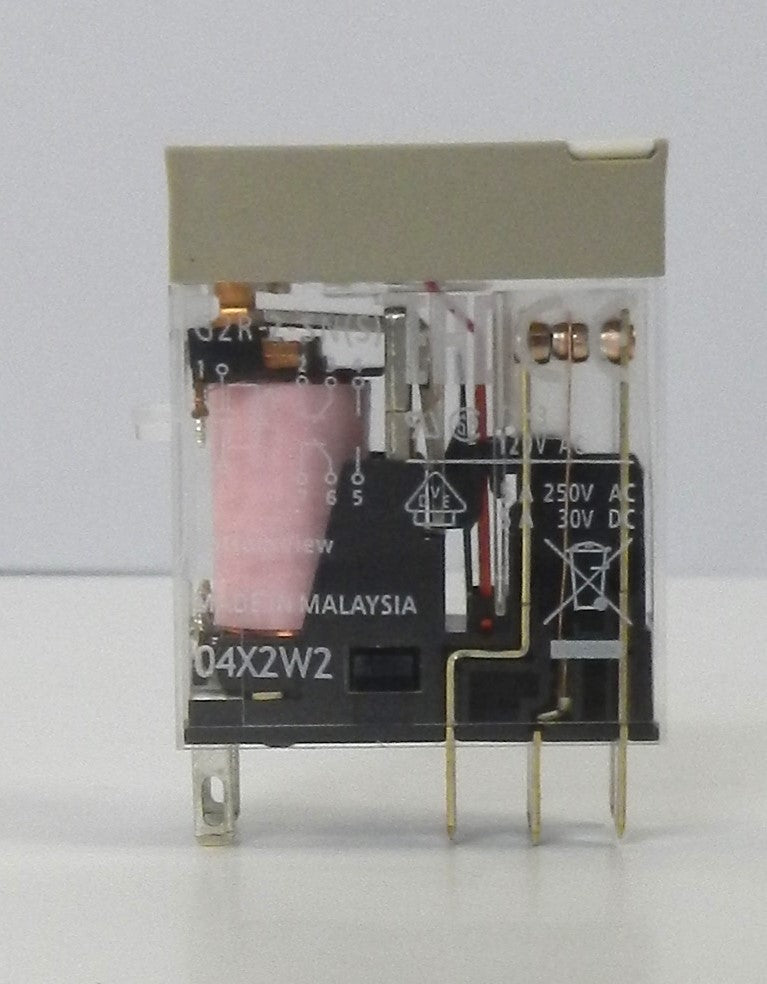

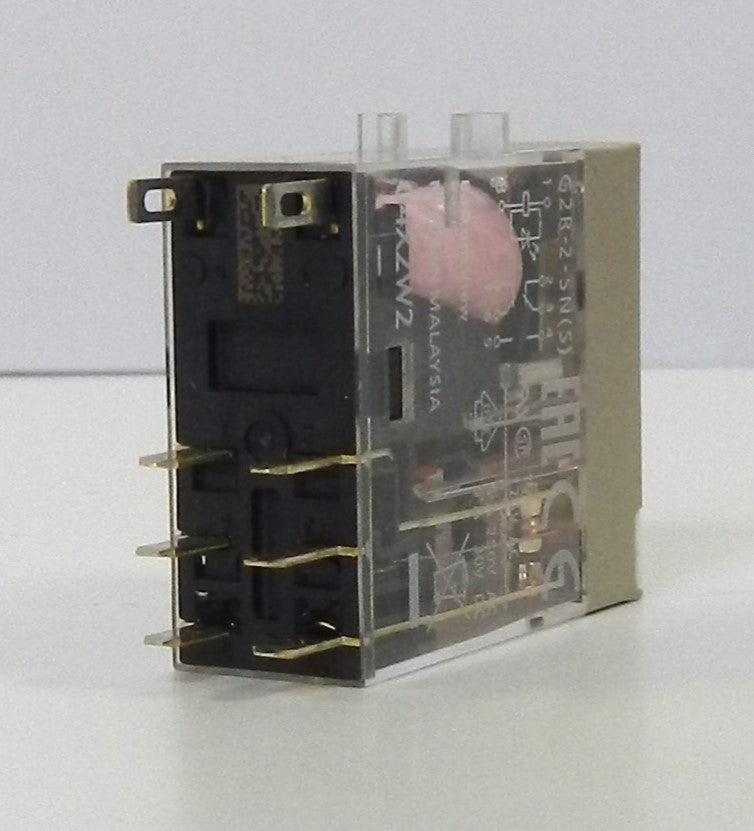

G2R-2-SN(S) 120VAC Omron DPDT General Purpose Plug-In Relay 5A with LED & Mechanical Indicator

Description:

• Genuine Omron G2R Series general-purpose plug-in relay for industrial control and automation applications
• Features DPDT (2 Form C / 2CO) contact configuration with a 5A switching capacity
• 120 VAC AC coil for dependable switching in industrial control circuits

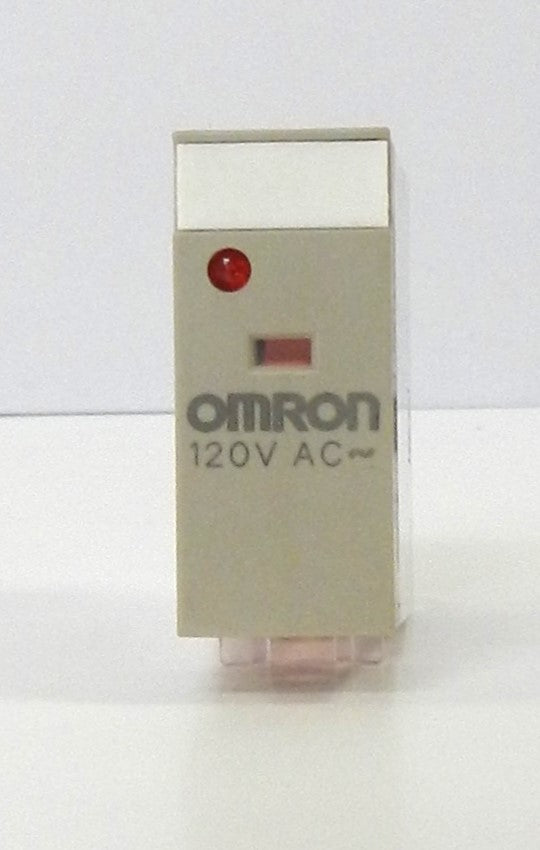

• Built-in LED indicator and mechanical operation indicator provide clear relay status indication
• Transparent housing allows easy visual inspection of contact operation
• Plug-in design enables quick installation and replacement using compatible 8-pin Omron sockets
• Compatible with P2RF-08-ESS, P2RF-08-PU, P2RF-08-S, and P2RFZ-08-E relay sockets
• Silver Tin Indium (AgSnIn) contacts offer excellent switching performance and long service life
• Ideal for PLC panels, machine automation, HVAC systems, OEM equipment, process control, and industrial interface applications.

Specifications:

• Manufacturer Name: Omron
• Part Number (MPN): G2R-2-SN(S) 120VAC
• Product Series: G2R
• Product Type: General Purpose Plug-In Relay
• Contact Configuration: DPDT (2 Form C / 2CO)
• Number of Poles: 2
• Coil Voltage: 120 VAC
• Coil Type: AC
• Rated Contact Current: 5 A
• Rated Load:
  • 5 A @ 250 VAC (Resistive)
  • 5 A @ 30 VDC (Resistive)
• Maximum Switching Voltage:
  • 380 VAC
  • 125 VDC
• Maximum Switching Current: 5 A
• Contact Material: AgSnIn (Silver Tin Indium)
• Terminal Type: 8-Pin Plug-In
• Mounting Method: Plug-In Socket
• Features:
  • LED Indicator
  • Mechanical Operation Indicator
  • Transparent Case
• Compatible Relay Sockets:
  • P2RF-08-ESS
  • P2RF-08-PU
  • P2RF-08-S
  • P2RFZ-08-E
• Operating Temperature: -40°C to +70°C
• Applications:
  • PLC Systems
  • Industrial Automation
  • Interface Relays
  • Control Panels
  • HVAC Equipment
  • OEM Machinery
  • Process Control

Dimensions:

• Height: 35.5 mm (1.40 in)
• Width: 21.5 mm (0.85 in)
• Depth: 28 mm (1.10 in).

Weight:

• Approximate Weight: 0.035 kg (0.08 lb).
