OMRON

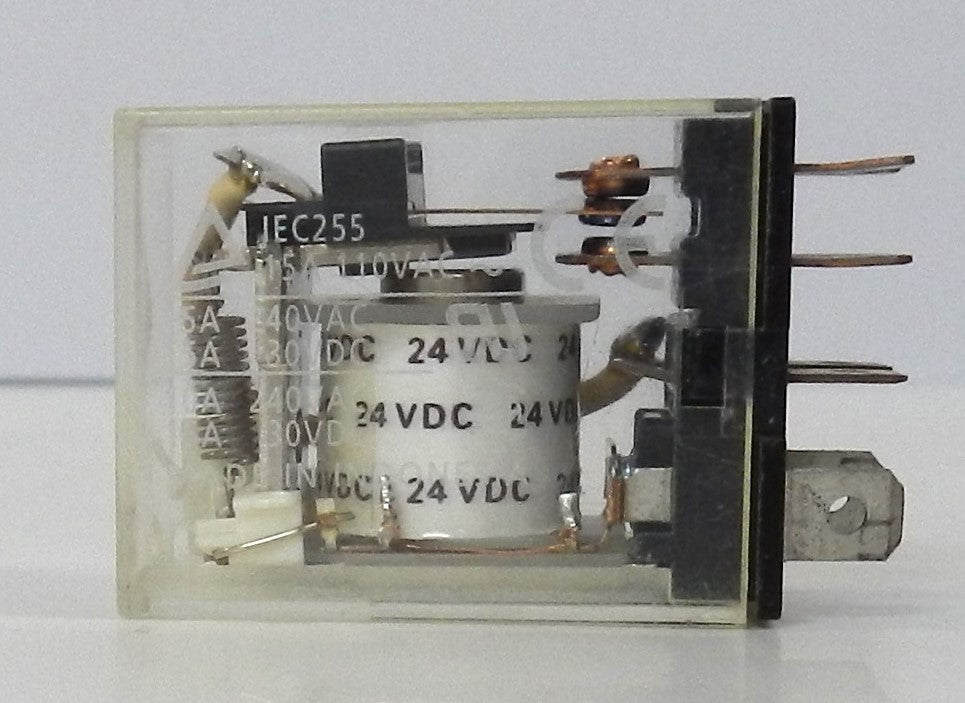

LY1N DC24 Omron General Purpose Power Relay SPDT 24VDC Coil 15A Plug-In with LED Indicator

$19.99 CAD

Sale Sold out

Style REFURBISH

Description:

Genuine Omron LY Series general-purpose power relay for industrial control and automation applications
Features 1 Form C (SPDT) contact configuration with a 24 VDC coil
Rated for 15A switching of resistive loads, making it suitable for motors, solenoids, control panels, and industrial equipment

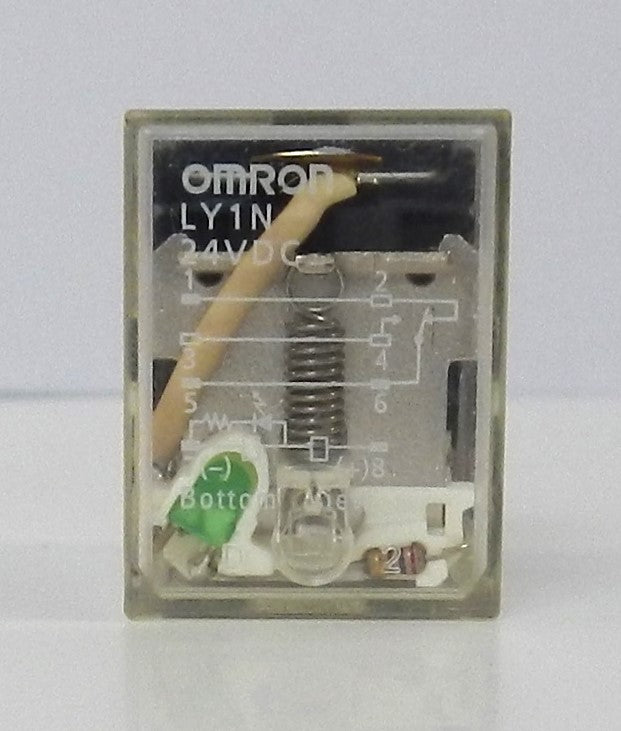

Built-in LED operation indicator provides clear visual indication of relay status

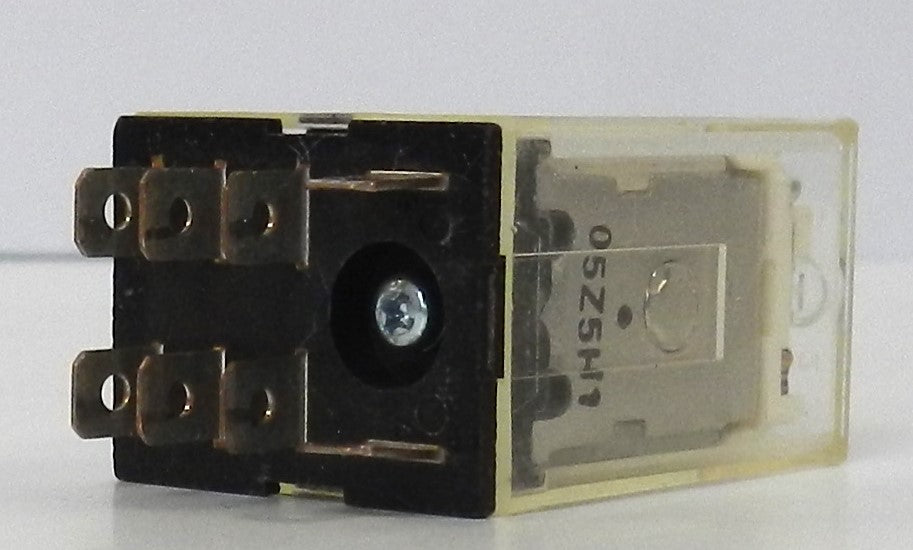

Plug-in terminal design enables quick installation and easy replacement using compatible Omron relay sockets
Silver alloy contacts ensure reliable switching performance and long service life
Compact enclosed housing protects internal components in demanding industrial environments
Compatible with Omron sockets including PTF-08-PU, PTF-08-PU-L, PT08, PT08QN, and PTFZ-08-E
Ideal for PLC systems, industrial automation, HVAC equipment, machine control, process control, and OEM machinery.

Manufacturer Name: Omron
Part Number (MPN): LY1N DC24
Product Series: LY
Product Type: General Purpose Power Relay
Contact Configuration: SPDT (1 Form C)
Number of Poles: 1
Coil Voltage: 24 VDC
Coil Current: 36.9 mA
Coil Resistance: 650 Ω
Coil Power Consumption: Approx. 0.9 W
Contact Rating:
- 15 A @ 110 VAC (Resistive)
- 10 A @ 110 VAC (Inductive, cosφ = 0.4)
- 15 A @ 24 VDC (Resistive)
- 7 A @ 24 VDC (Inductive, L/R = 7 ms)
Maximum Switching Voltage:
- 250 VAC
- 125 VDC
Maximum Switching Current:
- 15 A
Contact Material: Silver Alloy (Ag Alloy)
Operating Time: 25 ms Max
Release Time: 25 ms Max
Mounting Type: Socket Mount
Terminal Type: Plug-In
Operating Temperature: -25°C to +40°C
Certifications:
- UL Recognized
- CSA
- CE
- TÜV
Applications:
- Industrial Automation
- PLC Control Panels
- HVAC Systems
- Motor Control
- Machine Automation
- Process Control
- OEM Equipment
