OMRON

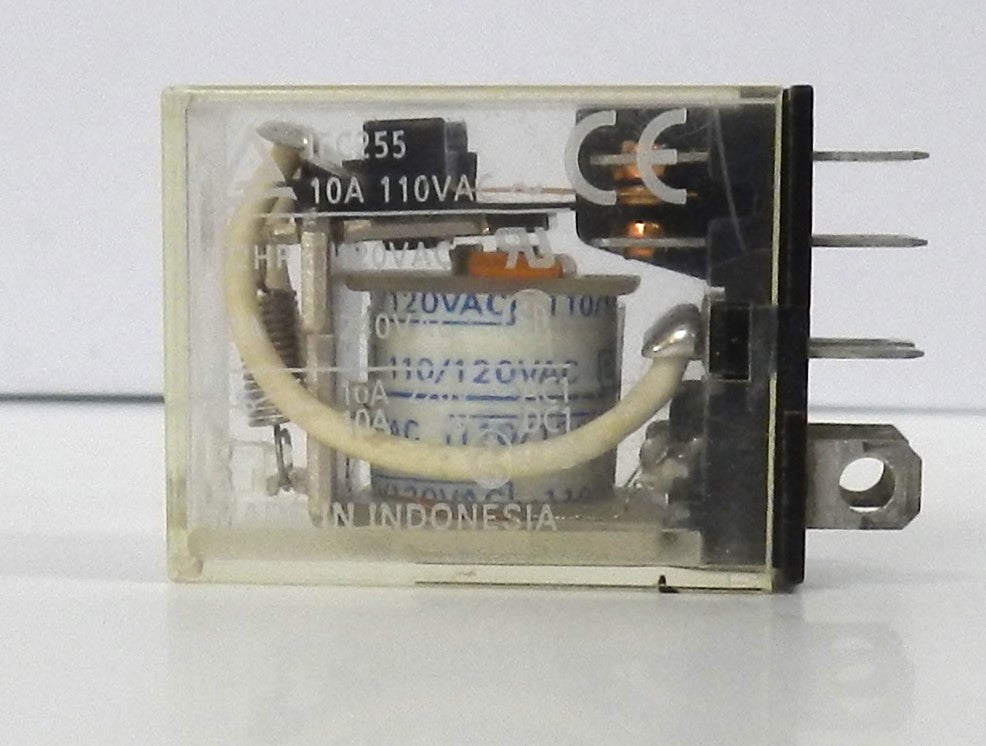

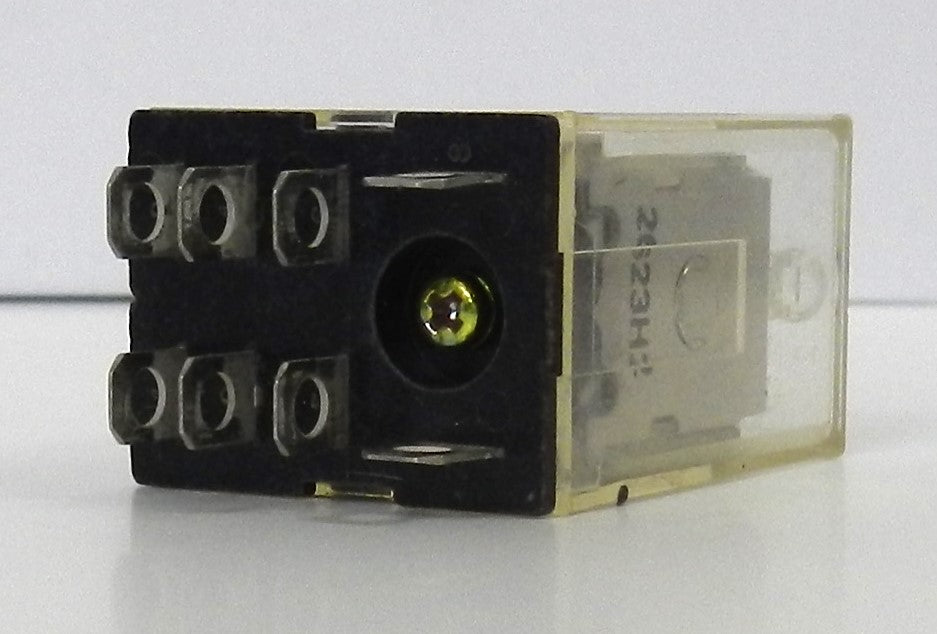

Omron LY2 110/120VAC General Purpose Power Relay DPDT 10A Plug-In Relay

$20.99 CAD

Sale Sold out

Style REFURBISH

Description:

Genuine Omron LY2 general-purpose power relay for industrial control and automation applications
Features DPDT (2 Form C) contact configuration with 2 changeover contacts
Equipped with a 110/120 VAC coil for reliable AC control circuits
Rated for 10A switching capacity for both resistive AC and DC loads
Plug-in design enables fast installation and easy replacement using compatible Omron relay sockets
Silver alloy contacts provide long electrical life and dependable switching performance
Transparent protective cover allows visual inspection of contact operation
Ideal for industrial control panels, PLC systems, HVAC equipment, machine automation, conveyors, OEM machinery, and process control
Compatible with Omron PTF, PF083A, and other LY Series relay sockets

Manufacturer Name: Omron
Part Number (MPN): LY2 110/120 VAC
Product Series: LY Series
Product Type: General Purpose Power Relay
Contact Configuration: DPDT (2 Form C)
Number of Poles: 2
Coil Voltage:
- 110 VAC, 50 Hz
- 120 VAC, 60 Hz
Coil Resistance: 4,430 Ω
Coil Power Consumption: Approx. 0.9–1.1 VA
Contact Rating:
- 10 A @ 250 VAC (Resistive)
- 10 A @ 24 VDC (Resistive)
- 7.5 A @ 250 VAC (Inductive, cosφ = 0.4)
- 5 A @ 24 VDC (Inductive, L/R = 7 ms)
Maximum Switching Voltage:
- 250 VAC
- 125 VDC
Maximum Switching Current: 10 A
Contact Material: Silver Alloy (Ag Alloy)
Operate Time: 25 ms Maximum
Release Time: 25 ms Maximum
Mounting Type: Plug-In Socket
Mechanical Life: 20,000,000 Operations
Electrical Life: 500,000 Operations (Rated Load)
Operating Temperature: -25°C to +55°C
Certifications:
- UL Recognized
- CSA Certified
- CE
- RoHS Compliant
Applications:
- Industrial Automation
- PLC Control Panels
- HVAC Systems
- Machine Control
- OEM Equipment
- Process Control
- Relay Logic Circuits
