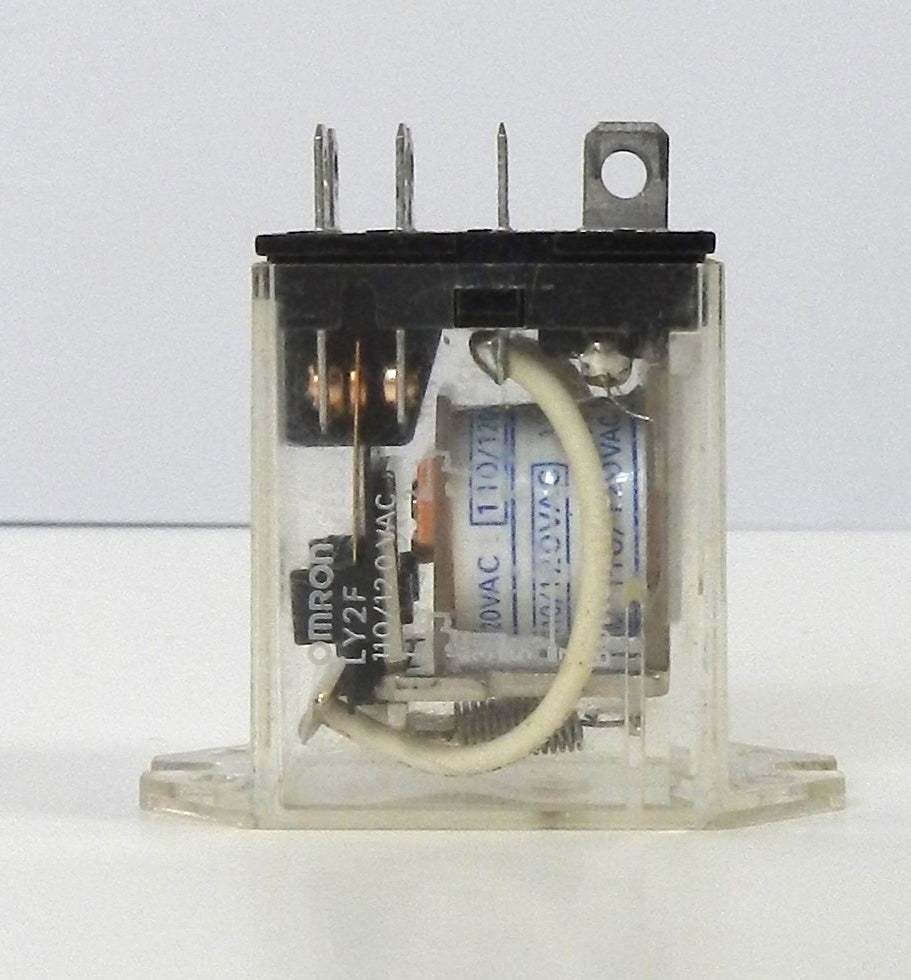

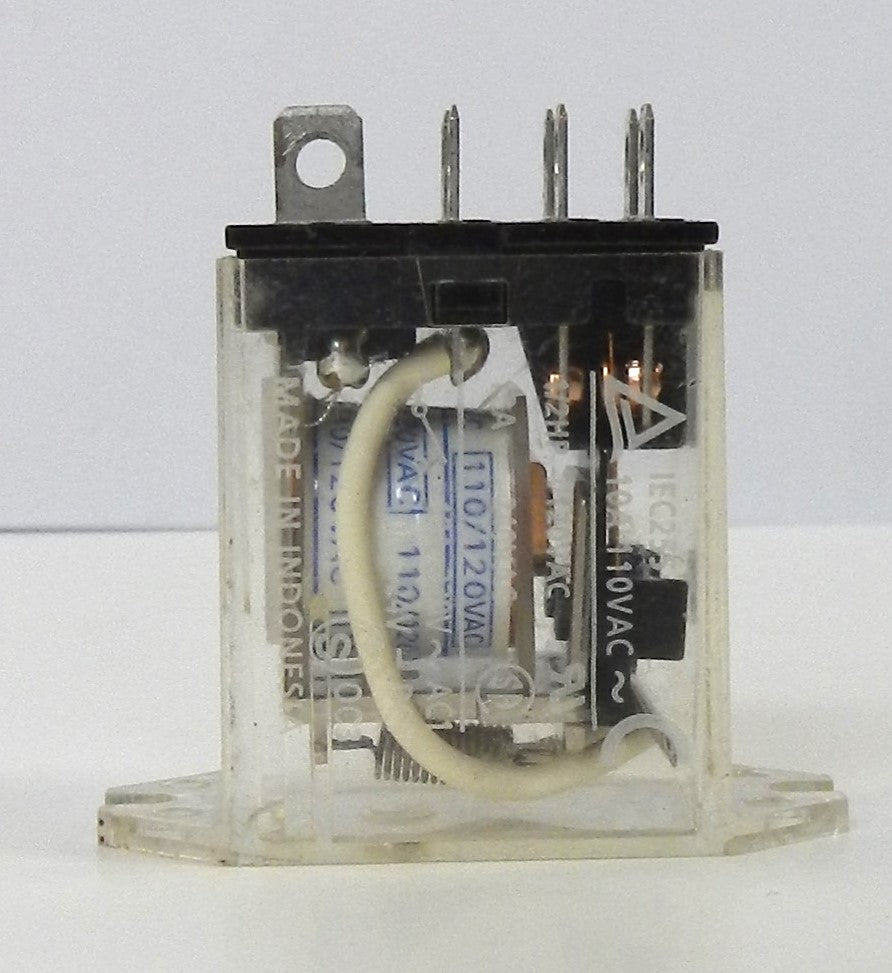

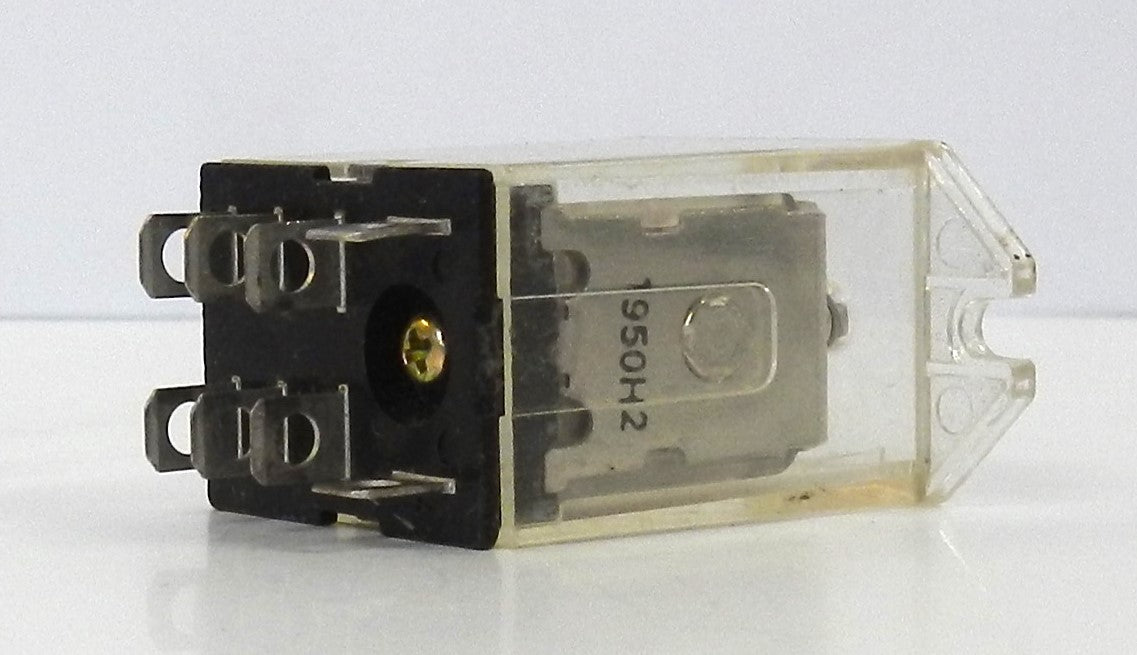

LY2F AC110/120 Omron DPDT Power Relay 10A 110/120VAC Coil Flange Mount

Description:

• Genuine Omron LY Series general-purpose power relay for industrial control and automation applications
• Features DPDT (2 Form C) contact configuration with 10A switching capacity
• Equipped with a 110/120 VAC coil for 50/60 Hz operation
• Flange (surface) mounting design for secure installation in industrial control panels
• Silver alloy contacts provide reliable switching performance and long service life
• Transparent protective cover allows easy visual inspection of relay operation
• Compatible with Omron PTF08A, PTF-08-PU, PT08, and other 8-pin relay sockets
• Ideal for motor control, HVAC systems, industrial automation, machine control, PLC panels, and OEM equipment
• High mechanical durability and dependable operation in demanding industrial environments.

Specifications:

• Manufacturer Name: Omron
• Part Number (MPN): LY2F AC110/120
• Product Series: LY
• Product Type: General Purpose Power Relay
• Contact Configuration: DPDT (2 Form C)
• Contact Material: Silver Alloy
• Rated Contact Current: 10 A
• Maximum Switching Voltage:
  • 250 VAC
  • 125 VDC
• Maximum Switching Current:
  • 10 A AC
  • 10 A DC
• Coil Voltage:
  • 110 VAC, 50 Hz
  • 120 VAC, 60 Hz
• Coil Resistance: 4430 Ω
• Coil Power Consumption: Approx. 0.9–1.1 VA
• Operate Time: 25 ms Max
• Release Time: 25 ms Max
• Mounting Type: Flange (Surface Mount)
• Terminal Style: 8-Pin
• Operating Temperature: -25°C to +55°C
• Operating Humidity: 5–85% RH (Non-Condensing)
• Certifications:
  • UL Recognized
  • CSA Certified
  • CE
  • RoHS Compliant
• Applications:
  • Industrial Automation
  • PLC Control Panels
  • HVAC Systems
  • Motor Control
  • Process Control
  • OEM Equipment
  • Machine Automation

Dimensions:

• Height: 53 mm (2.09 in)
• Width: 28 mm (1.10 in)
• Depth: 36 mm (1.42 in).

Weight:

• Approximate Weight: 0.05 kg (0.11 lb).
