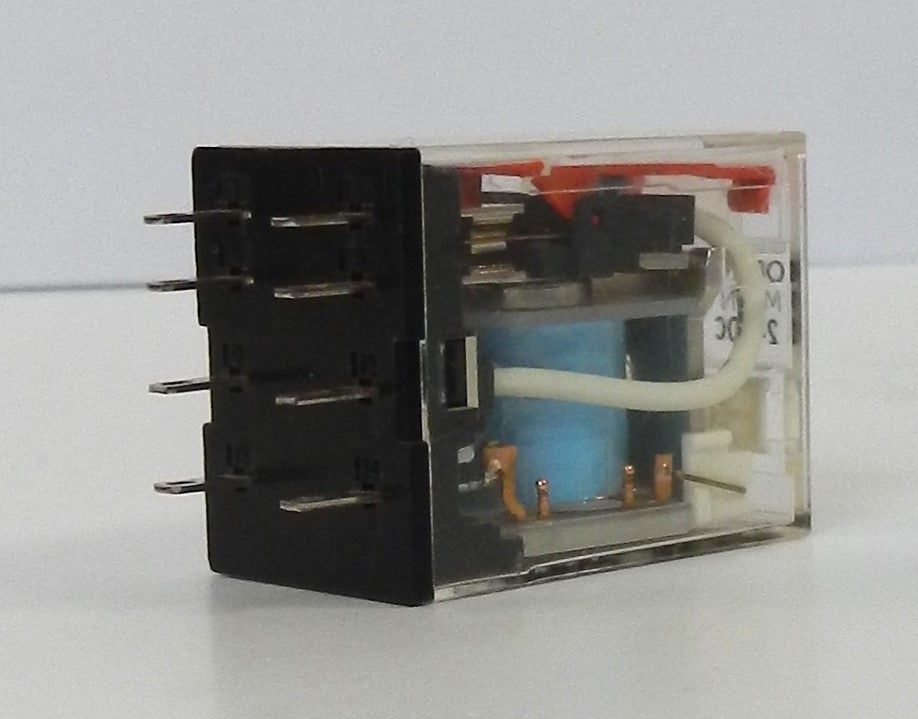

MY2N DC24(S) Omron DPDT General Purpose Plug-In Relay 24VDC Coil 10A LED Indicator

Description:

• Genuine Omron MY Series general-purpose plug-in relay for industrial automation and control applications
• Features DPDT (2 Form C) contact configuration with 10A switching capacity
• Operates with a 24V DC coil and includes a built-in LED operation indicator for quick visual status confirmation
• Plug-in socket design allows fast installation and easy relay replacement
• Silver alloy contacts provide reliable switching performance and long service life
• Suitable for switching motors, solenoids, contactors, PLC outputs, alarms, lighting, and industrial control circuits
• Compatible with Omron PYF series relay sockets
• Ideal for industrial automation, OEM equipment, machine control, process control, HVAC systems, and electrical panels
• Obsolete model. Manufacturer-recommended replacement: Omron MY2N-GS-R DC24.

Specifications:

• Manufacturer Name: Omron
• Part Number (MPN): MY2N DC24(S)
• Product Series: MY
• Product Type: General Purpose Plug-In Relay
• Contact Configuration: DPDT (2 Form C)
• Coil Voltage: 24 VDC
• Coil Current: 36.3 mA
• Coil Resistance: 662 Ω
• Coil Power Consumption: Approx. 0.9 W
• Contact Rating: 10 A
• Maximum Switching Voltage:
  • 250 VAC
  • 125 VDC
• Maximum Switching Capacity:
  • 1250 VA
  • 625 W
• Contact Material: Silver (Ag)
• Operate Time: 20 ms Max
• Release Time: 20 ms Max
• Mounting Type: Socketable / Plug-In
• Terminal Style: Plug-In
• Operating Temperature: -55°C to +70°C
• Certifications:
  • CE
  • CSA
  • UL Recognized
  • VDE
• Lifecycle Status: Obsolete
• Recommended Replacement: MY2N-GS-R DC24

Dimensions:

• Length: 28 mm (1.10 in)
• Width: 21.5 mm (0.85 in)
• Height: 36 mm (1.42 in)

Weight:

• Approximate Weight: 35 g (0.08 lb).
