PTF11A Omron 11-Pin Relay Socket DIN Rail & Panel Mount Screw Terminal for LY3 Relays

Description:

• Genuine Omron PTF11A relay socket for industrial control and automation applications
• Designed for 11-pin Omron LY3 series plug-in relays and other compatible 11-pin industrial relays

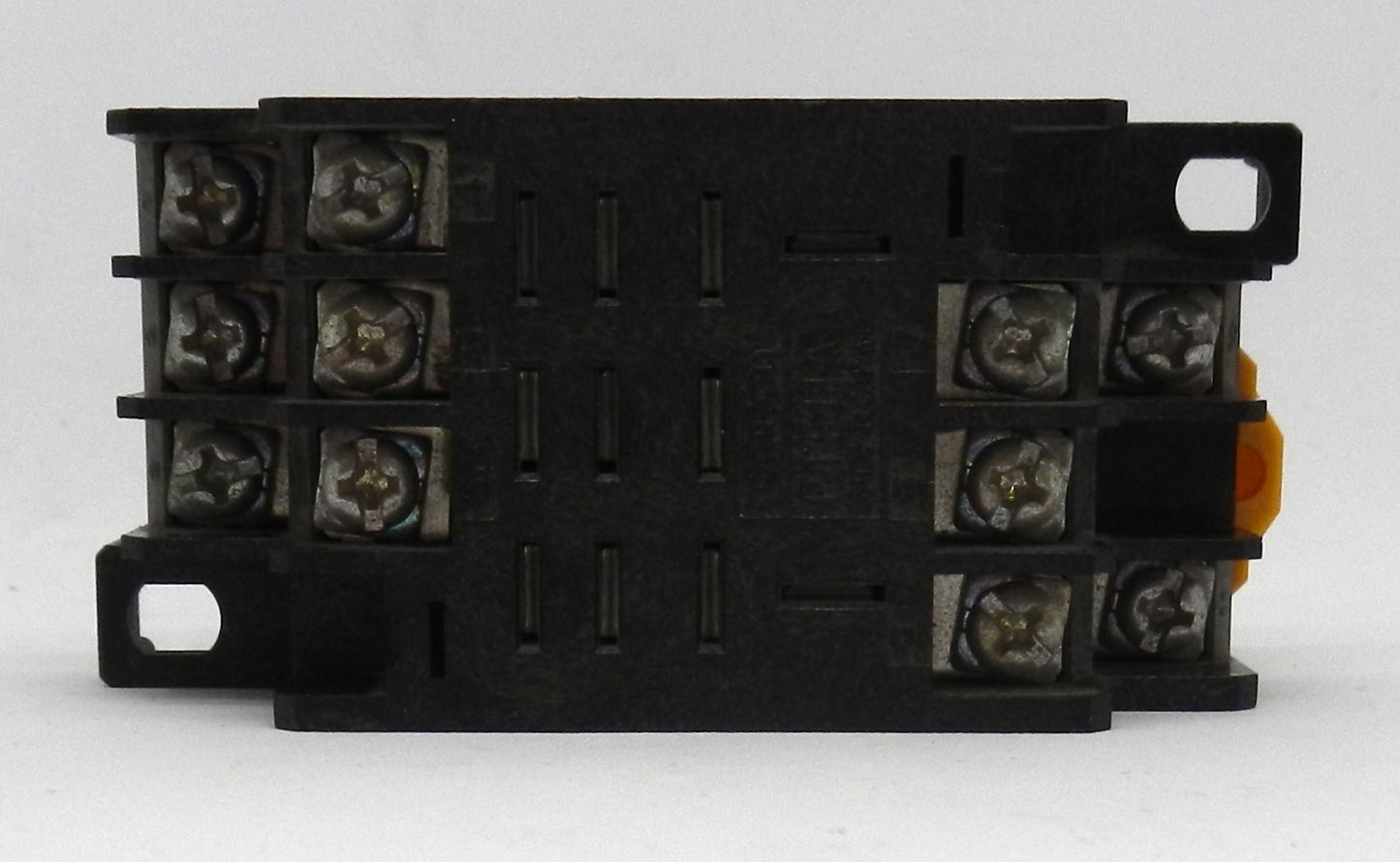

• Features screw terminal connections for secure and reliable field wiring

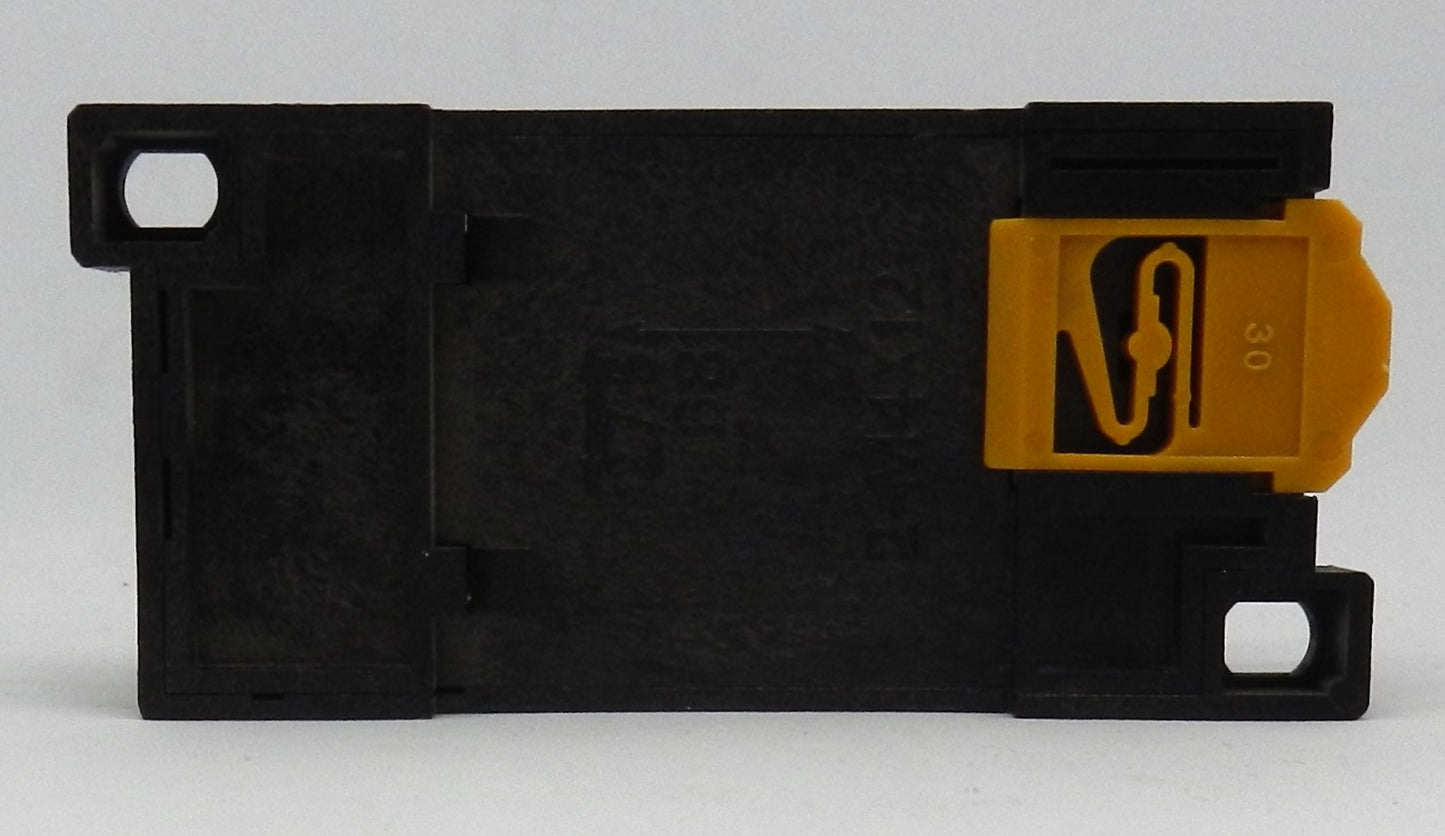

• Supports both 35 mm DIN rail and panel (surface) mounting for flexible installation
• Durable thermoplastic housing provides long-lasting performance in industrial environments
• Clearly marked terminal numbers simplify wiring and maintenance
• Compatible with Omron retaining clips for secure relay installation (sold separately)
• Ideal for industrial control panels, PLC systems, HVAC equipment, OEM machinery, process control, and automation systems
• Suitable for new installations, maintenance, and relay replacement applications.

Specifications:

• Manufacturer Name: Omron
• Part Number (MPN): PTF11A
• Product Series: PTF
• Product Type: Relay Socket
• Number of Pins: 11
• Compatible Relay Family: Omron LY3
• Terminal Type: Screw Terminals
• Mounting Type:
  • 35 mm DIN Rail
  • Panel / Surface Mount

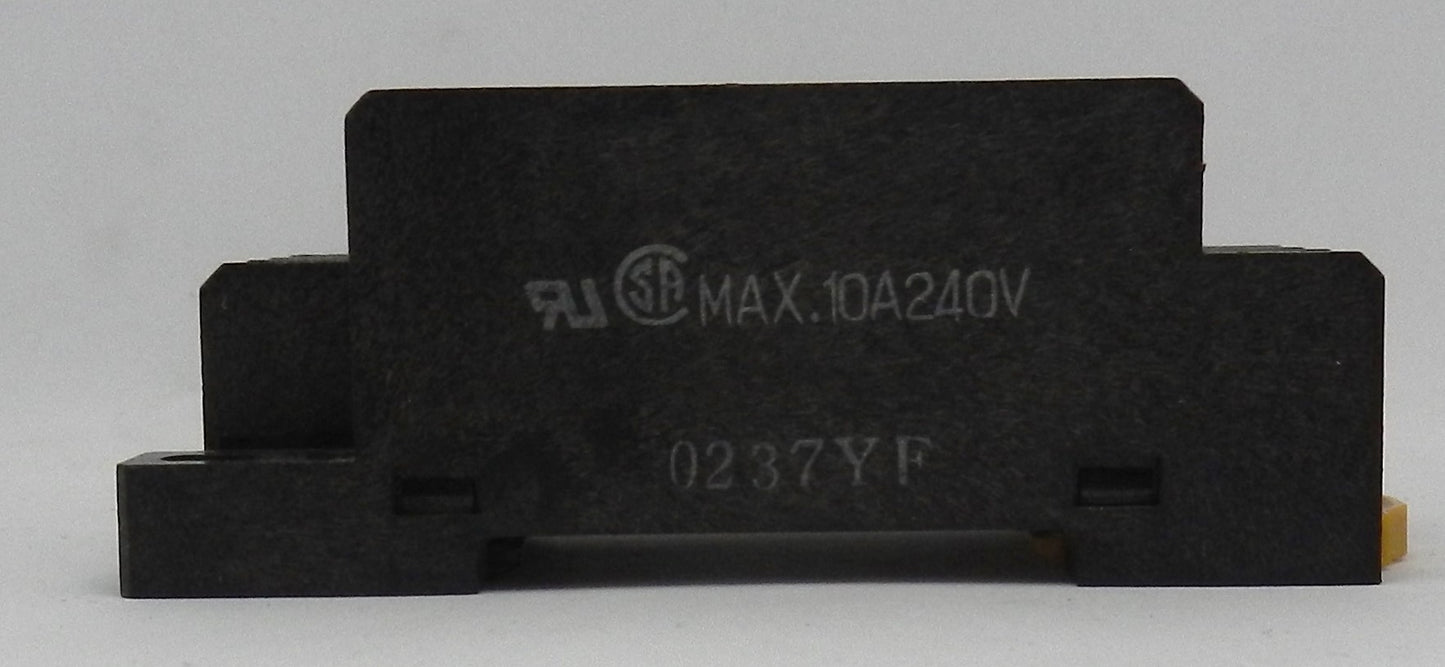

• Rated Carry Current: 10 A
• Dielectric Strength: 2,000 VAC for 1 minute
• Insulation Resistance: 100 MΩ minimum (500 VDC)
• Housing Color: Black
• Compatible Ferrules:
  • Fork Terminals
  • Ring Terminals
• Hold-Down Clip Included: No
• Release Lever Included: No
• Applications:
  • Industrial Automation
  • PLC Control Panels
  • Relay Panels
  • Process Control
  • HVAC Systems
  • Machine Automation
  • OEM Equipment

Dimensions:

• Height: 78.5 mm (3.09 in)
• Width: 37 mm (1.46 in)
• Depth: 30 mm (1.18 in)

Weight:

• Approximate Weight: 61 g (0.061 kg / 0.13 lb).
