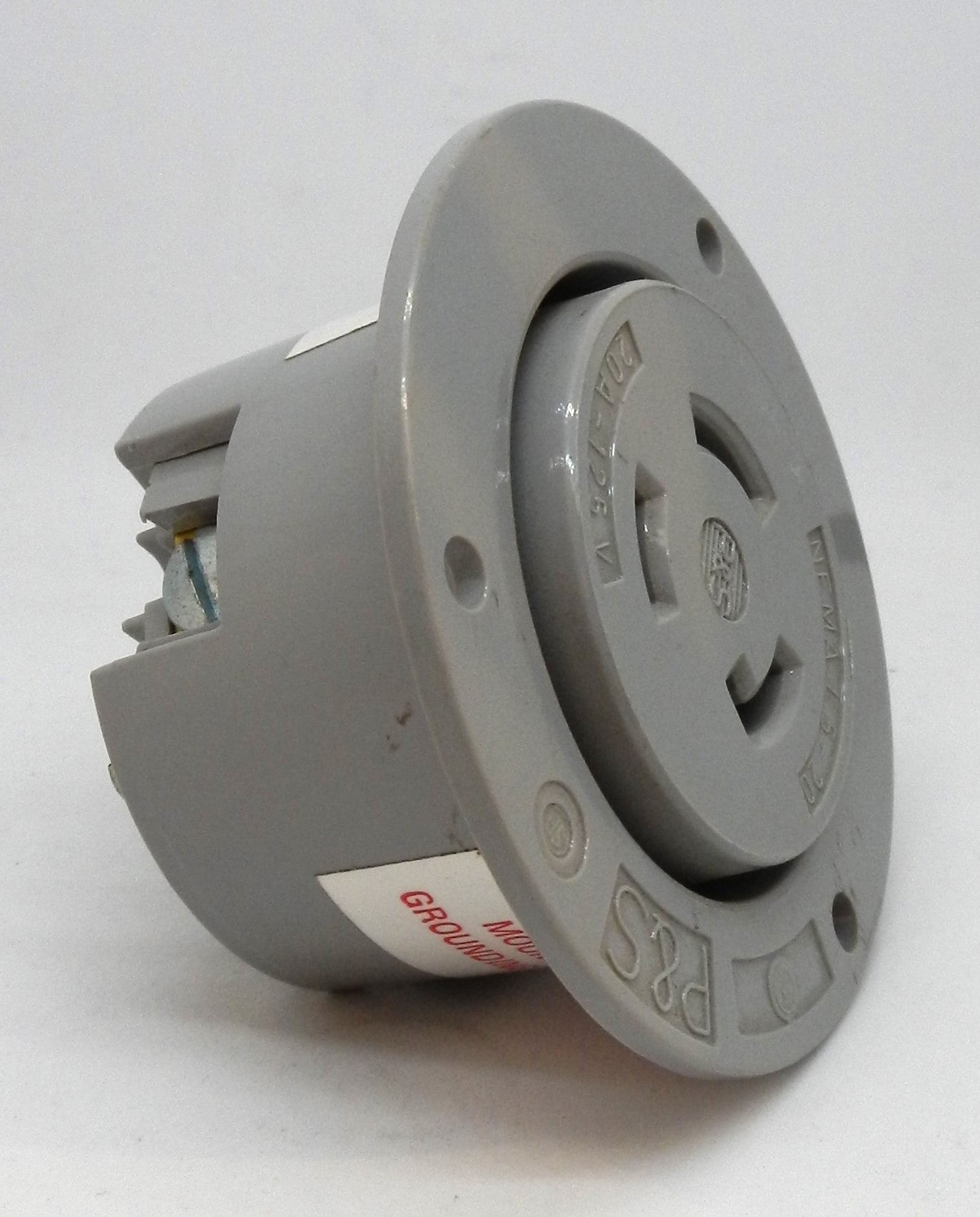

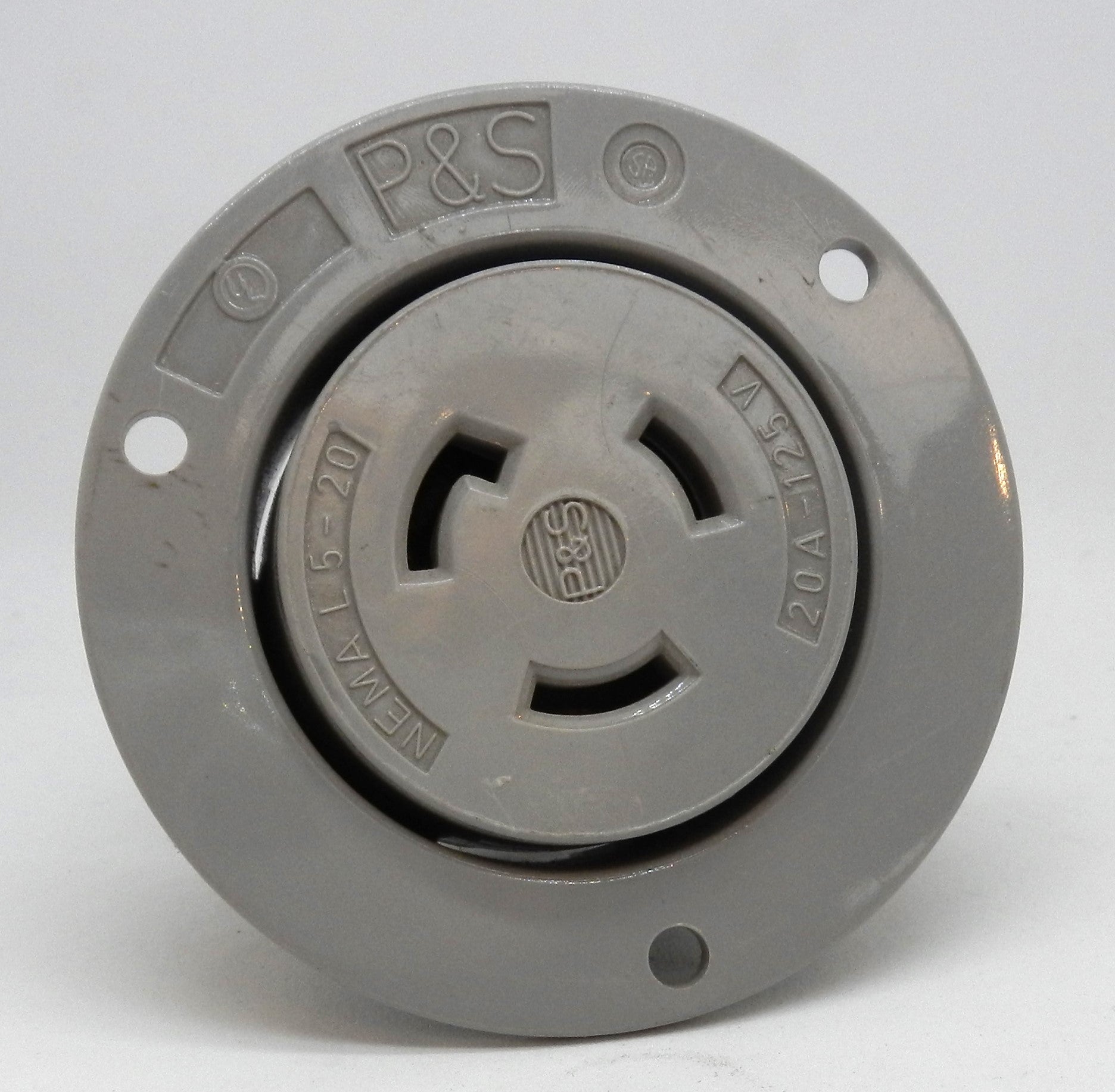

P&S NEMA L5-20 Pass & Seymour Safeway Flanged Receptacle 20A 125V Locking Panel Mount

Description:

• Genuine Pass & Seymour (P&S) Safeway® flanged receptacle for industrial power distribution and equipment connections
• NEMA L5-20R locking configuration provides a secure twist-lock connection to prevent accidental disconnection
• Rated for 20 Amps, 125 Volts AC
• 2-Pole, 3-Wire Grounding configuration for reliable and safe electrical connections
• Heavy-duty flanged design allows secure panel or equipment mounting

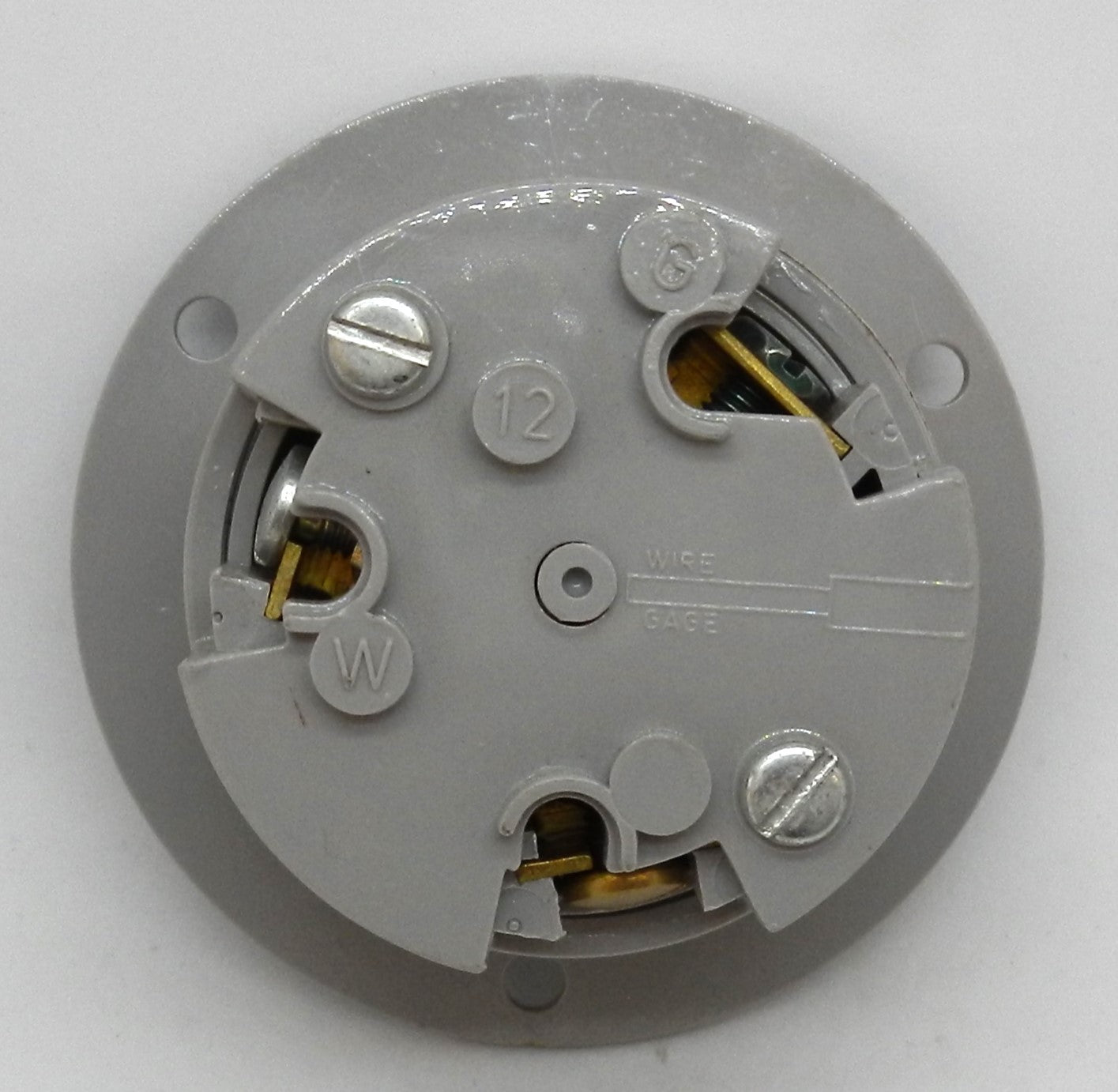

• Screw terminal wiring for dependable electrical connections
• Durable industrial-grade thermoplastic housing designed for demanding commercial and industrial environments
• Ideal for generators, portable power equipment, machinery, industrial control panels, transfer switches, and OEM equipment
• UL and CSA listed for industrial applications and electrical safety compliance.

Specifications:

• Manufacturer Name: Pass & Seymour (Legrand)
• Product Line: Safeway®
• Product Type: Flanged Receptacle
• Configuration: NEMA L5-20R
• Current Rating: 20 A
• Voltage Rating: 125 VAC
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Yes
• Connection Type: Locking (Twist-Lock)
• Mounting Type: Flanged Panel Mount
• Terminal Type: Screw Terminal
• Contact Material: Brass
• Housing Material: Industrial Thermoplastic/Nylon
• Operating Temperature: -40°C to +75°C
• Standards:
  • UL 498
  • CSA
  • NEMA WD-1
• Applications:
  • Industrial Equipment
  • Generators
  • Power Distribution
  • Machine Control
  • Transfer Switches
  • Control Panels
  • OEM Equipment

Dimensions:

• Face Diameter: 1.545 in (39.2 mm)
• Flanged panel-mount design for industrial equipment installation.

Weight:

• Approximate Weight: 0.10 kg (0.23 lb).
