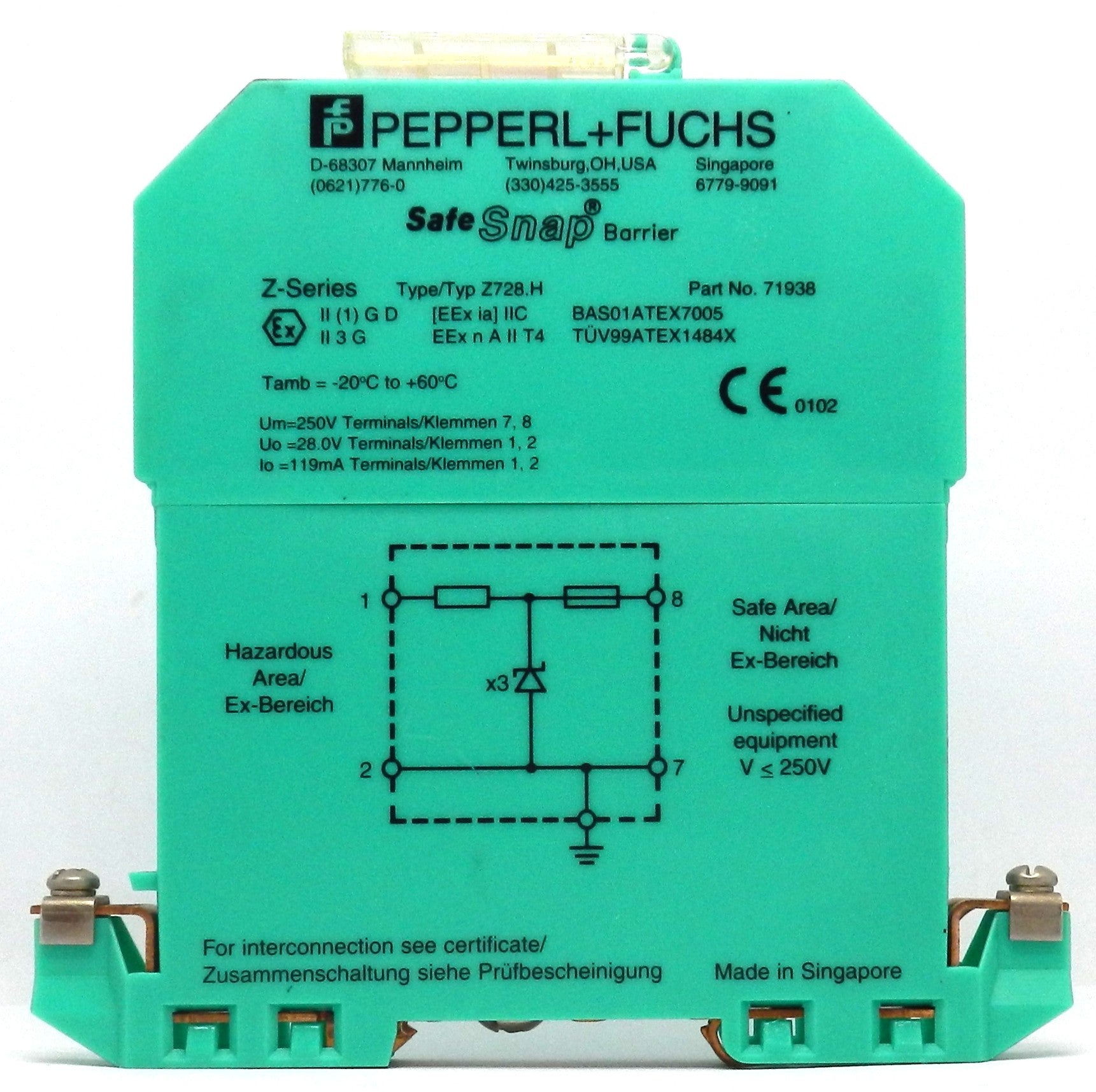

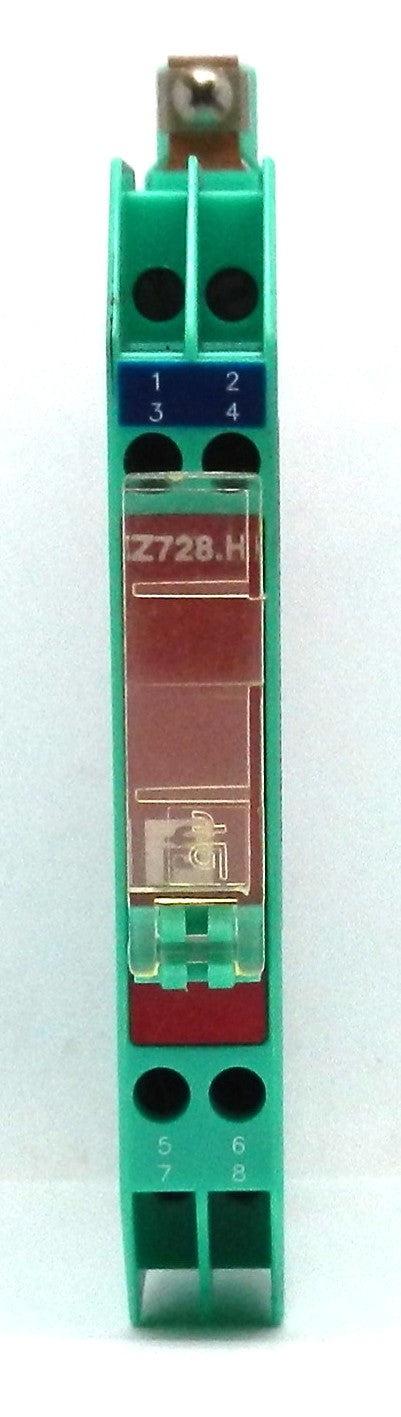

Z728.H 71938 Pepperl+Fuchs SafeSnap Z-Series Intrinsic Safety Barrier 28V

Description

• Pepperl+Fuchs SafeSnap intrinsic safety barrier
• Z-Series shunt diode barrier for hazardous-area applications
• Provides intrinsically safe circuits for compatible field equipment
• Designed to limit voltage and current entering hazardous areas
• Suitable for industrial process control and instrumentation systems
• DIN rail mounting design
• Made in Singapore

Specifications

• Manufacturer: Pepperl+Fuchs
• Model: Z728.H
• Part Number: 71938
• Series: Z-Series SafeSnap
• Product Type: Intrinsic Safety Barrier / Zener Barrier
• Maximum Voltage (Um): 250 V
• Output Voltage (Uo): 28.0 V
• Output Current (Io): 119 mA
• Uo Terminals: 1, 2
• Um Terminals: 7, 8
• Ambient Temperature: -20°C to +60°C
• Hazardous Area Protection: Intrinsically Safe
• Temperature Class: T4

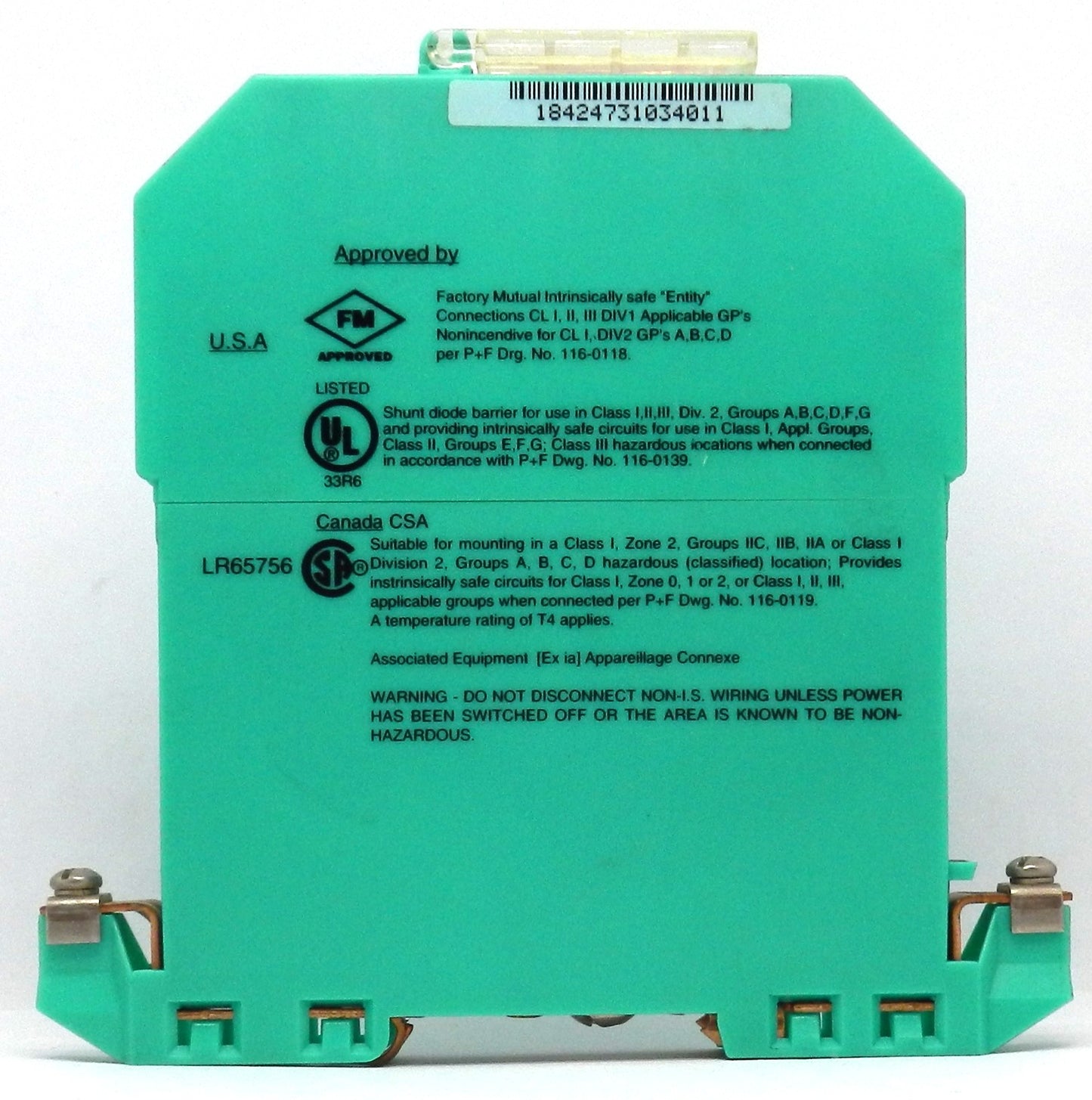

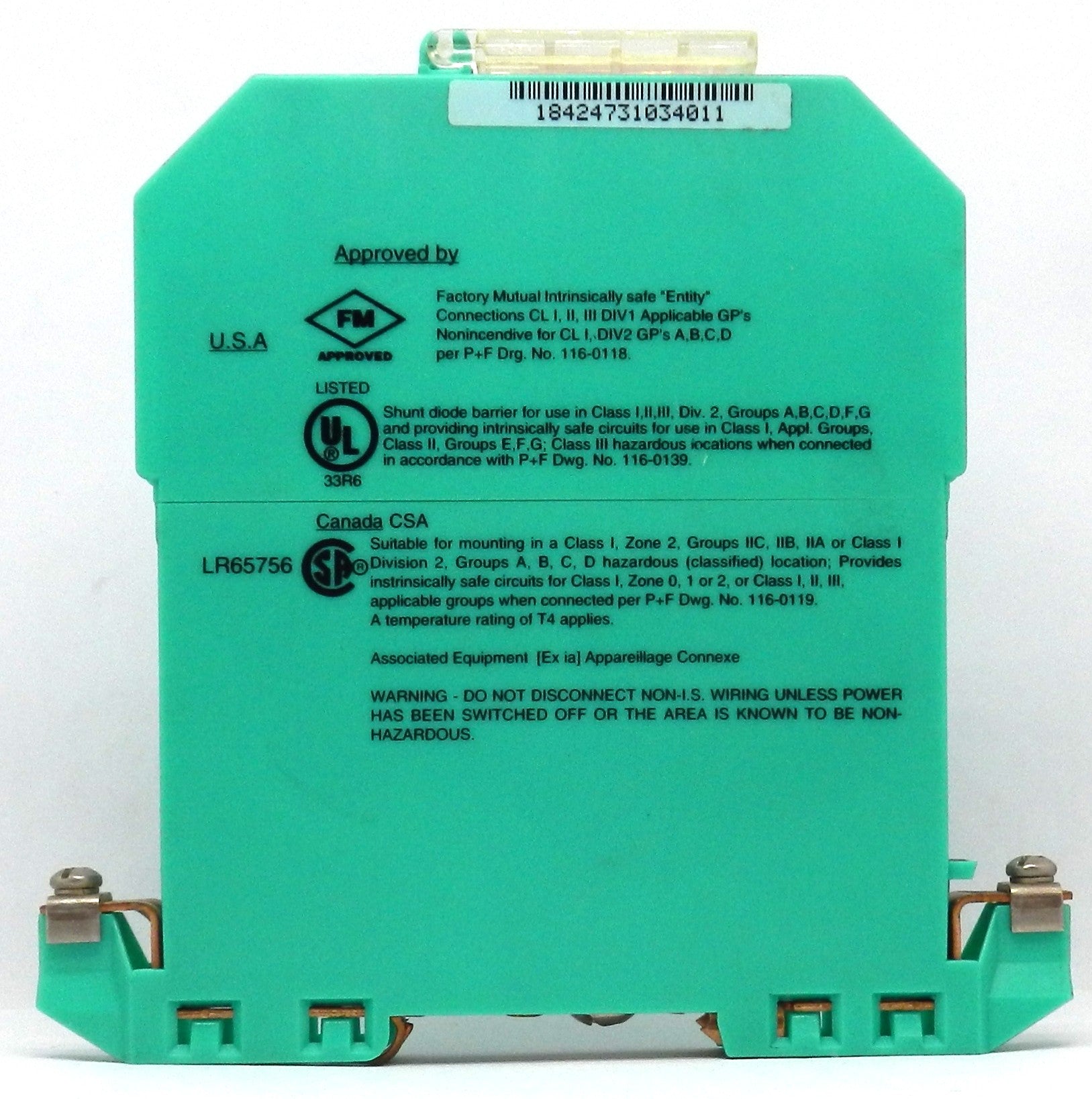

• Approvals shown: FM, UL, CSA, CE
• Mounting: DIN Rail
• Country of Origin: Singapore

Dimensions

• Refer to manufacturer specifications for exact dimensions

Weight

• Refer to manufacturer specifications for exact weight
