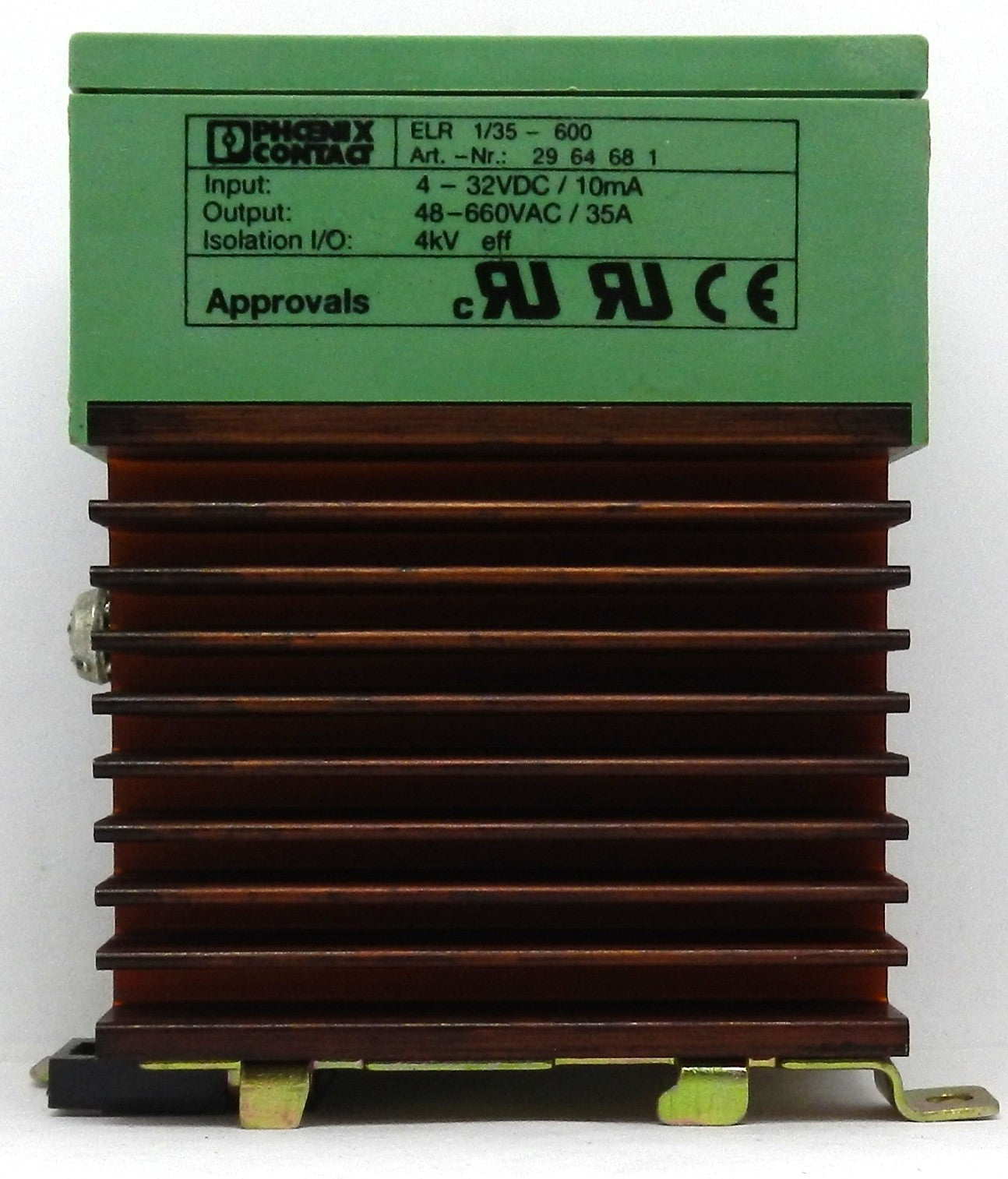

ELR 1/35-600 Phoenix Contact 1-Phase Electronic Load Relay 35A 48-660VAC Solid-State Contactor

Description:

• Genuine Phoenix Contact single-phase electronic load relay for industrial switching and automation applications
• Manufacturer item number 2964681
• Solid-state contactor design provides reliable, wear-free switching without mechanical contacts
• Rated for 35 A continuous load current, subject to the manufacturer's derating requirements
• Supports a wide 48–660 VAC output voltage range with 600 VAC nominal output
• Operates from a 4–32 VDC control input
• Suitable for switching heaters, resistive loads, industrial equipment, and other compatible single-phase AC loads
• Integrated green LED status indicator provides clear operating status
• Built-in RC and surge protection help protect the switching circuit
• Designed for industrial automation, process equipment, machinery, control panels, and OEM applications

Specifications:

• Manufacturer: Phoenix Contact
• Part Number: ELR 1/35-600
• Manufacturer Item Number: 2964681
• Product Type: Electronic Load Relay / Solid-State Contactor
• Number of Phases: 1
• Mains Type: Single-Phase
• Control Input Voltage: 4–32 VDC
• Nominal Output Voltage: 600 VAC
• Output Voltage Range: 48–660 VAC
• Continuous Load Current: 35 A
• Minimum Load Current: 100 mA
• Frequency: 50/60 Hz
• Peak Off-State Voltage: 1200 V
• Leakage Current: 8 mA
• Residual Voltage: 1.6 V
• Surge Current: 750 A for 8.33 ms at 25°C
• Typical Response Time: 10 ms
• Typical Turn-Off Time: 10 ms
• Input/Output Test Voltage: 4 kV
• Status Indicator: Green LED
• Connection Type: Screw Connection
• Wire Range: 0.2–2.5 mm² / AWG 24–14
• Operating Temperature: -20°C to +80°C
• Mounting: Panel mounting on horizontal DIN rail
• Color: Phoenix Contact Green
• GTIN: 4017918147624
• Country of Origin: Mexico
• Applications:
  • Industrial Control Panels
  • Solid-State Switching
  • Heating Control
  • Machine Automation
  • Process Control
  • OEM Machinery
  • Industrial Equipment

Dimensions:

• Width: 45 mm (1.77 in)
• Height: 98 mm (3.86 in)
• Depth: 105 mm (4.13 in)

Weight:

• Weight: 529.42 g
• Approximate Weight: 0.529 kg (1.17 lb
