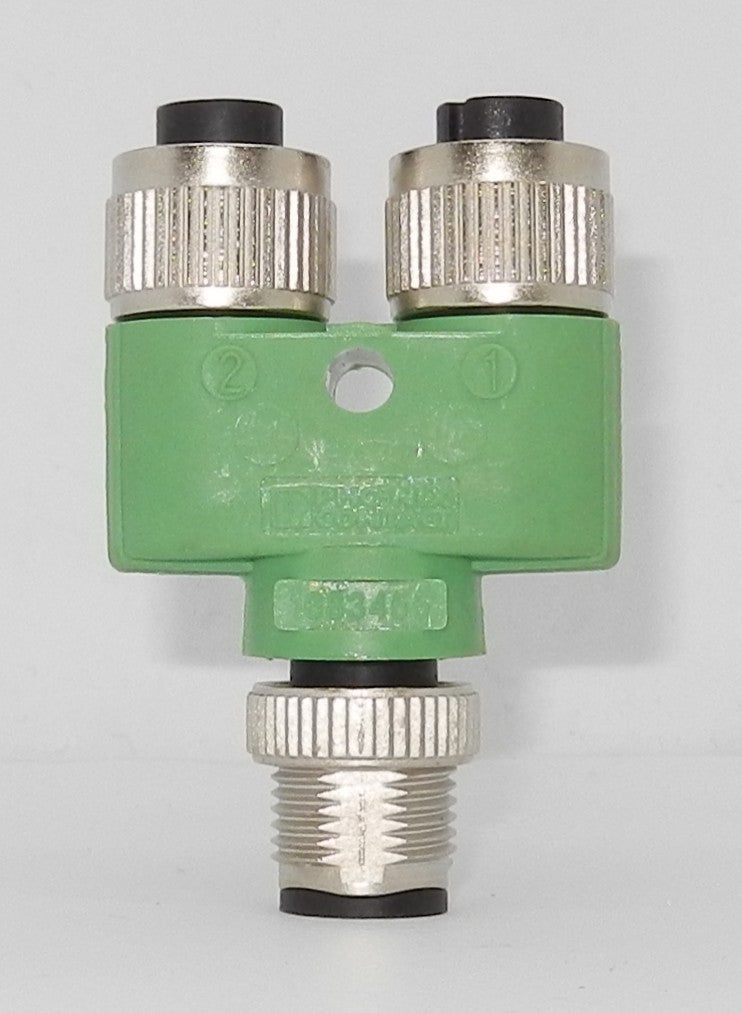

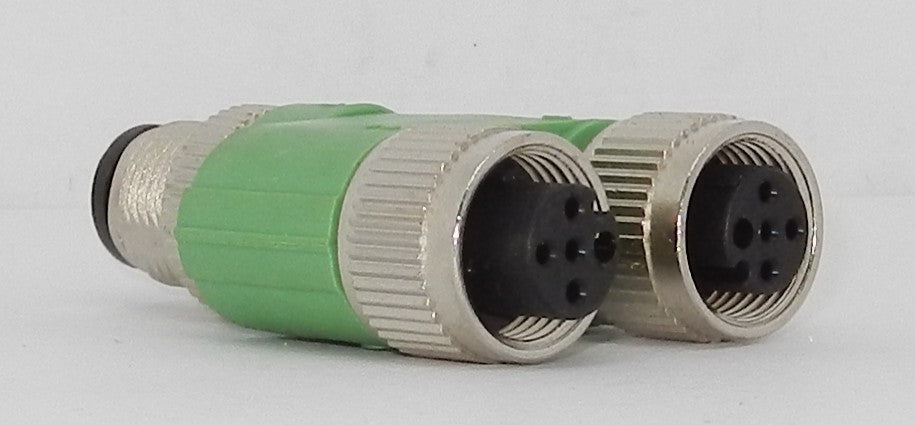

1683455 Phoenix Contact SAC-3P-M12Y/2XM12FS PE M12 A-Coded Y-Distributor 4-Position Unshielded

Description:

• Phoenix Contact sensor/actuator Y-distributor designed for industrial automation and field wiring applications
• Features one straight M12 A-coded male connector to two straight M12 A-coded female connectors
• 4-position, unshielded design for reliable signal and power distribution
• Parallel wiring allows a single M12 connection to serve two sensors or actuators
• Rated for 48 VAC / 60 VDC with a 4 A current capacity
• Rugged TPU molded housing resists oil, vibration, and harsh industrial environments
• IP65/IP67 protection when properly mated for dependable field installation
• Gold-plated contacts ensure excellent conductivity and corrosion resistance
• Compact inline design simplifies installation in confined spaces
• Ideal for sensors, actuators, PLC I/O systems, robotics, packaging equipment, conveyors, and factory automation.

Specifications:

• Manufacturer Name: Phoenix Contact
• Part Number (MPN): 1683455
• Model: SAC-3P-M12Y/2XM12FS PE
• Product Type: M12 Y-Distributor
• Connector A: 1 × Straight M12 Male Plug
• Connector B: 2 × Straight M12 Female Sockets
• Coding: A-Coded
• Number of Positions: 4
• Shielding: Unshielded
• Number of Cable Outlets: 2
• Rated Voltage: 48 VAC / 60 VDC
• Rated Current: 4 A
• Contact Material: CuZn, Gold-Plated (Ni/Au)
• Housing Material: TPU
• Thread Type: M12
• Protection Rating: IP65 / IP67
• Operating Temperature: -25°C to +90°C
• Mounting Style: Inline
• Standards: IEC 61076-2-101
• Application: Industrial Sensors, Actuators, Field I/O, PLC Systems, Machine Automation, and Process Control.

Dimensions:

• Width: 33 mm
• Height: 14.8 mm
• Length: 50.1 mm
• Center Distance Between Sockets: 18 mm.

Weight:

• Approximate Weight: 27 g (0.06 lb).
