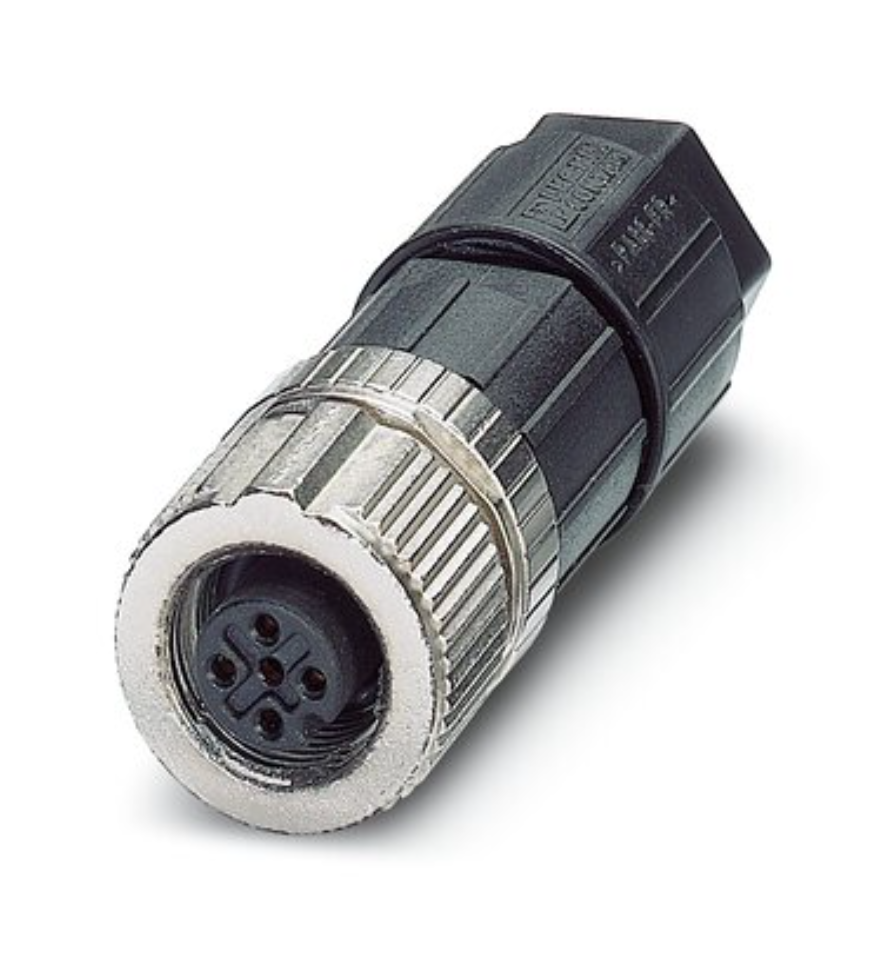

1681127 Phoenix Contact SACC-M12FS-4CON-PG7-M 4-Pin M12 A-Coded Female Field Wireable Connector

Description:

• Genuine Phoenix Contact field-wireable M12 circular connector for industrial sensor and actuator applications
• 4-pin M12 female socket with A-coding for universal industrial connectivity
• Straight cable outlet with PG7 cable gland for secure cable termination
• Reliable screw connection technology allows fast field assembly without special tools
• Nickel-plated zinc die-cast coupling nut provides excellent durability and corrosion resistance
• Accepts cable diameters from 4 mm to 6 mm
• Rated for 250 VAC/DC and 4 A
• IP67 protection rating when properly assembled and mated for use in harsh industrial environments
• Ideal for sensors, actuators, PLC I/O modules, machine automation, robotics, packaging equipment, and process control
• Manufactured by Phoenix Contact for dependable industrial connectivity.

Specifications:

• Manufacturer Name: Phoenix Contact
• Part Number (MPN): 1681127
• Model: SACC-M12FS-4CON-PG7-M
• Product Type: Field Wireable Circular Connector
• Connector Type: M12 Female Socket
• Number of Positions: 4
• Coding: A-Coded
• Orientation: Straight
• Connection Method: Screw Connection
• Rated Voltage: 250 VAC / 250 VDC
• Rated Current: 4 A
• Contact Material: Copper Zinc (CuZn)
• Contact Surface: CuSnZn
• Housing Material: PA
• Coupling Nut Material: Zinc Die-Cast, Nickel-Plated
• Cable Gland: PG7
• Cable Diameter: 4–6 mm
• Wire Size: 0.14–0.75 mm² (26–18 AWG)
• Degree of Protection: IP67
• Operating Temperature: -40°C to +85°C
• Standard: IEC 61076-2-101
• Application: Industrial Sensors, Actuators, PLC Systems, Robotics, Packaging Equipment, Factory Automation, and Process Control.

Dimensions:

• Length: 54 mm
• Width: 20 mm
• Height: 20 mm
• Housing Diameter: 20 mm
• Cable Diameter Range: 4–6 mm.

Weight:

• Approximate Weight: 24.6 g (0.054 lb).
