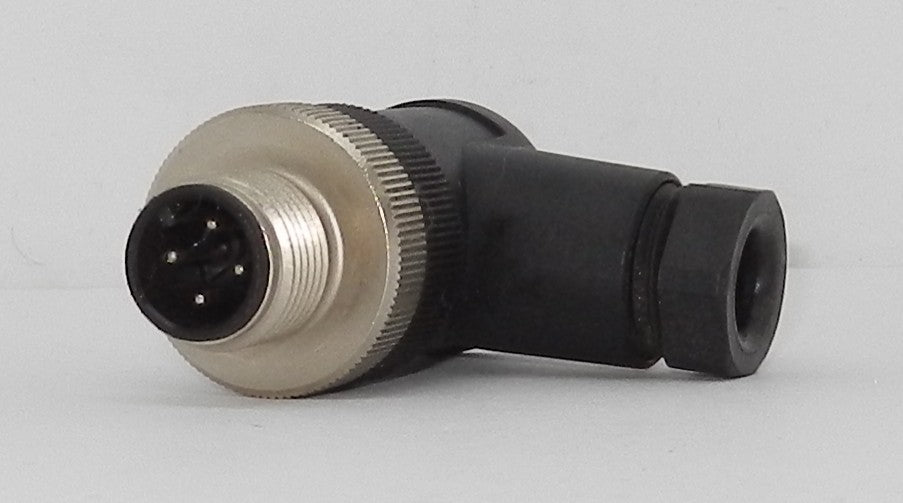

Phoenix Contact SACC-M12MR-4CON-PG7-M (1681101) 4-Pin Angled M12 A-Coded Connector – Screw Connection, PG7 Gland

Description

• The Phoenix Contact SACC-M12MR-4CON-PG7-M (Part No. 1681101) is a rugged 4-pin angled M12 A-coded connector designed for industrial and automation applications. Featuring a PG7 cable gland and durable nickel-plated zinc die-cast housing, this screw-connection connector provides reliable performance in harsh environments, ideal for sensor and actuator wiring.

  Key Features:

  • Connector Type: 4-pin angled M12 (A-coded) plug

  • Housing: Zinc die-cast, nickel-plated with PG7 gland

  • Connection Type: Screw connection for secure field-assembly wiring

  • Cable Compatibility: 4 mm to 6 mm external diameter

  • Durability: Rated 4 A, up to 250 V AC/DC, IP67 protection, operating temperature −40 °C to +85 °C

  • Compact: 41 mm length, 20 mm housing diameter

  Ideal for industrial control systems, this connector ensures secure and reliable field connections. Its angled plug design simplifies tight-space installations while maintaining ruggedness.

  GTIN (EAN): 4017918157487
