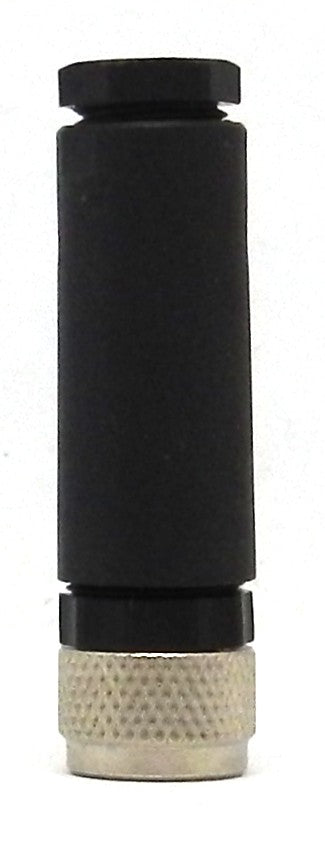

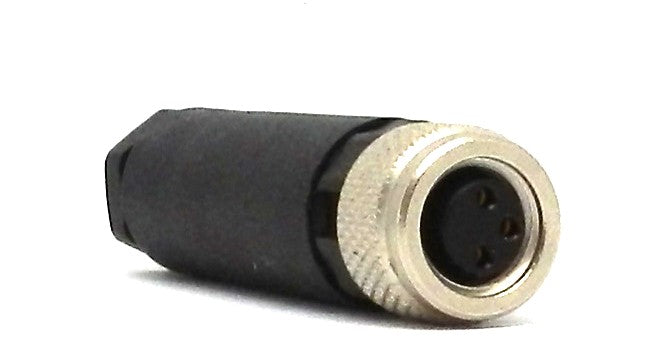

1506888 Phoenix Contact SACC-M8FS-3CON-M-SW 3-Pin M8 A-Coded Female Field Wireable Connector

Description:

• Phoenix Contact field wireable circular connector designed for industrial sensor and actuator applications
• Features a 3-pin straight M8 female connector with A-coded configuration
• Screw connection terminals provide fast and secure field termination without special tools
• Nickel-plated brass coupling nut ensures reliable, vibration-resistant connections
• Gold-plated contacts provide excellent conductivity and corrosion resistance
• Accepts cable diameters from 3.5 mm to 5.0 mm
• Rated for 48 VAC / 60 VDC with a 4 A current capacity
• IP67 protection rating when properly assembled and mated for reliable operation in harsh industrial environments
• Compact field-attachable design eliminates the need for pre-molded cables
• Ideal for proximity sensors, photoelectric sensors, actuators, PLC I/O systems, robotics, packaging equipment, and factory automation.

Specifications:

• Manufacturer Name: Phoenix Contact
• Part Number (MPN): 1506888
• Model: SACC-M8FS-3CON-M-SW
• Product Type: Field Wireable Circular Connector
• Connector Type: M8 Female Socket
• Coding: A-Coded
• Number of Positions: 3
• Orientation: Straight
• Connection Method: Screw Connection
• Rated Voltage: 48 VAC / 60 VDC
• Rated Current: 4 A
• Contact Material: CuZn (Copper Alloy)
• Contact Finish: Gold-Plated
• Coupling Nut Material: Brass, Nickel-Plated
• Housing Material: PBT / PA
• Cable Diameter: 3.5–5.0 mm
• Conductor Size: 0.14–0.5 mm² (26–20 AWG)
• Protection Rating: IP67
• Operating Temperature: -40°C to +85°C
• Standard: IEC 61076-2-104
• Application: Industrial Sensors, Actuators, PLC Systems, Machine Automation, Robotics, Packaging Equipment, and Process Control.

Dimensions:

• Length: 45 mm
• Width: 12 mm
• Height: 12 mm
• Housing Diameter: 12 mm
• Cable Diameter Range: 3.5–5.0 mm.

Weight:

• Approximate Weight: 11 g (0.024 lb).
