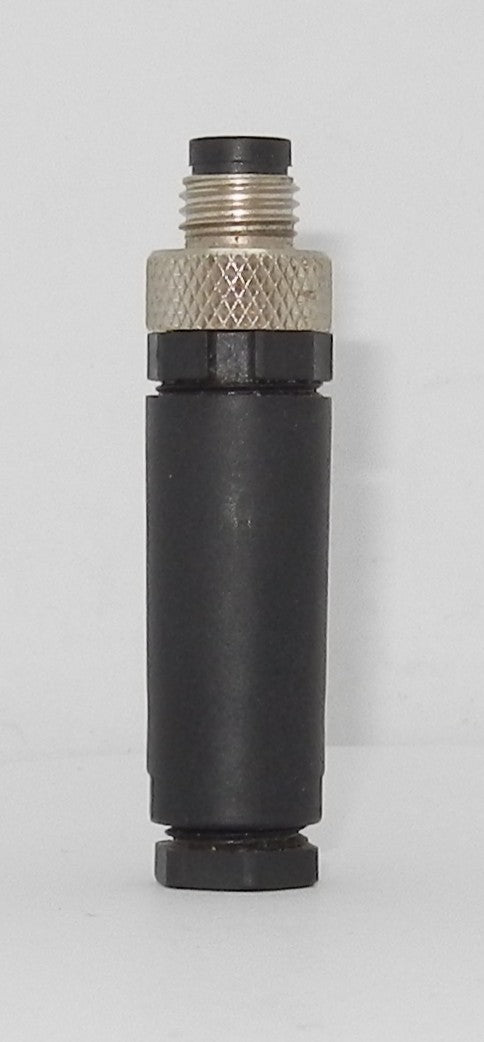

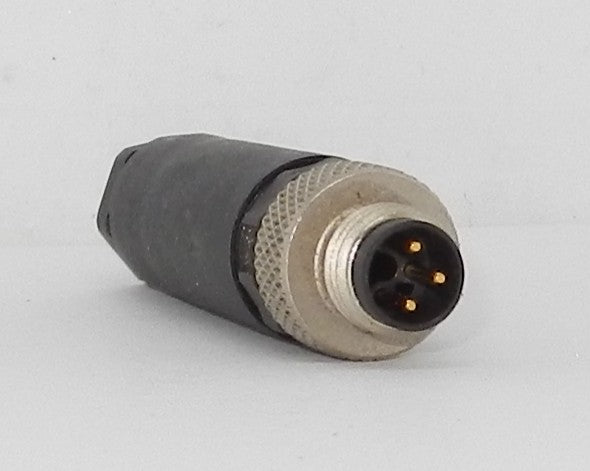

1501252 Phoenix Contact SACC-M8MS-3CON-M-SW M8 3-Pin A-Coded Male Field Wireable Connector

Description:

• Phoenix Contact field-wireable sensor/actuator connector for industrial automation and control applications
• Features a 3-pin straight M8 male connector with A-coding for standard sensor connections
• Screw connection terminals enable fast and secure on-site cable termination
• Nickel-plated brass coupling nut provides excellent durability and vibration resistance
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• Accepts cable diameters from 3.5 mm to 5.0 mm
• IP67 protection rating when properly assembled and mated for dependable operation in harsh industrial environments
• Compact field-attachable design eliminates the need for pre-molded cables
• Ideal for proximity sensors, photoelectric sensors, actuators, PLC I/O modules, robotics, packaging equipment, and factory automation
• Manufactured by Phoenix Contact for long-lasting industrial connectivity.

Specifications:

• Manufacturer Name: Phoenix Contact
• Part Number (MPN): 1501252
• Model: SACC-M8MS-3CON-M-SW
• Product Type: Field Wireable Circular Connector
• Connector Type: M8 Male Plug
• Orientation: Straight
• Coding: A-Coded
• Number of Positions: 3
• Connection Method: Screw Connection
• Rated Voltage: 30 VAC / 30 VDC
• Rated Current: 4 A
• Contact Material: Copper Alloy, Gold-Plated
• Knurl Material: Brass, Nickel-Plated
• Cable Diameter: 3.5–5.0 mm
• Protection Rating: IP67 (when mated)
• Mounting Style: Cable Mount
• Standards: IEC 61076-2-104
• Application: Industrial Sensors, Actuators, PLC Systems, Machine Automation, Robotics, and Process Control.

Dimensions:

• Connector Size: M8
• Straight cable outlet
• Cable Diameter Range: 3.5–5.0 mm
• Compact industrial design for field wiring.

Weight:

• Approximate Weight: 0.01 kg (0.02 lb).
