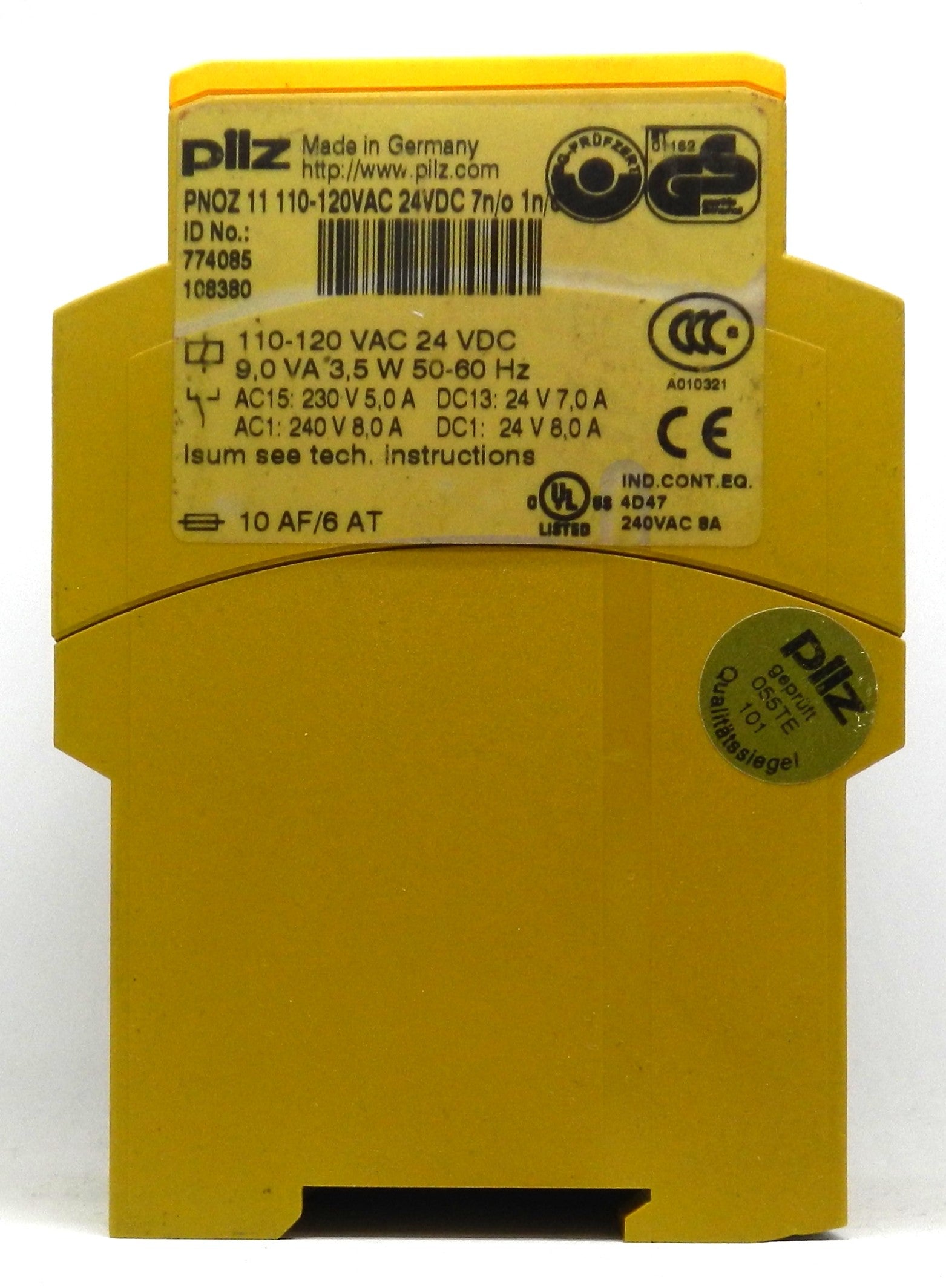

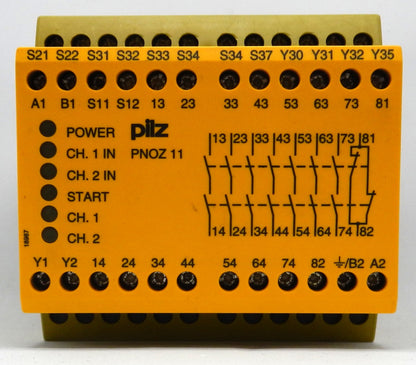

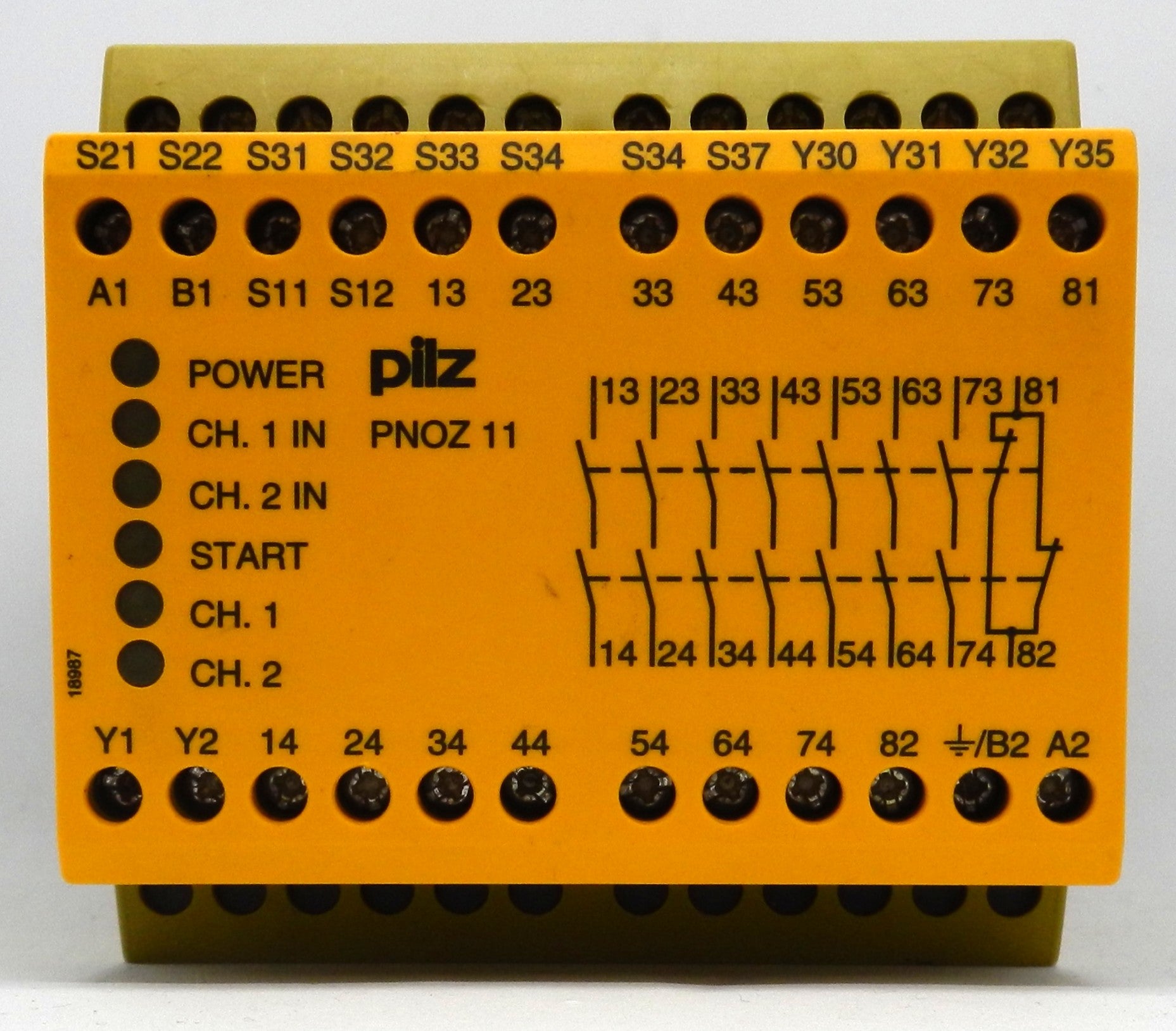

Pilz PNOZ 11 Safety Relay 110-120VAC / 24VDC 7NO 1NC Emergency Stop Relay PN 774085

Description:

• Genuine Pilz PNOZ 11 standalone safety relay for monitoring emergency stop circuits, safety gates, and safety interlock systems
• Supports 110–120 VAC or 24 VDC supply voltage for flexible industrial applications
• Features 7 Normally Open (NO) safety contacts and 1 Normally Closed (NC) auxiliary contact
• Supports single-channel or dual-channel safety circuits with or without cross-short monitoring
• Configurable for automatic, manual, or monitored reset operation
• Integrated feedback loop monitoring and start-up test for enhanced machine safety
• Screw terminal connections provide secure and reliable field wiring
• Designed for use in industrial machinery, conveyor systems, packaging equipment, robotics, manufacturing, and OEM safety control panels
• Certified to international safety standards including TÜV, cULus, CE, UKCA, and CCC.

Specifications:

• Manufacturer Name: Pilz
• Product Series: PNOZ
• Model: PNOZ 11
• Product ID: 774085
• Product Type: Safety Relay
• Supply Voltage:
  • 110–120 VAC
  • 24 VDC
• Power Consumption:
  • 9 VA (AC)
  • 3.5 W (DC)
• Inputs:
  • 1-Channel or 2-Channel Safety Circuit
  • Cross-Short Detection Supported
• Safety Outputs:
  • 7 Normally Open (NO)
  • 1 Normally Closed (NC)
• Semiconductor Outputs:
  • 1 Signaling Output
• Reset Modes:
  • Automatic
  • Manual
  • Monitored
• Functions:
  • Emergency Stop Monitoring
  • Safety Gate Monitoring
  • Feedback Loop Monitoring
  • Start-Up Test
• Terminal Type: Integrated Screw Terminals
• Width: 90 mm
• Certifications:
  • TÜV
  • cULus Listed
  • CE
  • UKCA
  • CCC
  • EAC

Dimensions:

• Width: 90 mm (3.54 in)
• Compact DIN rail-mounted industrial safety relay enclosure.

Weight:

• Approximate Weight: 0.59 kg (1.30 lb).
