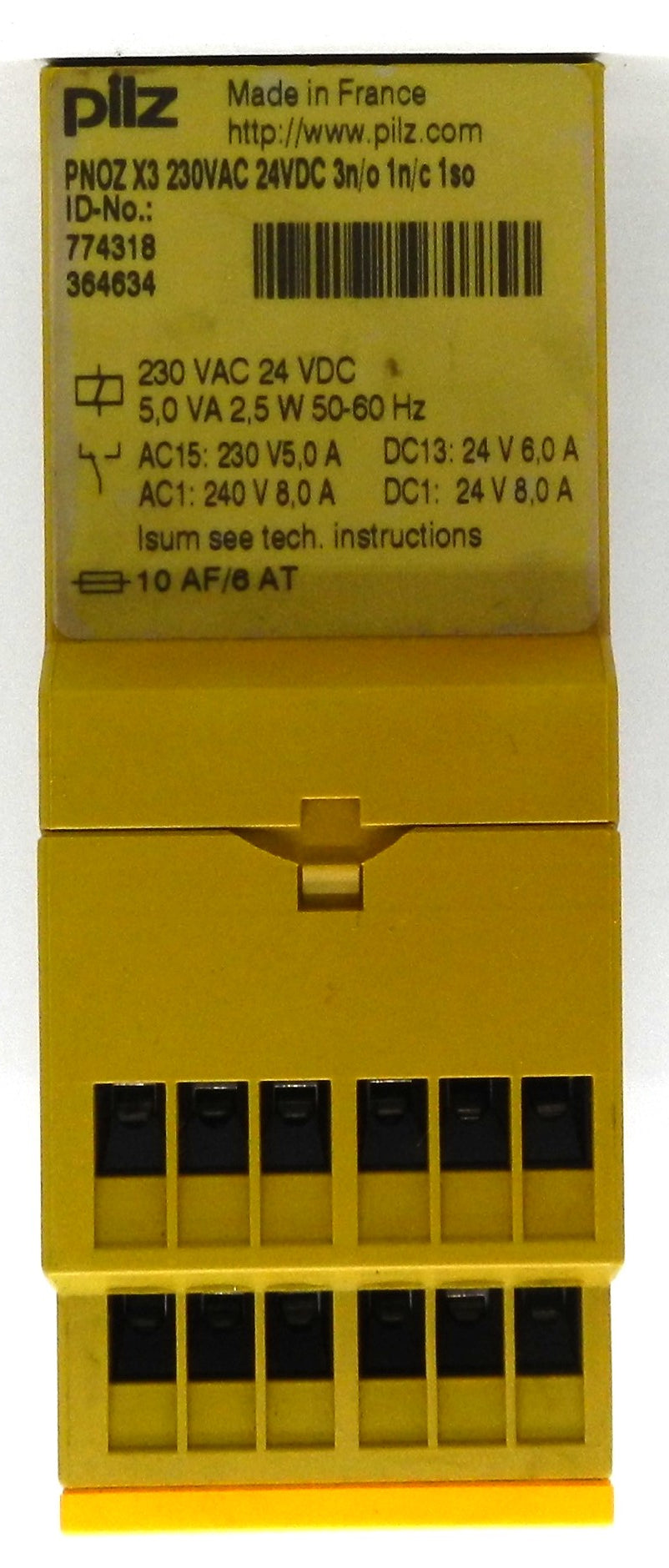

PNOZ X3 230VAC 24VDC 3NO 1NC 1SO Pilz Safety Relay Emergency Stop & Safety Gate Monitoring

Description:

• Genuine Pilz PNOZ X3 safety relay for monitoring emergency stop circuits, safety gates, and safety control systems
• Operates with 230 VAC supply voltage and 24 VDC control voltage
• Features 3 Normally Open (3 NO) safety contacts, 1 Normally Closed (1 NC) auxiliary contact, and 1 semiconductor output (1 SO) for status monitoring
• Supports single-channel or dual-channel safety input wiring with cross-short detection
• Automatic or monitored manual reset/start configuration
• Designed for emergency stop buttons, guard doors, safety interlocks, and machine safety circuits
• Compact 45 mm housing with integrated screw terminals for easy DIN rail installation
• TÜV-certified safety relay suitable for Category 4 / PL e safety applications when properly configured
• Ideal for industrial automation, machine safety, robotics, packaging equipment, manufacturing, and process control systems
• Pilz Product ID 774318.

Specifications:

• Manufacturer Name: Pilz
• Part Number (MPN): PNOZ X3 230VAC 24VDC 3NO 1NC 1SO
• Product ID: 774318
• Product Series: PNOZ X
• Product Type: Safety Relay
• Supply Voltage (U1): 230 VAC
• Secondary Supply Voltage (U2): 24 VDC
• Power Consumption: 5 VA
• Safety Outputs:
  • 3 Normally Open (NO)
  • 1 Normally Closed (NC)
• Semiconductor Outputs: 1
• Input Channels: 1 or 2
• Start Modes:
  • Automatic Start
  • Monitored Manual Start
• Safety Functions:
  • Emergency Stop Monitoring
  • Safety Gate Monitoring
  • Feedback Loop Monitoring
  • Cross-Short Detection
• Terminal Type: Integrated Screw Terminals
• Mounting Type: 35 mm DIN Rail
• Housing Width: 45 mm
• Operating Temperature: -20°C to +55°C
• Approvals:
  • TÜV
  • CE
  • cULus Listed
  • UKCA
  • EAC
  • CCC
  • KOSHA

Dimensions:

• Width: 45 mm (1.77 in)
• DIN rail-mounted compact housing.

Weight:

• Approximate Weight: 0.45 kg (0.99 lb).
