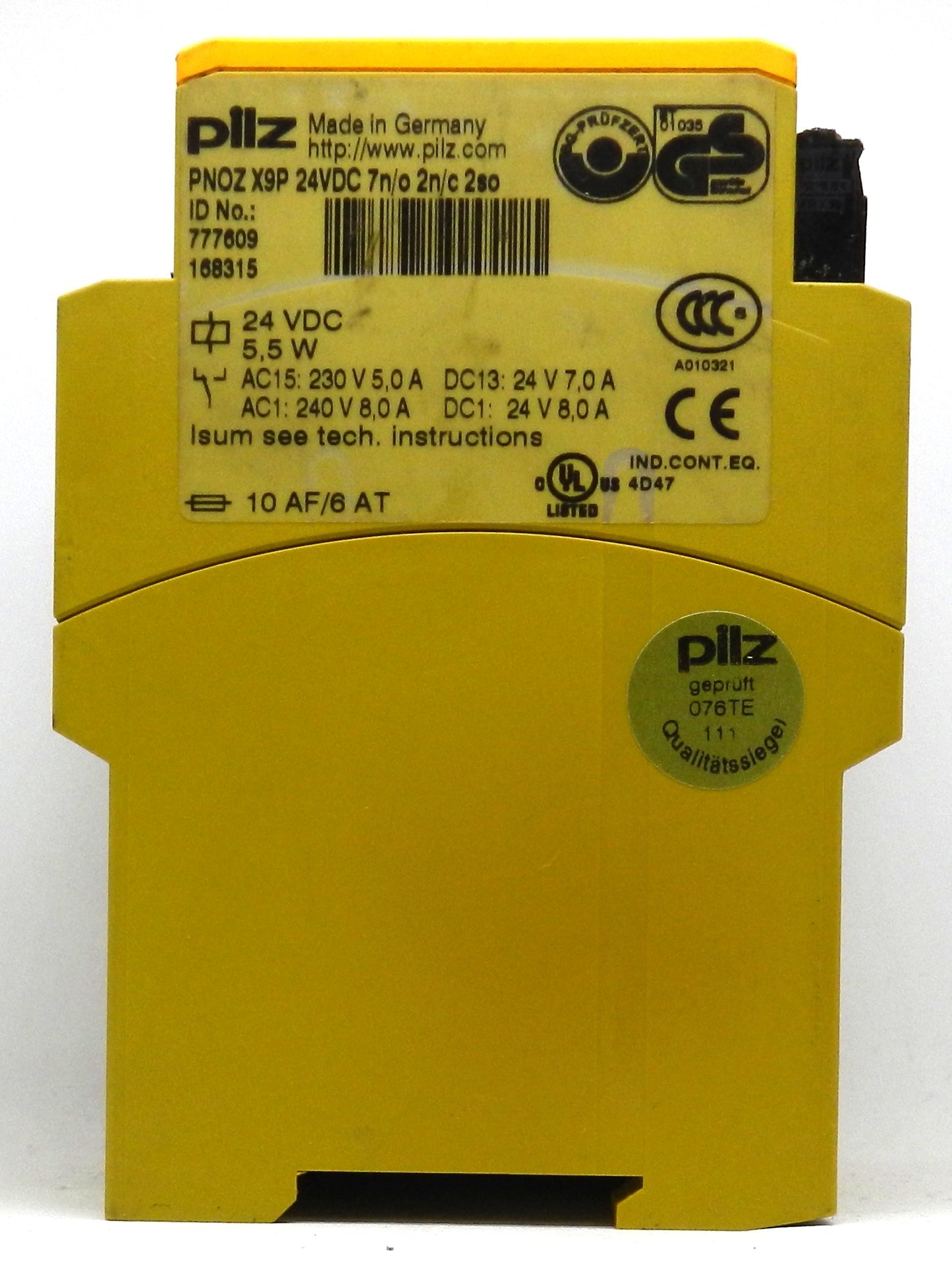

PNOZ X9P Pilz 24VDC Safety Relay 7NO 2NC 2 Semiconductor Outputs 777609

Description:

• Genuine Pilz PNOZ X9P standalone safety relay for industrial machine safety and automation systems
• Manufacturer product number: 777609
• Operates from a 24 VDC supply
• Provides 7 Normally Open (N/O) safety contacts, 2 Normally Closed (N/C) auxiliary contacts, and 2 semiconductor outputs
• Supports 1-channel or 2-channel input wiring with or without detection of shorts across contacts
• Supports automatic and monitored start configurations
• Designed for monitoring emergency-stop circuits, safety gates, and light curtains
• Features plug-in screw terminals for convenient installation and maintenance
• Compact 90 mm width housing for control cabinet installation
• Suitable for industrial machinery, production equipment, automated systems, safety circuits, and OEM control panels
• Official Pilz GTIN: 4046548009248

Specifications:

• Manufacturer: Pilz
• Part Number: PNOZ X9P
• Pilz Product Number: 777609
• GTIN: 4046548009248
• Product Type: Safety Relay
• Product Family: PNOZ X
• Supply Voltage: 24 VDC
• Power Consumption: 5.5 W
• Number of Inputs: 2
• Safety Contacts: 7 N/O
• Auxiliary Contacts: 2 N/C
• Semiconductor Outputs: 2
• Safety Contact Rating, AC1: 240 VAC, up to 8 A
• Safety Contact Rating, DC1: 24 VDC, up to 8 A
• AC15 Rating: 230 VAC, up to 5 A
• DC13 Rating: 24 VDC, up to 7 A
• Start Modes: Automatic / Monitored
• Input Configuration: 1-Channel / 2-Channel
• Short-Circuit Detection: With or Without Cross-Short Detection
• Terminal Type: Plug-In Screw Terminals
• Width: 90 mm
• Applications:
  • Emergency Stop Monitoring
  • Safety Gate Monitoring
  • Light Curtain Monitoring
  • Machine Safety
  • Industrial Automation
  • Safety Control Panels
• Approvals:
  • CE
  • UKCA
  • cULus Listed
  • TÜV
  • CCC
  • EAC

Dimensions:

• Width: 90 mm (3.54 in)
• DIN-rail/control-cabinet safety relay design

Weight:

• Approximate weight varies by configuration; verify the unit label or packaging for shipping weight.
