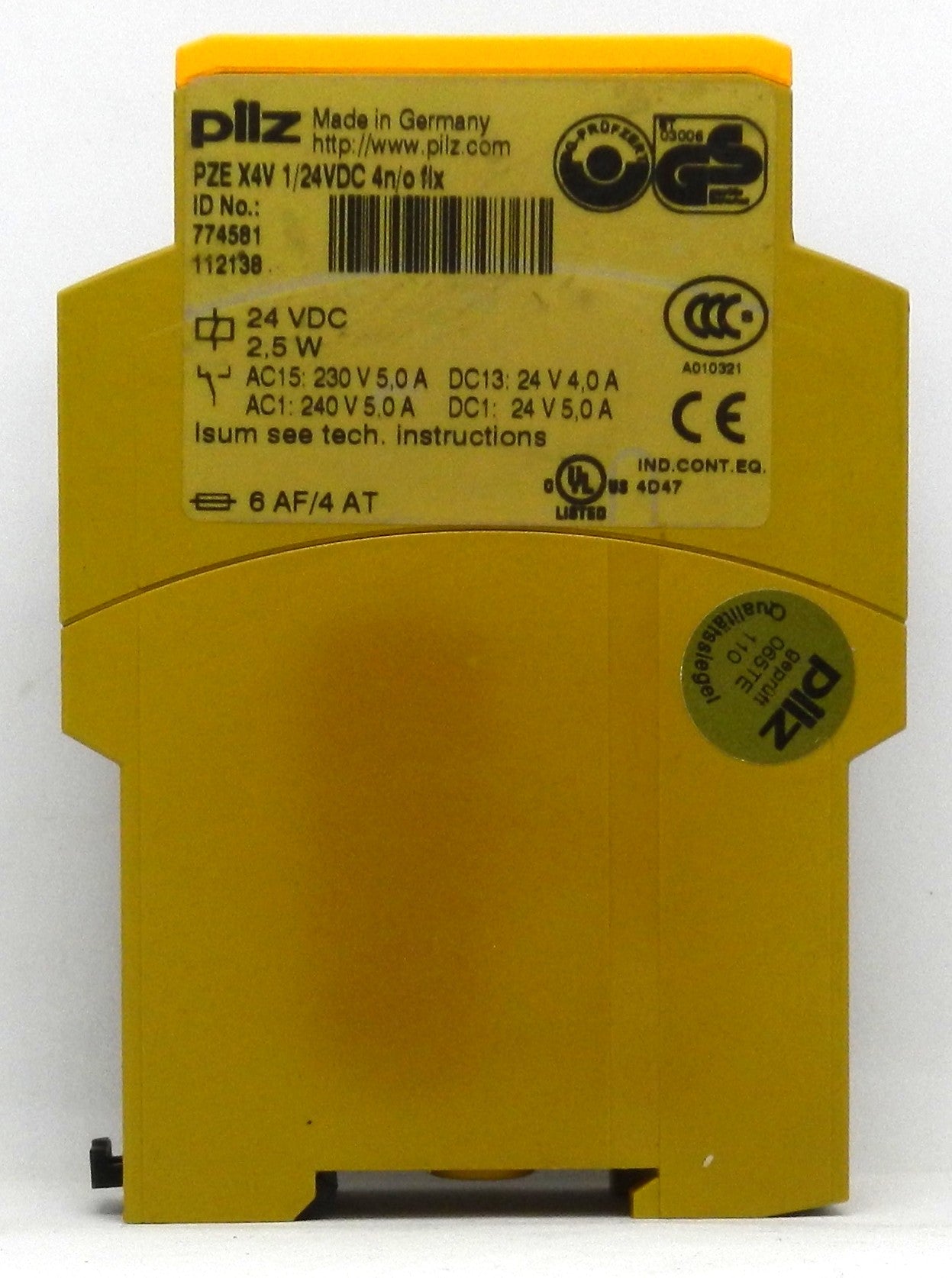

PZE X4V 1/24VDC 4N/O FIX Pilz 774581 Safety Relay Contact Expansion 24VDC 1-Second Delay

Description:

• Genuine Pilz PZE X4V safety relay contact expansion module for industrial machine safety applications
• Product ID 774581
• Provides 4 normally open (4 N/O) time-delayed safety contacts
• Operates from a 24 VDC supply
• Features a fixed 1-second delay-on de-energisation
• Designed for contact expansion in combination with safety-related control components
• Supports 1-channel input wiring
• Integrated screw terminals provide secure industrial wiring connections
• Compact 22.5 mm housing saves DIN rail space inside control panels
• Suitable for emergency-stop circuits, safety gates, machine guarding, and other industrial safety systems
• Approved to major international standards including CE, UKCA, cULus, TÜV, CCC, and EAC

Specifications:

• Manufacturer Name: Pilz
• Part Number / Product ID: 774581
• Model: PZE X4V 1/24VDC 4N/O FIX
• Product Type: Safety Relay / Contact Expansion Module
• Supply Voltage: 24 VDC
• Power Consumption: 2.5 W
• Number of Inputs: 1
• Input Wiring: 1-Channel
• Safety Outputs: 4 N/O
• Output Type: Time-Delayed Relay Contacts
• Delay Function: Delay-On De-Energisation
• Fixed Delay Time: 1 Second
• Terminal Type: Integrated Screw Terminals
• Relay Contact Material: AgCuNi + 0.2 µm Au
• UL Safety Contact Rating: 250 VAC
• Pilot Duty Rating: B300 / R300
• Width: 22.5 mm
• Ambient Operating Temperature: -10°C to +55°C
• Relative Humidity: 93% RH at 40°C
• GTIN: 4046548010817
• Approvals:
  • CE
  • UKCA
  • cULus Listed
  • TÜV
  • CCC
  • EAC
• Applications:
  • Emergency Stop Systems
  • Safety Gate Monitoring
  • Machine Guarding
  • Safety Control Systems
  • Industrial Automation
  • Contact Expansion
  • Machine Safety Circuits

Dimensions:

• Width: 22.5 mm
• Compact DIN-rail safety relay housing

Weight:

• Approximate Weight: 0.21 kg (0.46 lb)
