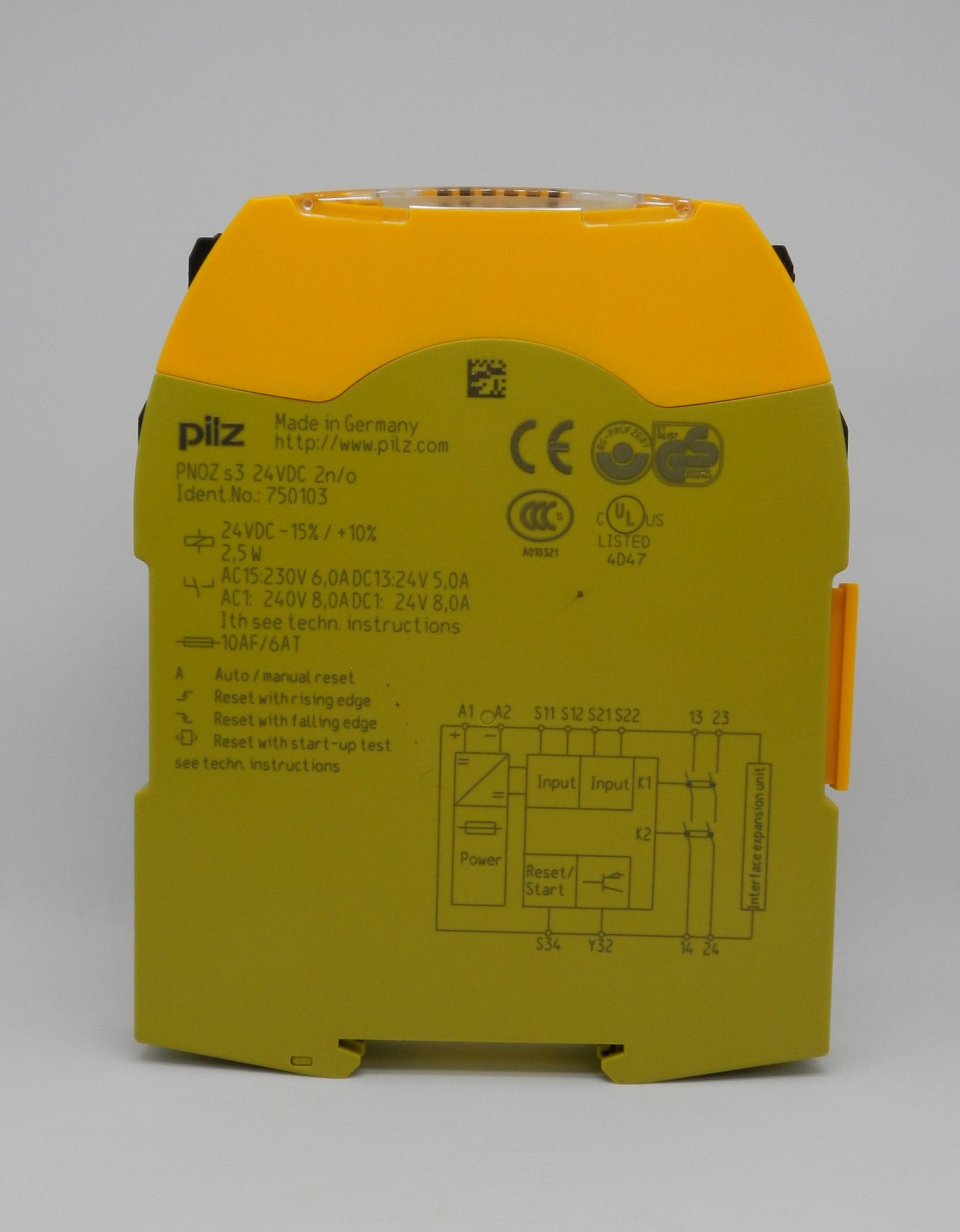

750103 Pilz PNOZ s3 Safety Relay 24VDC 2NO Emergency Stop Safety Monitoring Relay

Description:

• Genuine Pilz PNOZsigma safety relay for industrial machine safety and emergency stop monitoring
• Part Number: 750103 (PNOZ s3)
• Operates on 24 VDC supply voltage
• Features 2 safety Normally Open (NO) relay outputs and 1 semiconductor output
• Supports single-channel and dual-channel safety circuits with optional short-circuit detection
• Suitable for monitoring emergency stop (E-STOP) buttons, safety gates, interlock switches, and light curtains
• Supports manual or automatic reset configuration
• Compact 17.5 mm DIN rail housing saves valuable control panel space
• Plug-in screw terminal design allows quick installation and maintenance
• Designed for high-performance machine safety applications in manufacturing, packaging, robotics, material handling, and industrial automation
• Certified for use in safety-related control systems and compliant with international safety standards.

Specifications:

• Manufacturer Name: Pilz
• Part Number (MPN): 750103
• Product Series: PNOZsigma
• Model: PNOZ s3
• Product Type: Safety Relay
• Supply Voltage: 24 VDC
• Power Consumption: 2.5 W
• Number of Inputs: 2
• Safety Outputs:
  • 2 Normally Open (NO) Relay Contacts
  • 1 Semiconductor Output
• Relay Contact Rating:
  • 6 A @ 240 VAC (AC1)
  • 6 A @ 24 VDC (DC1)
  • 5 A @ 230 VAC (AC15)
  • 5 A @ 24 VDC (DC13)
• Operating Modes:
  • Single-Channel
  • Dual-Channel
  • Manual Reset
  • Automatic Reset
  • Short-Circuit Detection
• Connection Type: Plug-In Screw Terminals
• Mounting: 35 mm DIN Rail
• Housing Protection: IP40
• Operating Temperature: -10°C to +55°C
• Certifications:
  • CE
  • TÜV
  • cULus Listed
  • UKCA
  • CCC
  • EAC
  • KOSHA
• Typical Applications:
  • Emergency Stop Monitoring
  • Safety Gate Monitoring
  • Light Curtain Monitoring
  • Machine Safety Systems
  • Industrial Automation
  • Robotics
  • Packaging Equipment
  • OEM Machinery

Dimensions:

• Height: 98 mm (3.86 in)
• Width: 17.5 mm (0.69 in)
• Depth: 120 mm (4.72 in)

Weight:

• Approximate Weight: 0.14 kg (0.31 lb).
