Poweramp Challenger Dock Leveler Control Panel 230V 3 Phase 115V Control Powerhook System 60Hz

Description

The Poweramp Challenger Dock Leveler Control Panel is an industrial-grade control system designed for operating dock levelers and truck restraint (Powerhook) systems in loading dock applications.

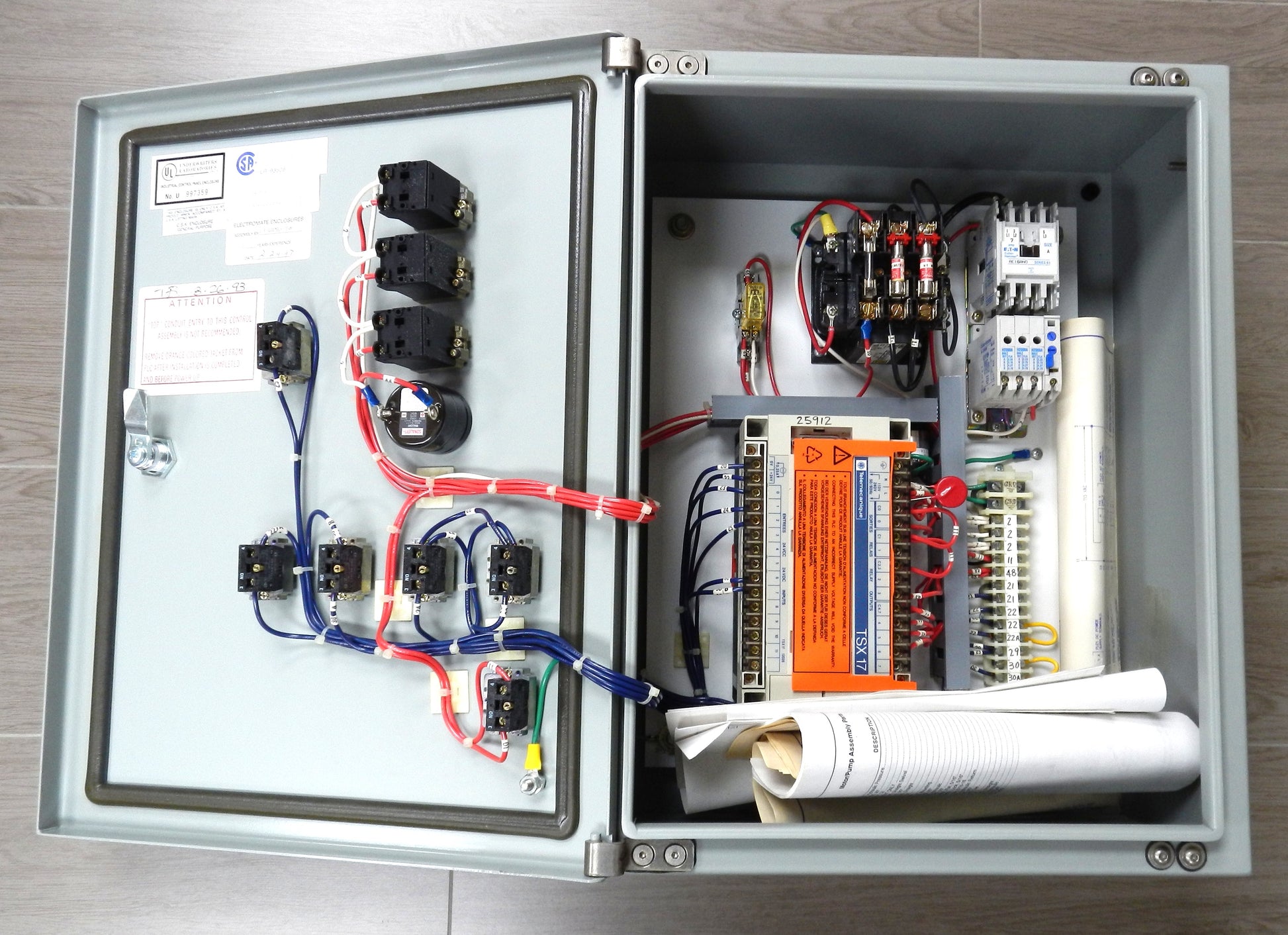

This unit operates on 230V 3-phase power at 60Hz, with integrated 115V control circuitry for system operation. The panel is designed to control and monitor dock equipment, including dock leveler motion, truck restraint locking/unlocking, and system safety functions.

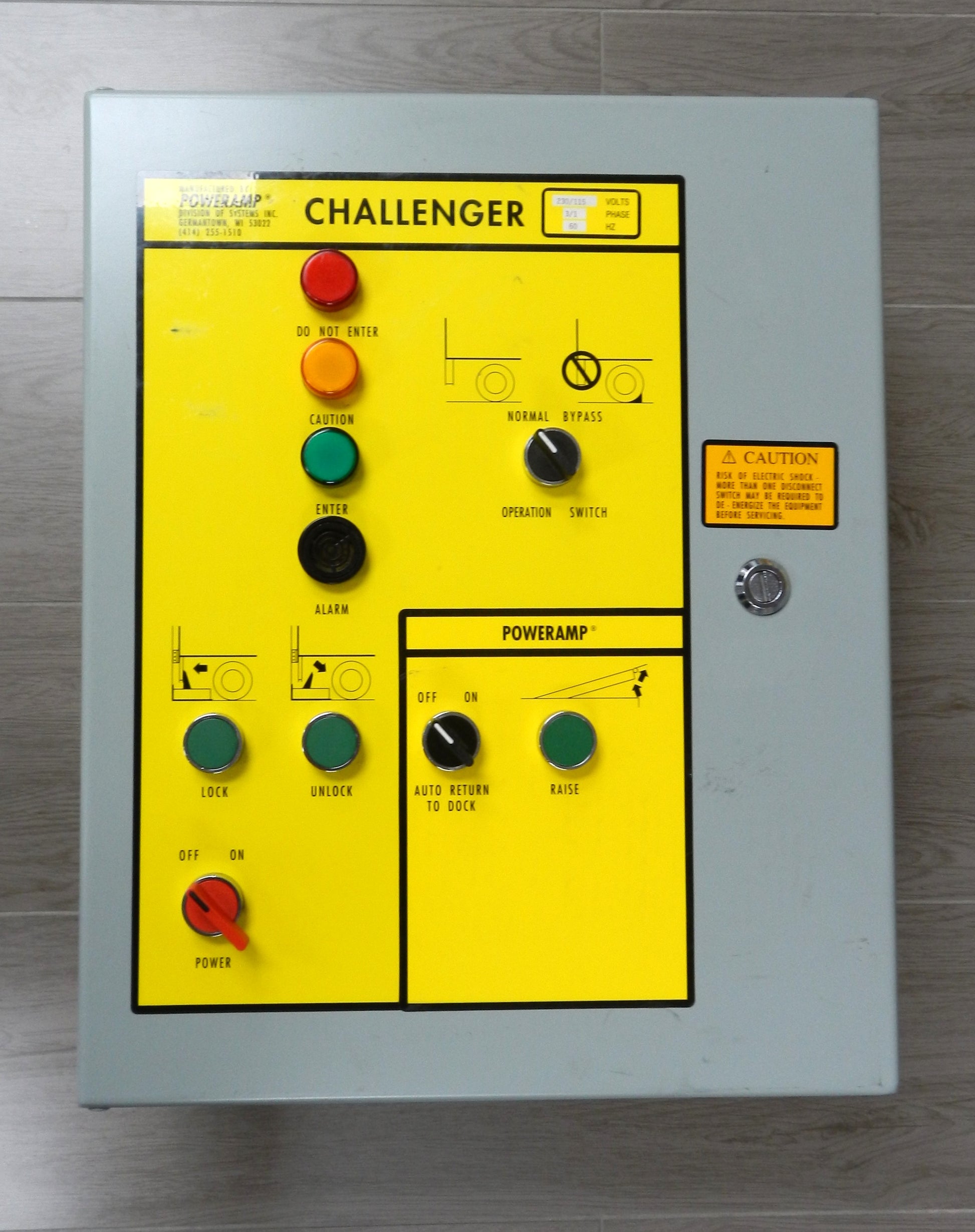

The control panel includes multiple operator controls such as lock, unlock, raise, auto return to dock, and operation selector, along with visual indicators and alarm functionality to ensure safe and efficient operation.

This listing includes the original wiring diagram, clearly showing field wiring requirements, control connections, and installation layout for professional use.

Suitable for warehouses, distribution centers, and industrial loading docks, this unit is ideal for replacement, retrofit, or new installation projects.

Key Specifications

Manufacturer: Poweramp
Series: Challenger
Product Type: Dock Leveler / Truck Restraint Control Panel
Primary Voltage: 230 VAC
Phase: 3 Phase
Frequency: 60 Hz
Control Voltage: 115 VAC
Enclosure: NEMA 4 / 12 / 13 Rated (per diagram)
Control Functions: Lock, Unlock, Raise, Auto Return, Operation Selector
Indicators: Status lights and alarm
Wiring: Field wiring required (per included diagram)
Included: Wiring Diagram / Installation Sheet
Mounting: Wall Mount Enclosure
Application: Dock levelers, truck restraint systems, loading dock automation
