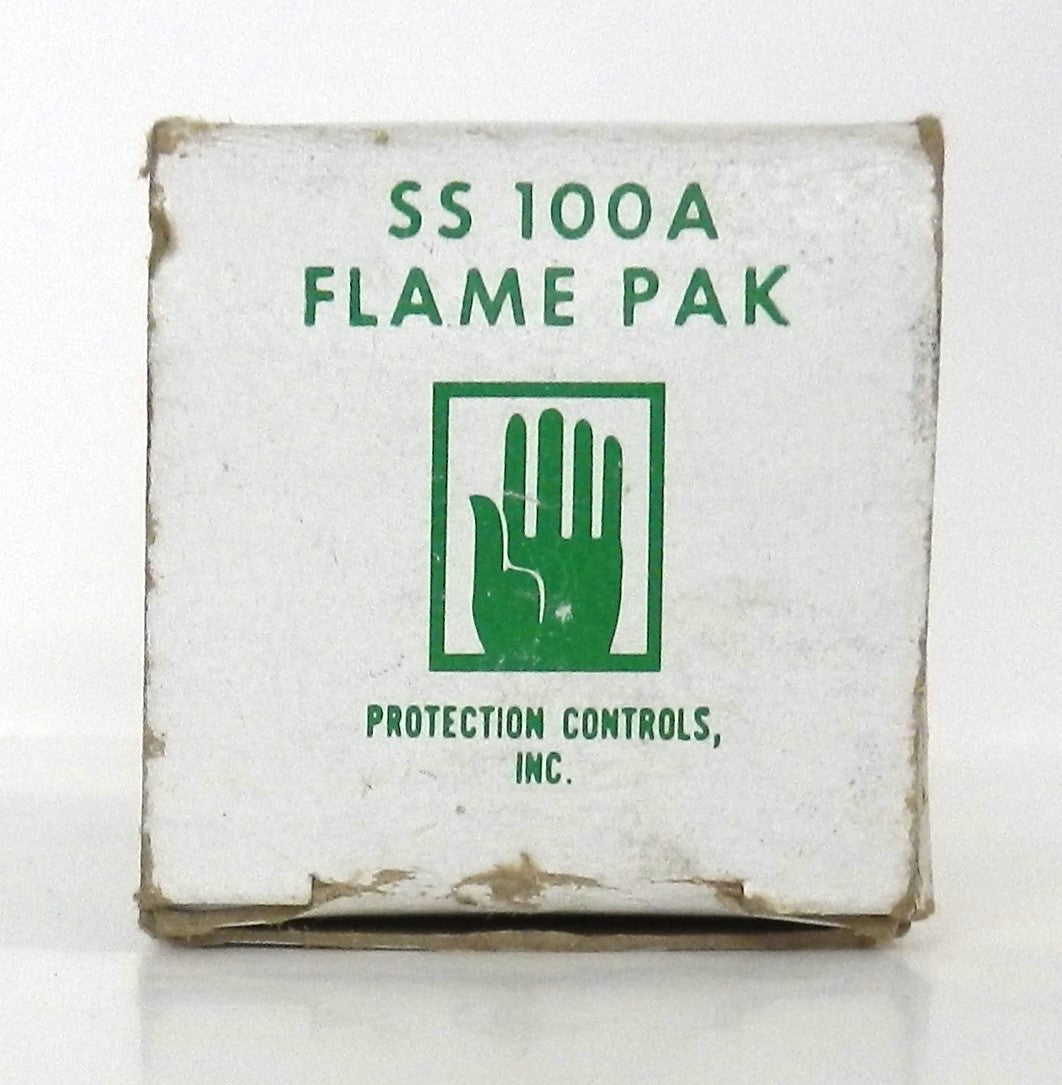

SS-100A Protection Controls Flame-Pak Flame Safety Relay 7-Pin 2-4 Second Response

Description:

• Genuine Protection Controls SS-100A Flame-Pak electronic flame sensing unit
• Designed for industrial burner and combustion flame monitoring applications
• Uses the flame rectification principle for rapid flame detection
• Flame sensing can be accomplished using a compatible flame rod or UV scanner
• Standard flame response time of approximately 2–4 seconds
• Features a 7-pin plug-in blade-style connection for installation and replacement
• Commonly used in burner management, industrial furnaces, ovens, boilers, and combustion control systems
• Designed to provide reliable flame presence monitoring in industrial heating equipment
• Suitable for maintenance and replacement of existing Protection Controls Flame-Pak systems

Specifications:

• Manufacturer: Protection Controls, Inc.
• Part Number (MPN): SS-100A
• Alternate Part Number: SS100A
• Product Family: Flame-Pak
• Product Type: Flame Safety Relay / Electronic Flame Sensing Unit
• Flame Detection Method: Flame Rectification
• Compatible Flame Sensors:
  • Flame Rod
  • UV Scanner
• Flame Response Time: 2–4 Seconds
• Number of Pins: 7
• Connection Type: Plug-In Blade Style
• Installation Type: Plug-In
• Applications:
  • Industrial Burners
  • Boilers
  • Furnaces
  • Industrial Ovens
  • Combustion Systems
  • Flame Monitoring
  • Burner Control Systems

Dimensions:

• Compact plug-in Flame-Pak relay assembly
• Exact manufacturer dimensions were not confirmed from the available technical information

Weight:

• Approximate Weight: 0.25 lb (0.11 kg)
