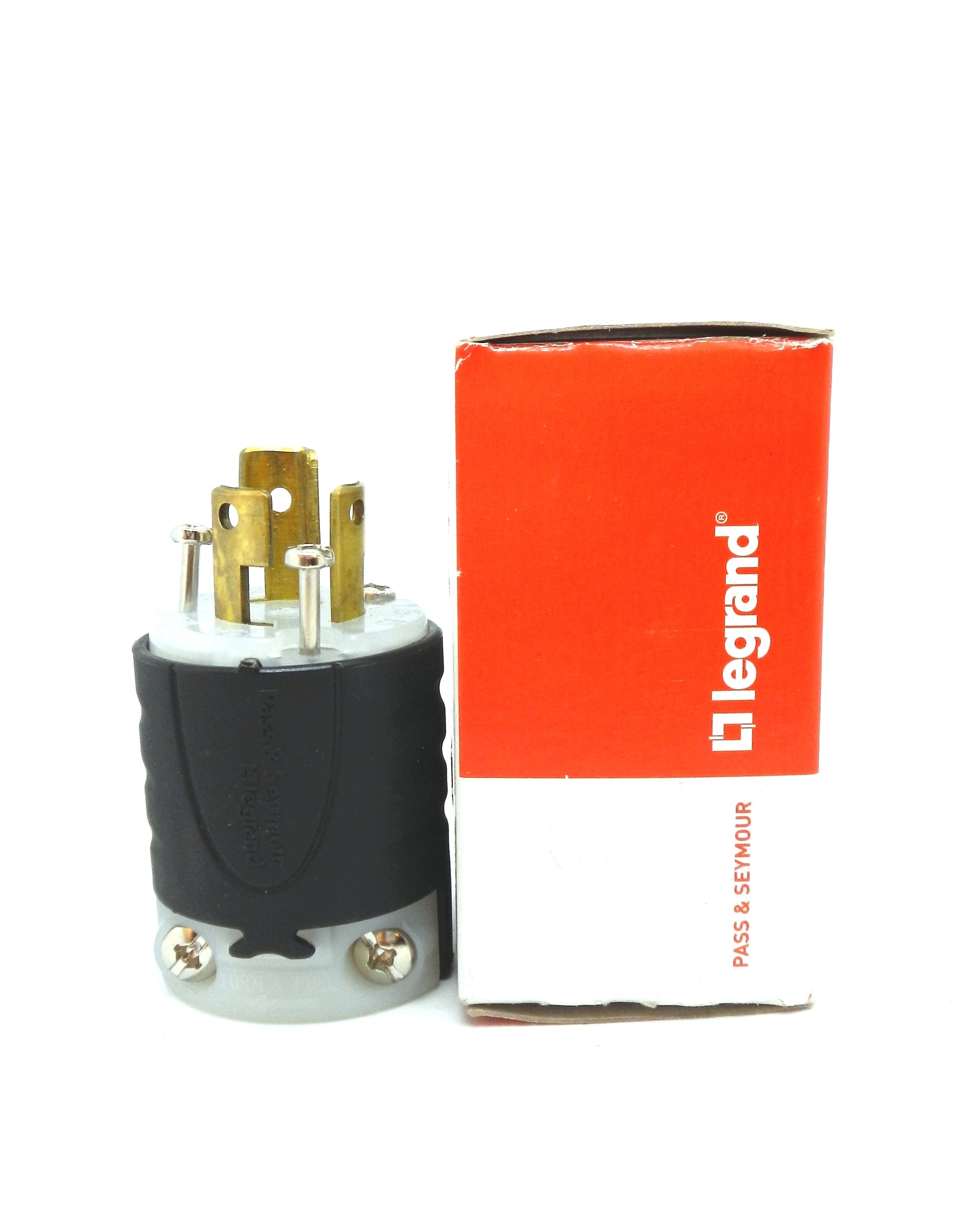

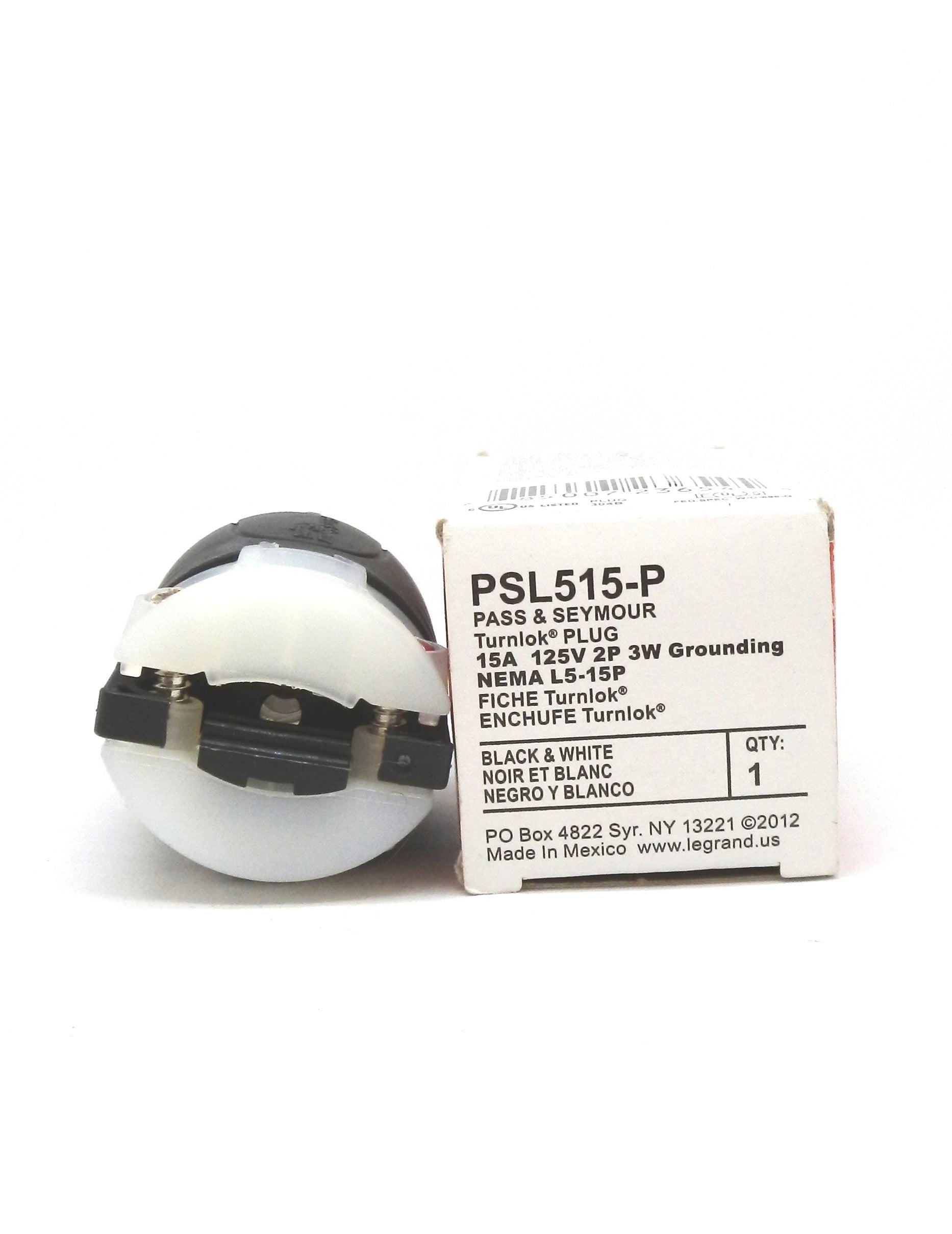

PSL515P Legrand Pass & Seymour 15A NEMA L5-15P Twist-Locking Plug 125V Turnlok Industrial Grade

Description:

• Genuine Legrand Pass & Seymour industrial-grade Turnlok® twist-locking plug
• Rated 15A, 125VAC for demanding commercial and industrial applications
• NEMA L5-15P locking configuration with 2-pole, 3-wire grounding design
• Heavy-duty nylon 6/6 housing provides superior impact, corrosion, and chemical resistance
• Industrial-strength brass alloy blades and contacts minimize heat rise and ensure excellent conductivity
• Raised rib and scalloped housing design provides a secure, non-slip grip for locking and unlocking
• External cord grip and flexible rubber grommet provide excellent cord retention and help prevent contaminants from entering the wiring chamber
• Quick-thread assembly screws come backed out for faster installation
• Ideal for generators, industrial machinery, construction equipment, temporary power distribution, and commercial electrical installations

Specifications:

• Manufacturer Name: Legrand Pass & Seymour
• Part Number (MPN): PSL515P
• Product Line: Turnlok®
• Product Type: Twist-Locking Plug
• NEMA Configuration: L5-15P
• Connector Style: Locking Plug
• Amperage: 15 A
• Voltage Rating: 125 VAC
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Yes
• Terminal Capacity: Up to #4 AWG
• Housing Material: Nylon 6/6
• Contact Material: Brass Alloy
• Mounting Style: Cord-End Plug
• Indoor/Outdoor: Indoor
• Color: Black Back / White Front
• Standards:
  • UL 498
  • cULus Listed
• Country of Origin: Mexico
• Warranty: 1 Year

Dimensions:

• Length: 1.75 in (44.5 mm)
• Width: 1.52 in (38.5 mm)
• Overall Size: Approximately 3.8 in assembled length

Weight:

• Approximate Weight: 0.08 kg (0.17 lb).
