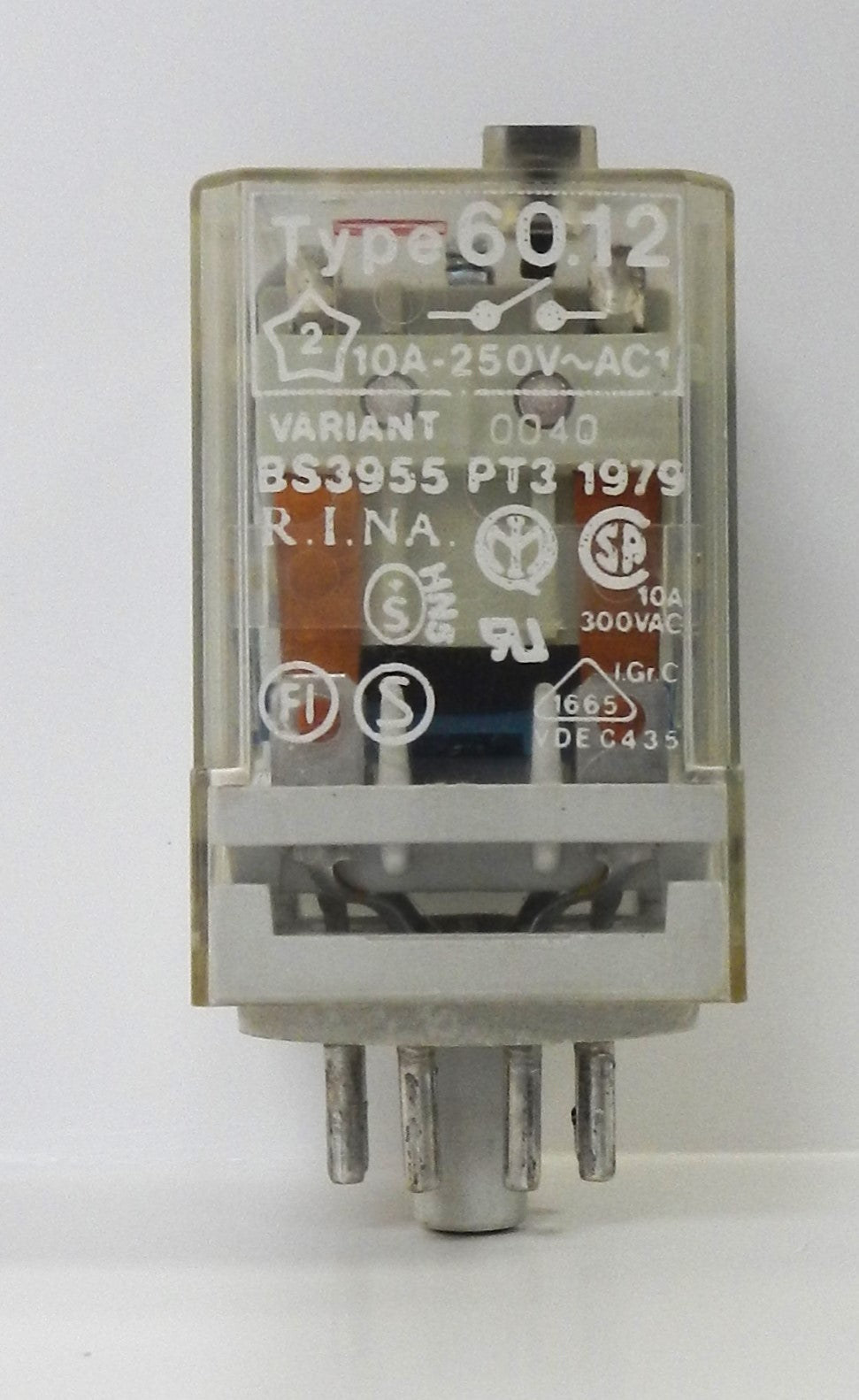

BS3955 PT3 1979 Finder Type 60.12 General Purpose Relay 24VDC DPDT 10A 8-Pin Plug-In

Description:

• Genuine Finder Type 60.12 general purpose industrial relay
• Complies with BS3955 Part 3:1979 and VDE 0435 relay standards
• Features 2 changeover (DPDT / 2CO) contacts rated at 10A
• 24 VDC coil for industrial control and automation applications

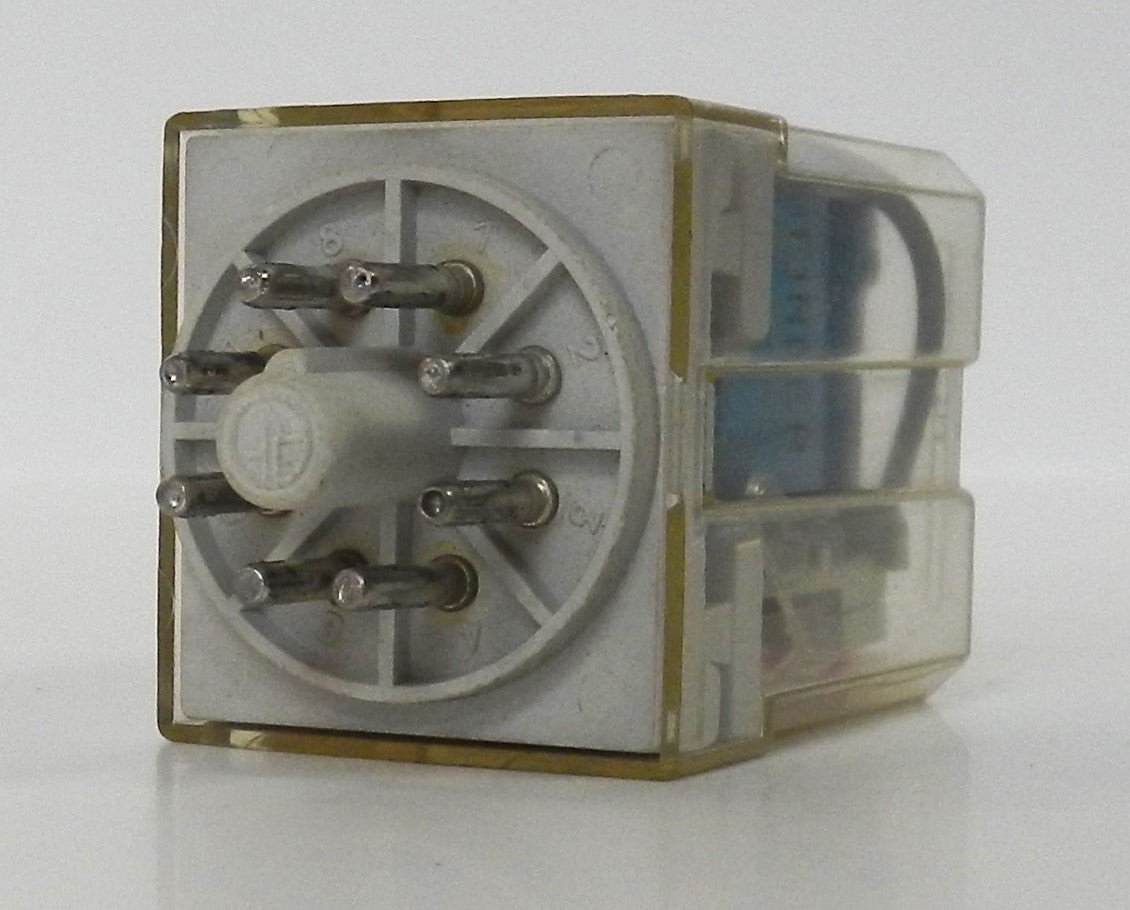

• Standard 8-pin plug-in design compatible with Finder 90 Series relay sockets
• Compact plug-in construction allows quick installation and replacement
• Silver nickel (AgNi) contacts provide reliable switching performance and long service life
• Suitable for switching control circuits, motors, contactors, PLC outputs, alarms, HVAC equipment, lighting systems, and industrial machinery
• Ideal for industrial automation, control panels, OEM equipment, process control, and electrical maintenance
• Part of the proven Finder Series 60 family of general-purpose relays.

Specifications:

• Manufacturer Name: Finder
• Part Number (MPN): Type 60.12
• Reference Standard: BS3955 PT3:1979
• Product Type: General Purpose Relay
• Contact Configuration: 2 CO (DPDT)
• Number of Pins: 8
• Coil Voltage: 24 VDC
• Contact Rating: 10 A
• Rated Switching Voltage:
  • 250 VAC (Rated)
  • 400 VAC (Maximum)
• Maximum Switching Current: 10 A
• Contact Material: AgNi (Silver Nickel)
• Mounting Type: Plug-In Socket
• Compatible Socket: Finder 90 Series
• Rated Coil Power: 1.3 W (DC)
• Mechanical Life: 50 Million Operations
• Electrical Life: 250,000 Operations (AC1 Rated Load)
• Operating Temperature: -40°C to +70°C
• Applications:
  • PLC Systems
  • Industrial Automation
  • Control Panels
  • HVAC Systems
  • Machine Control
  • OEM Equipment
  • Lighting Control
  • Process Control

Dimensions:

• Height: 54.2 mm (2.13 in)
• Width: 36.4 mm (1.43 in)
• Depth: 32.5 mm (1.28 in).

Weight:

• Approximate Weight: 0.08 kg (0.18 lb).
