HONEYWELL

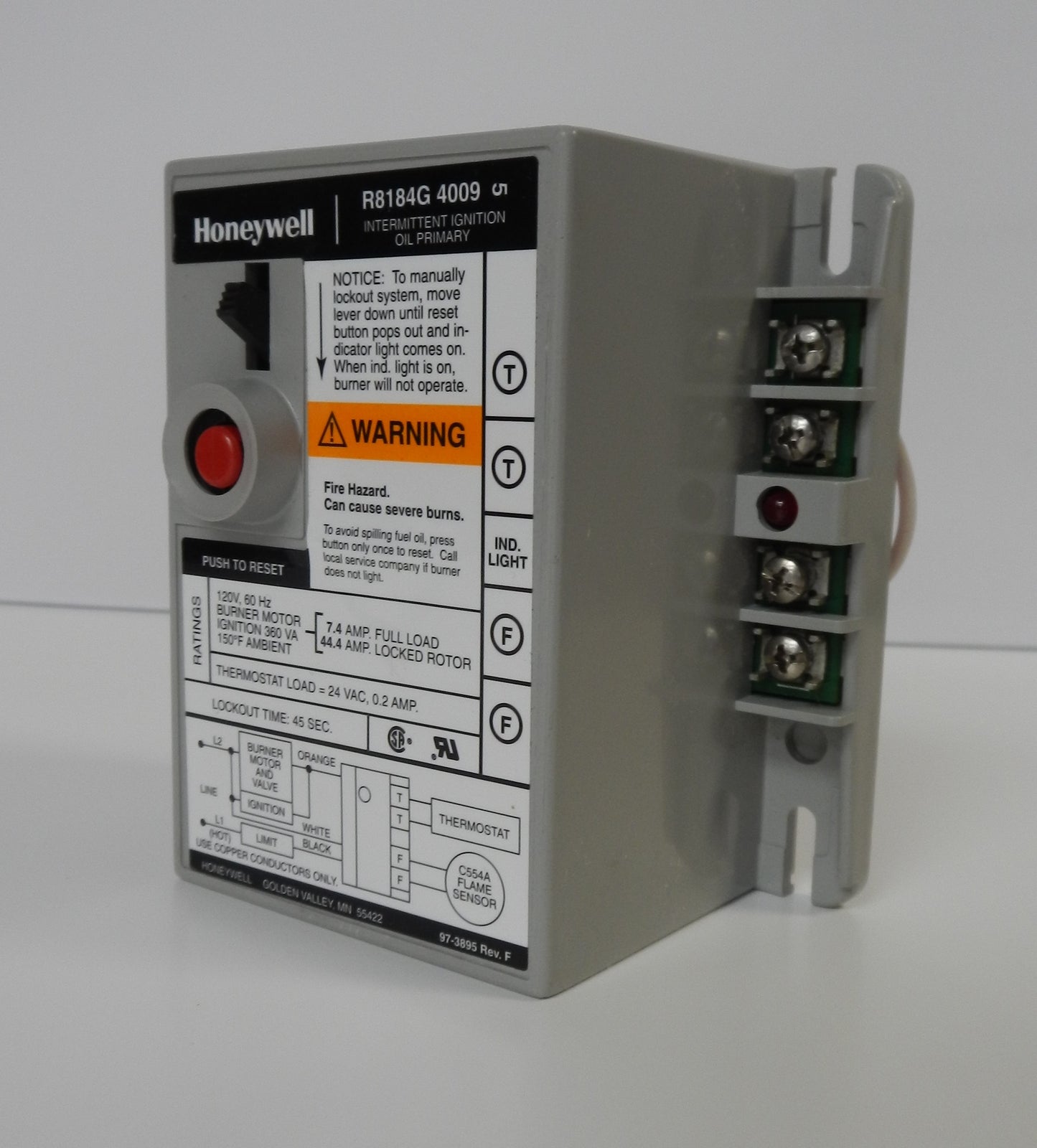

R8184G-4009 Honeywell Protectorelay Oil Burner Primary Control 120/240VAC 45-Second Safety Switch

$179.99 CAD

Sale Sold out

Style REFURBISH

Description:

Genuine Honeywell (Resideo) Protectorelay® primary oil burner control for residential and light commercial oil-fired heating systems
Provides automatic, non-recycling control of intermittent ignition oil burner systems
Controls the burner motor, ignition transformer, and optional oil valve in response to a thermostat call for heat
Features a 45-second flame-establishing safety timing with automatic lockout for burner protection
Solid-state flame sensing circuit designed for use with a Honeywell C554 Cadmium Sulfide (Cad Cell) Flame Detector
Built-in LED lockout indicator simplifies diagnostics and troubleshooting
Includes an external manual reset button and manual trip lever for safe servicing
Mounts directly on a standard 4 in. × 4 in. junction box or selected oil burner housings
Ideal for residential oil furnaces, oil boilers, and oil-fired heating equipment
UL Listed and CSA Certified for dependable HVAC applications.

Manufacturer Name: Honeywell (Resideo)
Part Number (MPN): R8184G-4009
Alternate Part Number: R8184G4009/U
Product Type: Oil Burner Primary Control
Series: Protectorelay®
Control Type: Automatic, Non-Recycling
Ignition Type: Intermittent
Safety Timing: 45 Seconds
Voltage Rating:
- 120 VAC, 50/60 Hz
- 240 VAC, 50/60 Hz
Full Load Rating:
- 7.4 A @ 120 VAC
- 3.7 A @ 240 VAC
Locked Rotor Rating:
- 44.4 A @ 120 VAC
- 22.2 A @ 240 VAC
Flame Detection: Cadmium Sulfide (Cad Cell)
Mounting:
- Standard 4 × 4 in. Junction Box
- Direct Burner Mount (Selected Models)
Operating Temperature: -40°F to +130°F (-40°C to +54°C)
Features:
- LED Lockout Indicator
- External Reset Button
- Manual Safety Trip Lever
- Solid-State Flame Sensing
Certifications:
- UL Listed
- CSA Certified
Applications:
- Oil Furnaces
- Oil Boilers
- Residential Heating Systems
- Oil Burner Controls
- HVAC Equipment
