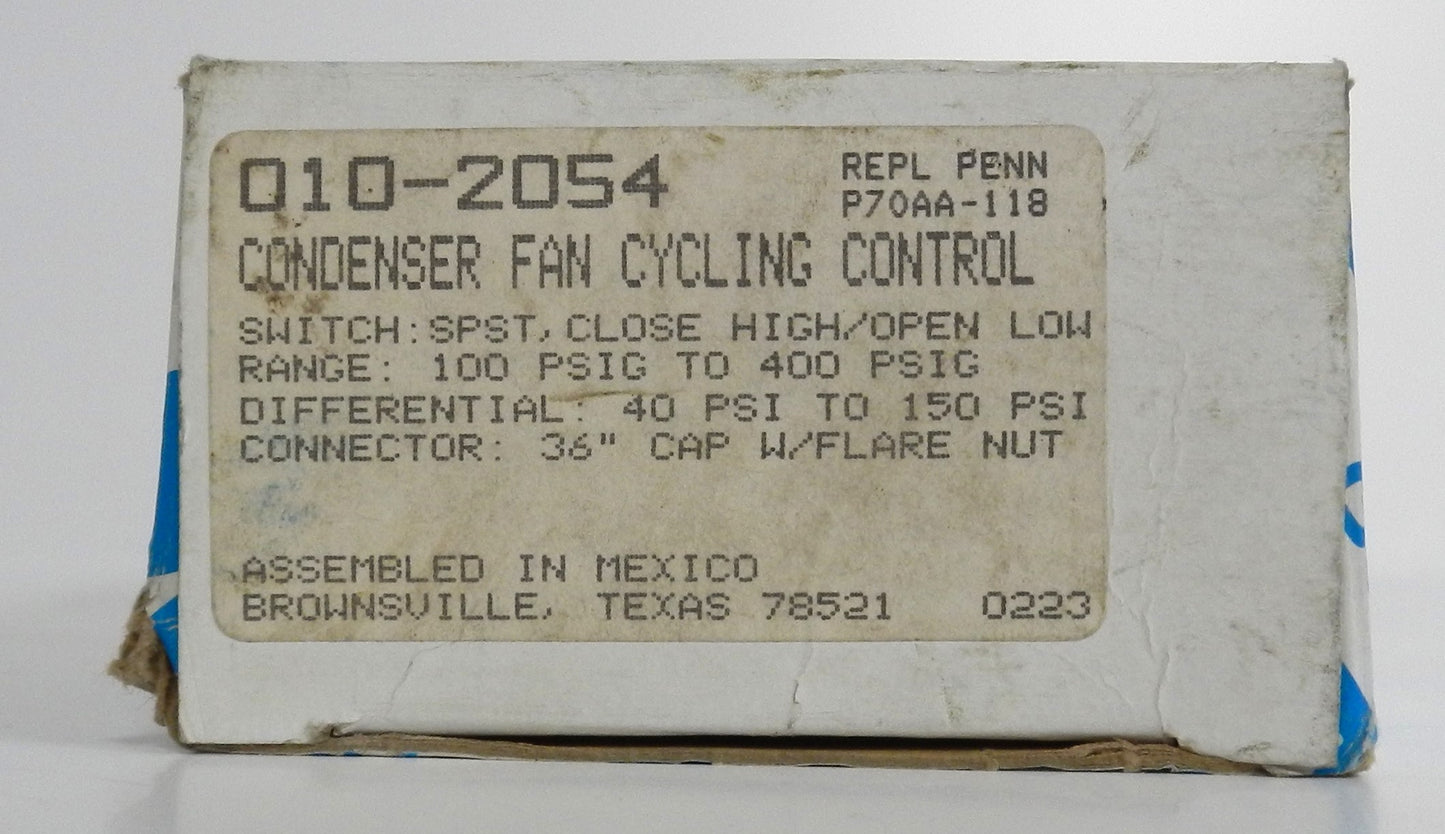

010-2054 Ranco Fan Cycling Control High Pressure SPST 100–400 PSIG Automatic Reset

Description:

• Genuine Ranco high-pressure fan cycling control for commercial refrigeration and air conditioning systems
• Designed to maintain proper condenser head pressure by automatically cycling the condenser fan during low ambient temperature operation
• Operating pressure range of 100–400 PSIG with an adjustable 40–150 PSI differential
• SPST (Single Pole Single Throw) switch configuration
• Closes on High Pressure / Opens on Low Pressure
• Automatic reset operation for reliable condenser fan control
• Features a 36-inch capillary tube with 1/4 in. SAE flare nut pressure connection
• Heavy-duty NEMA 1 enclosure with plated steel frame for industrial durability
• Suitable for direct control of condenser fan motors or pilot-duty control through a contactor
• Ideal for commercial refrigeration systems, walk-in coolers, freezers, HVAC condensers, and air conditioning equipment

Specifications:

• Manufacturer Name: Ranco (Robertshaw)
• Part Number (MPN): 010-2054
• Alternate Part Number: O10-2054
• Product Type: Fan Cycling Control / High Pressure Control
• Switch Type: SPST
• Switch Action:
  • Closed on High Pressure
  • Open on Low Pressure
• Pressure Range: 100–400 PSIG
• Differential Pressure: 40–150 PSI
• Reset Type: Automatic
• Pressure Connection: 1/4 in. SAE Flare Nut
• Capillary Length: 36 in.
• Enclosure Rating: NEMA 1
• Frame Material: Plated Steel
• Electrical Rating:
  • 24 FLA @ 120/240 VAC
  • 144 LRA @ 120/240 VAC
  • 720 VA Pilot Duty @ 120/240 VAC
• Approvals:
  • UL
  • cUL
  • CE
• Applications:
  • Commercial Refrigeration
  • Air Conditioning Systems
  • Condenser Fan Control
  • Walk-In Coolers
  • Walk-In Freezers
  • HVAC Equipment

Dimensions:

• Height: 3.25 in. (82.6 mm)
• Width: 3.50 in. (88.9 mm)
• Length: 2.00 in. (50.8 mm)

Weight:

• Approximate Weight: 0.42 kg (0.92 lb).
