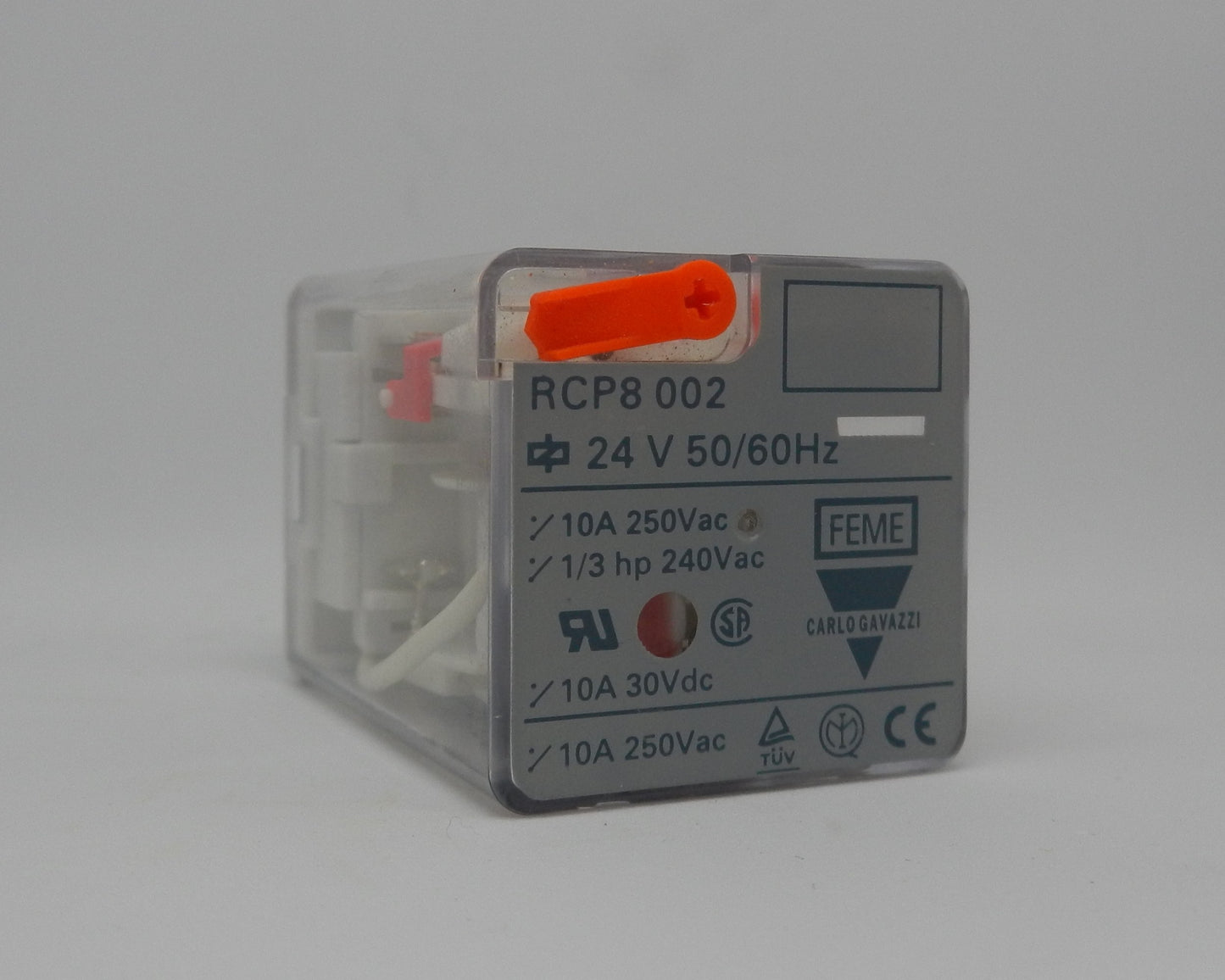

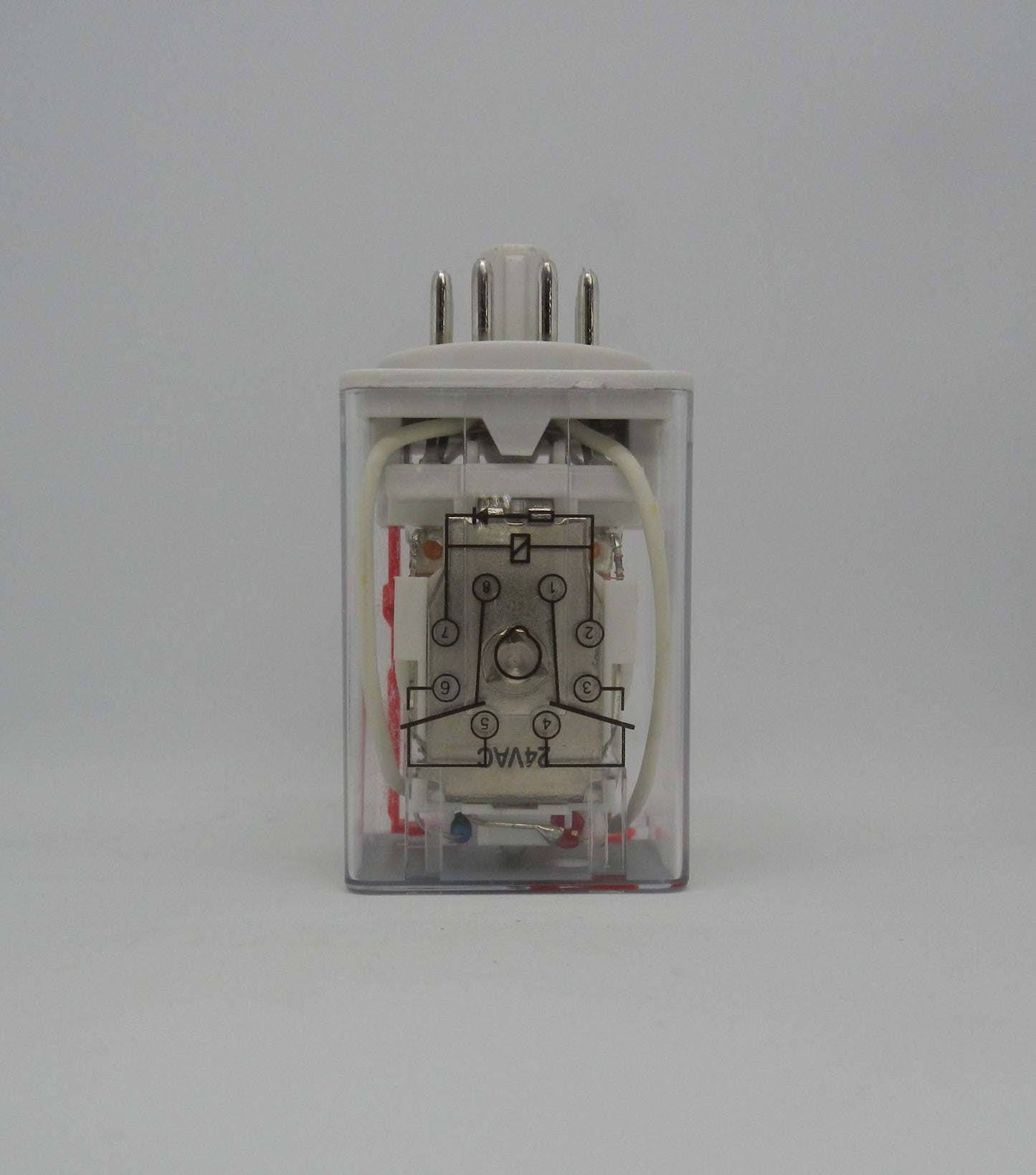

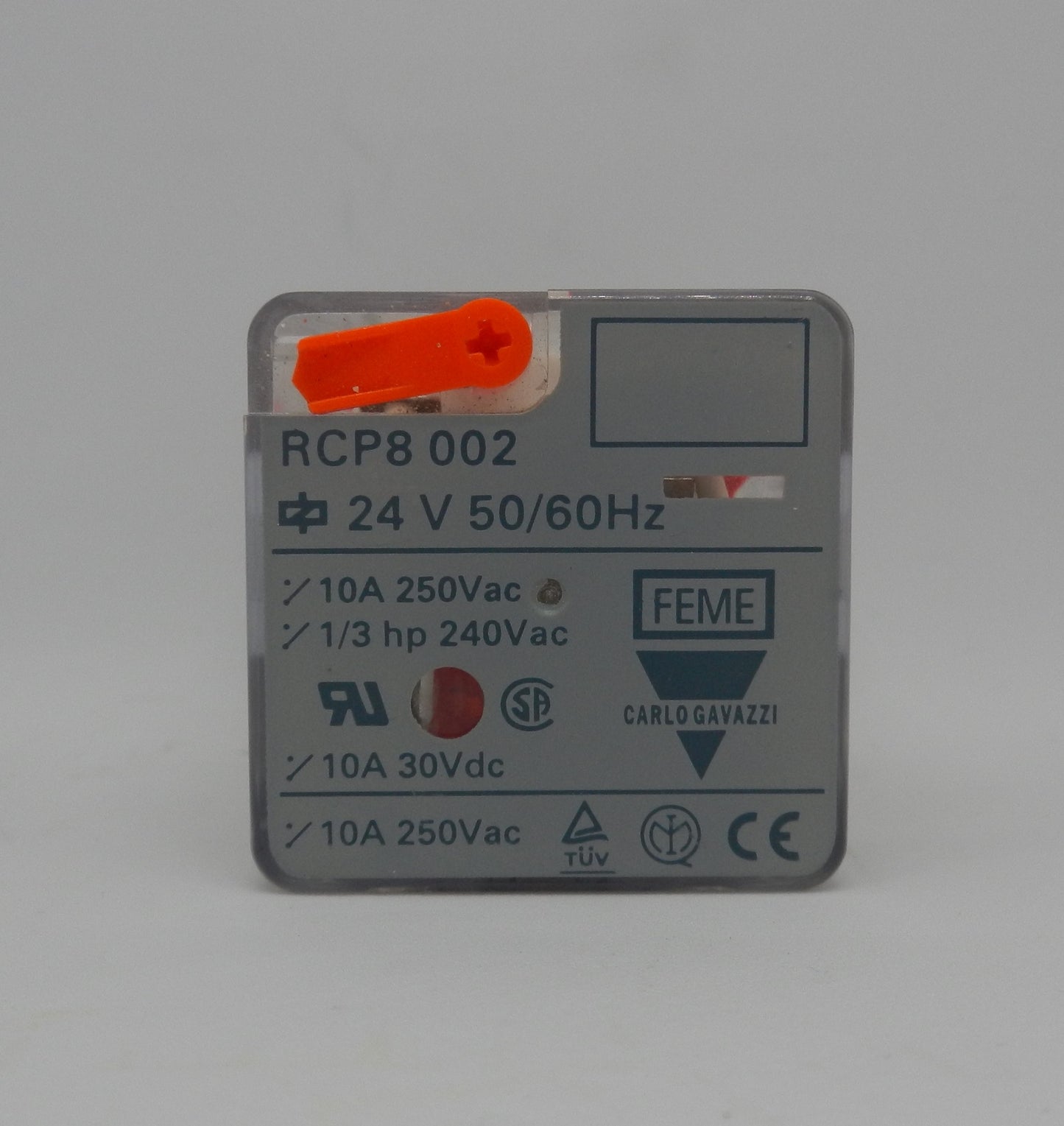

RCP8 002 FEME Carlo Gavazzi 8-Pin Industrial Relay DPDT 10A Plug-In Electromechanical Relay

Description:

• Genuine FEME / Carlo Gavazzi industrial plug-in electromechanical relay for industrial automation and control applications
• Features 2 changeover contacts (DPDT / 2 Form C) rated at 10A

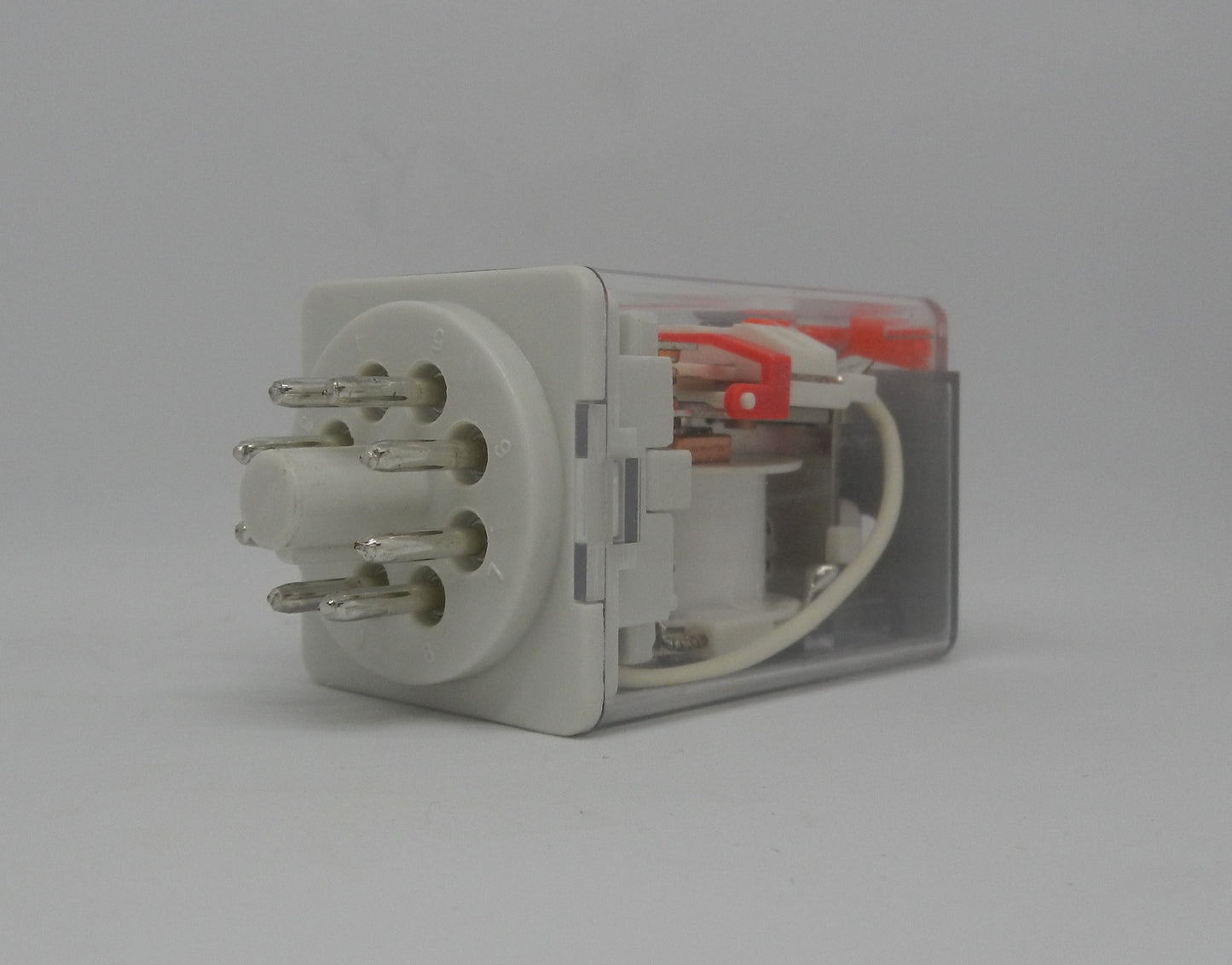

• Standard 8-pin octal plug-in design for quick installation and replacement
• Suitable for switching resistive and inductive loads in control panels and industrial machinery
• Built-in LED status indicator, mechanical flag, and manual test button for easy diagnostics and maintenance
• Long electrical life with over 100,000 electrical operations at rated load
• Compatible with Carlo Gavazzi ZPD8A, ZPD8XA, and other 8-pin relay sockets
• Available with multiple AC and DC coil voltage options depending on the suffix (coil voltage not specified by RCP8 002 alone).
• Ideal for industrial automation, PLC systems, HVAC equipment, machine control, process control, and OEM machinery

Specifications:

• Manufacturer Name: FEME / Carlo Gavazzi
• Part Number (MPN): RCP8 002
• Product Series: RCP
• Product Type: Industrial Electromechanical Relay
• Mounting Type: 8-Pin Octal Plug-In
• Number of Pins: 8
• Contact Configuration: DPDT (2 Changeover / 2 Form C)
• Contact Rating: 10 A
• Maximum Switching Capacity: 12 A (short-term)
• Maximum Switching Voltage:
  • 250 VAC
  • 30 VDC
• Coil Voltage: Varies by suffix (6–230 VAC or 6–110 VDC)
• Coil Power:
  • 2.5 VA (AC)
  • 1.5 W (DC)
• Operating Time: 30 ms
• Release Time: 20 ms
• Mechanical Life: 10 million operations
• Electrical Life: 100,000+ operations
• Insulation Resistance: 500 MΩ @ 500 VDC
• Protection Rating: IP40
• Ambient Operating Temperature: -40°C to +55°C
• Features:
  • LED Indicator
  • Mechanical Flag
  • Manual Test Button
• Compatible Sockets:
  • ZPD8A
  • ZPD8XA
  • ZC8/20.5

Dimensions:

• Height: 56 mm (2.20 in)
• Width: 35.5 mm (1.40 in)
• Depth: 35.5 mm (1.40 in).

Weight:

• Approximate Weight: 0.085 kg (0.19 lb).
