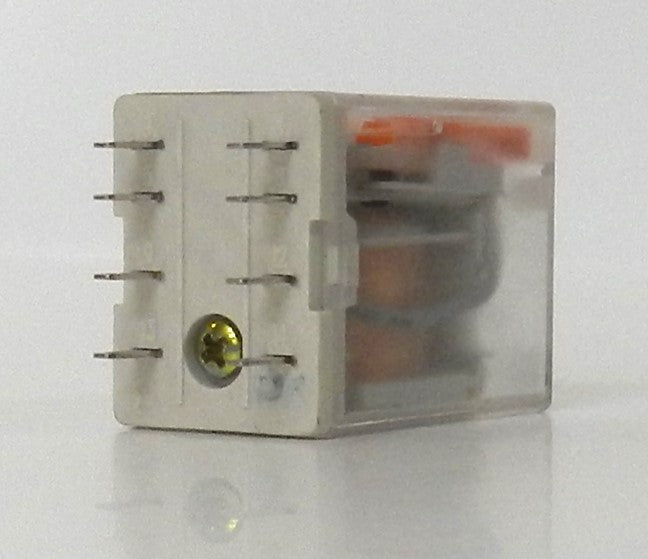

R2-2012-23-5120-WT Relpol Industrial Plug-In Relay DPDT 120VAC Coil 12A 8-Pin

Description:

• Genuine Relpol industrial plug-in electromagnetic relay for industrial control and automation systems
• Features DPDT (2 Changeover / 2 CO) contact configuration for versatile switching applications
• Equipped with a 120 VAC control coil
• Rated for 12A at 250 VAC and 12A at 24 VDC resistive loads
• AgNi (Silver Nickel) contact material provides excellent durability and reliable switching performance
• Includes a mechanical status indicator and lockable test button for simplified testing and maintenance
• Designed for installation with compatible plug-in relay sockets such as GZT2, GZM2, GZP2, SU4/2D, SU4/2L, and G4/2
• Compact industrial design with IP40 protective cover
• Ideal for industrial automation, PLC control panels, HVAC systems, OEM equipment, machine control, and process automation applications.

Specifications:

• Manufacturer Name: Relpol
• Part Number (MPN): R2-2012-23-5120-WT
• Product Series: R2N
• Product Type: Industrial Plug-In Electromagnetic Relay
• Contact Configuration: DPDT (2 CO / 2 Changeover)
• Contact Material: AgNi (Silver Nickel)
• Coil Voltage: 120 VAC
• Coil Power Consumption: 1.6 VA
• Coil Resistance: 3.77 kΩ
• Rated Load:
  • 12A @ 250 VAC (AC1)
  • 12A @ 24 VDC (DC1)
• Maximum Switching Voltage:
  • 440 VAC
  • 250 VDC
• Contact Resistance: 100 mΩ
• Number of Pins: 8
• Mounting Type: Plug-In Socket
• Protection Rating: IP40
• Operating Temperature: -40°C to +55°C
• Mechanical Indicator: Yes
• Lockable Test Button: Yes

Dimensions:

• Height: 35.6 mm (1.40 in)
• Width: 21.2 mm (0.83 in)
• Depth: 27.5 mm (1.08 in)

Weight:

• Approximate Weight: 0.035 kg (0.08 lb).
