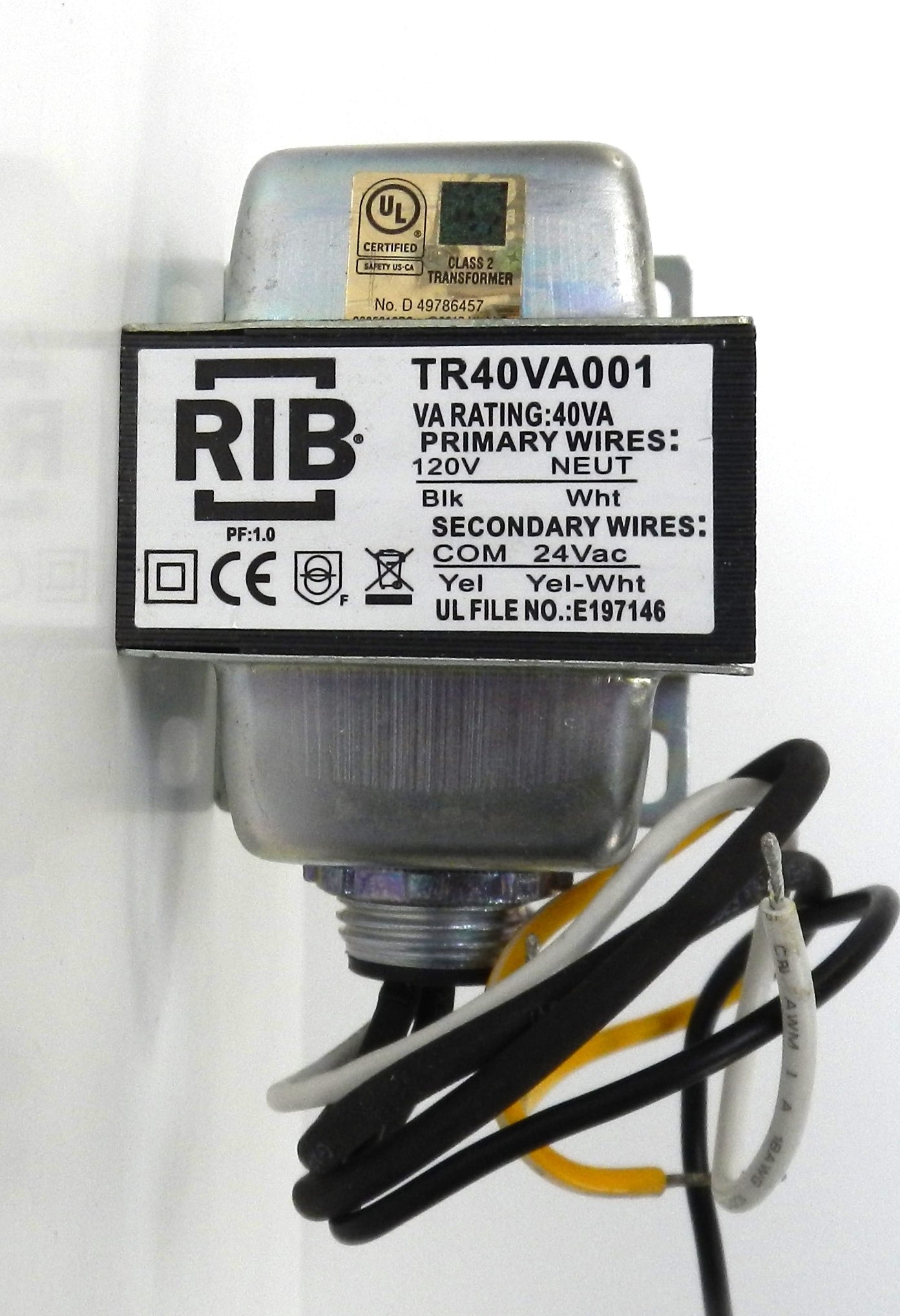

TR40VA001 RIB Functional Devices Class 2 Control Transformer 40VA 120VAC to 24VAC Foot & Hub Mount

Description:

• Genuine RIB (Functional Devices) Class 2 control transformer for HVAC, building automation, and industrial control applications
• Converts 120 VAC input to 24 VAC output with a 40 VA power rating
• Class 2 inherently limited transformer for safe, reliable low-voltage control circuits
• Designed with split-bobbin construction for enhanced electrical isolation and dependable performance

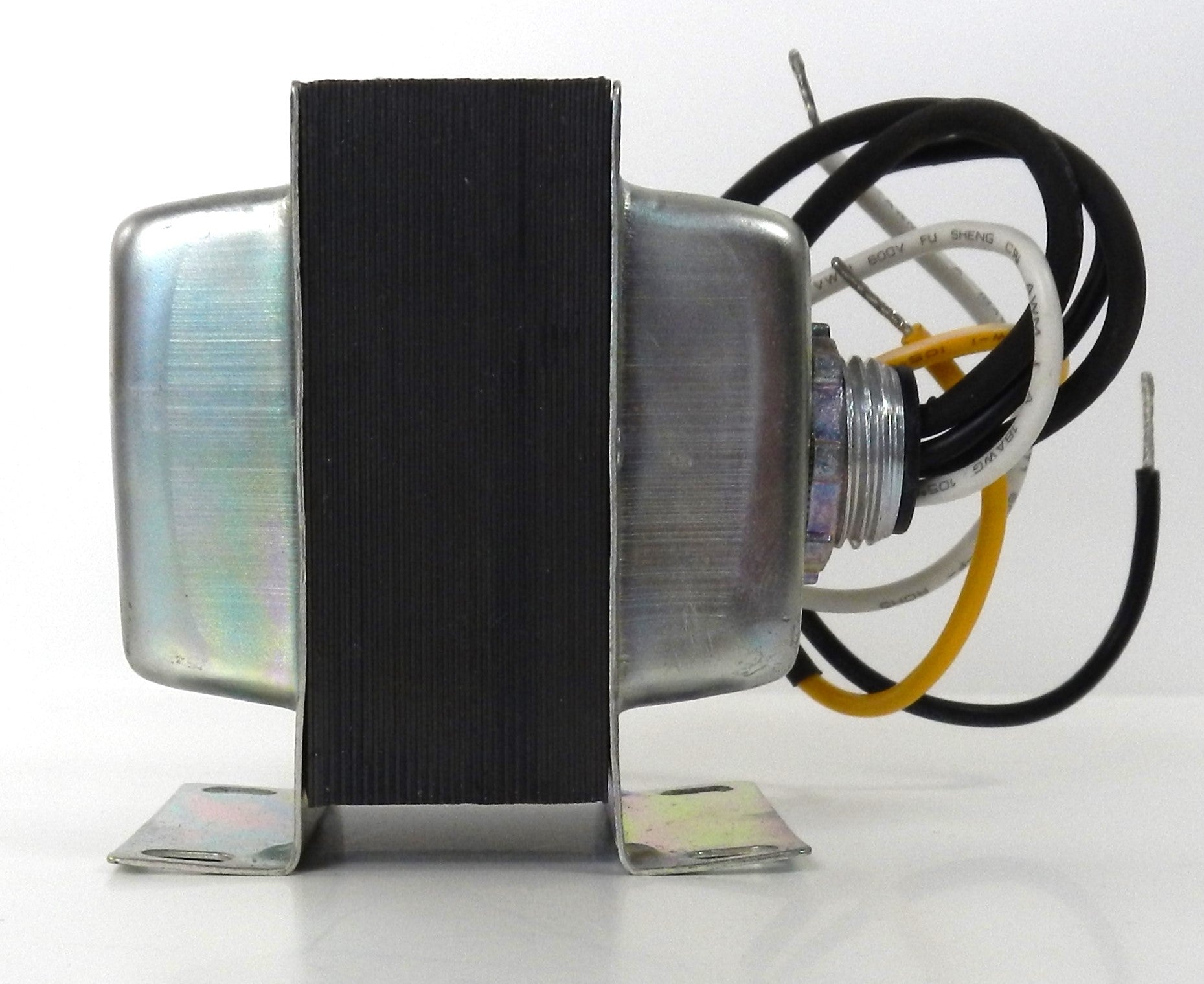

• Features foot mount and single 1/2 in. threaded hub for flexible installation
• Color-coded 8-inch wire leads simplify wiring and installation
• Suitable for powering thermostats, relays, gas valves, actuators, ignition controls, HVAC controllers, and building automation systems
• Open-frame design for installation inside approved electrical enclosures
• UL Listed, cUL Listed, CE and RoHS compliant for industrial and commercial applications

Specifications:

• Manufacturer Name: Functional Devices, Inc. (RIB)
• Part Number (MPN): TR40VA001
• Product Series: RIB TR Series
• Product Type: Class 2 Control Transformer
• VA Rating: 40 VA
• Primary Voltage: 120 VAC
• Secondary Voltage: 24 VAC
• Maximum Output Current: 1.67 A
• Frequency: 50/60 Hz
• Phase: Single Phase
• Mounting Type:
  • Foot Mount
  • Single 1/2 in. Threaded Hub
• Primary Connection: Wire Leads
• Secondary Connection: Wire Leads
• Overcurrent Protection: Inherently Limited
• Construction: Split-Bobbin
• Operating Temperature: -30°F to 140°F (-34°C to 60°C)
• Typical Wire Length: 8 in.
• MTBF: 100,000 Hours @ 77°F (25°C)
• Certifications:
  • UL 5085-3 Listed
  • cUL Listed
  • CE
  • RoHS
  • Class 2

Dimensions:

• Height: 2.91 in. (73.8 mm)
• Width: 2.17 in. (55.1 mm)
• Depth: 2.61 in. (66.2 mm) (excluding hub)
• Hub Size: 1/2 in. NPT

Weight:

• Approximate Weight: 0.91 kg (2.0 lb).
