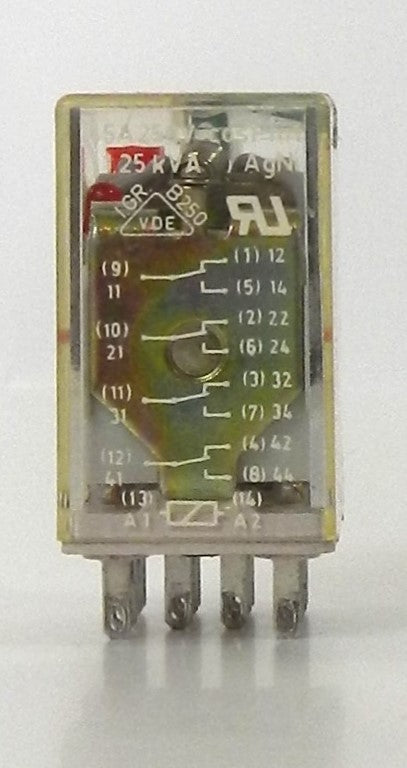

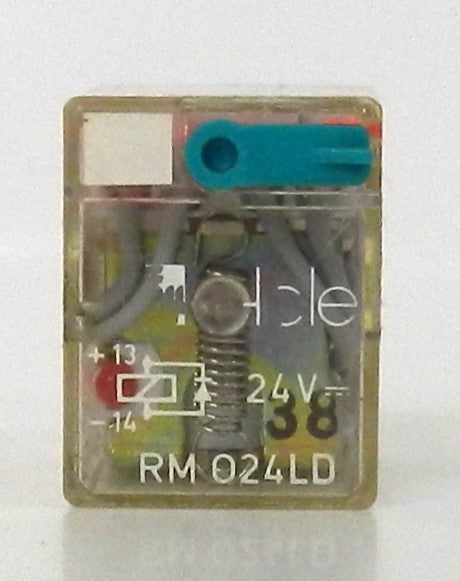

RM024LD Tele Controls Miniature Power Relay 24VDC 4PDT 6A Plug-In Relay with LED & Diode

$9.99 CAD

Sale Sold out

Style REFURBISH

Description:

Genuine Tele Controls RM Series miniature power relay for industrial control and automation applications
Operates with a 24 VDC coil and features an integrated LED status indicator and flyback (recovery) diode
Provides 4 Changeover (4PDT / 4 Form C) contacts for versatile switching applications
Rated for 6A switching current with AC and DC load capability
Plug-in relay design for easy installation and replacement using a compatible 14-pin relay socket
Manual test/locking lever and mechanical position indicator simplify commissioning and troubleshooting
Self-extinguishing thermoplastic housing with IP40 protection
Suitable for industrial automation, PLC panels, HVAC systems, process control, OEM equipment, and machine control
UL and VDE approved for reliable industrial operation.

Manufacturer Name: Tele Controls
Part Number (MPN): RM024LD
Product Series: RM Series
Product Type: Miniature Power Relay
Coil Voltage: 24 VDC
Coil Resistance: 640 Ω (±10%)
Coil Power Consumption: 0.9 W
Coil Features:
- LED Indicator
- Flyback (Recovery) Diode
Contact Configuration: 4PDT (4 Changeover / 4 Form C)
Rated Contact Current: 6 A
Maximum Switching Voltage: 250 VAC/DC
Rated Load:
- 6 A @ 250 VAC
- 6 A @ 24 VDC
Maximum Switching Capacity:
- 1500 VA (AC1)
- 144 W (DC1)
Contact Material: AgNi
Contact Resistance: ≤100 mΩ
Rated Inrush Current: 12 A
Response Time: 13 ms
Release Time: 3 ms
Mechanical Life: 20 Million Operations
Electrical Life: 100,000 Operations @ 5A / 250 VAC
Insulation:
- Coil to Contact: 2500 VAC
- Contact to Contact: 1500 VAC
- Pole to Pole: 2000 VAC
Mounting Type: Plug-In (14-Pin Relay Socket)
Protection Rating: IP40
Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +85°C
Approvals:
- UL
- VDE
