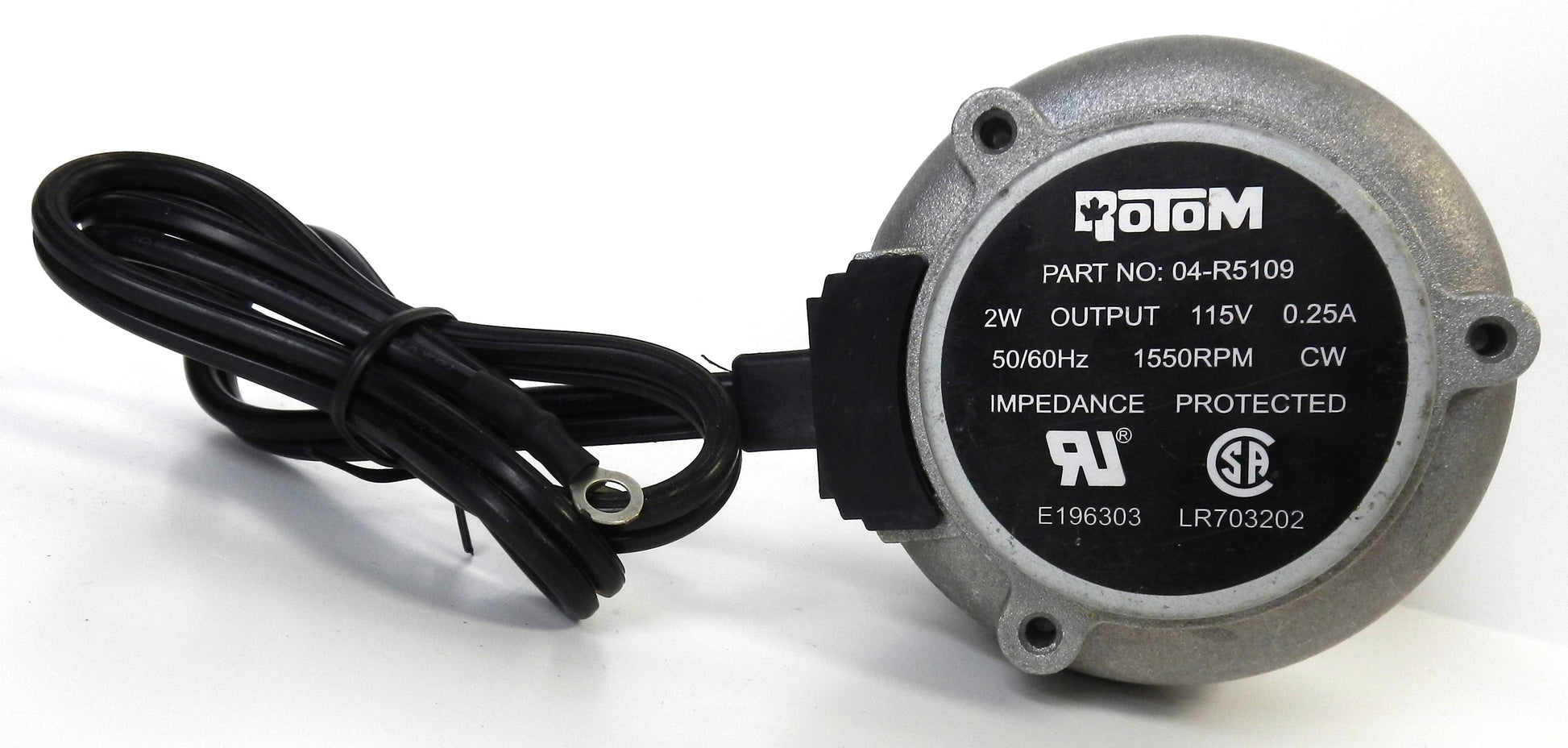

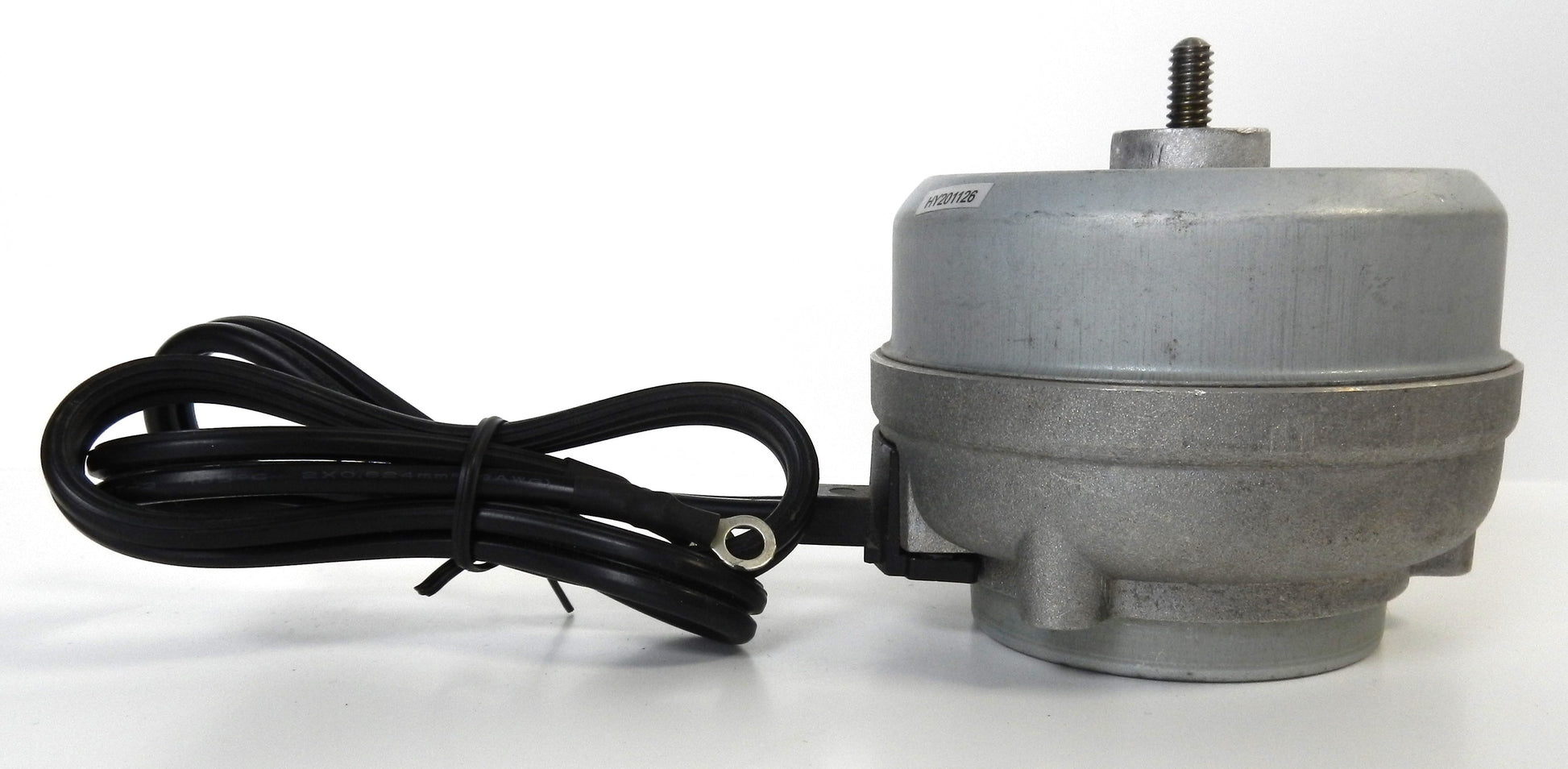

04-R5109 Rotom 2W Condenser Fan Motor 115V 1550 RPM CW 3.5" Refrigeration Motor

Description:

• Genuine Rotom condenser fan motor for commercial and residential refrigeration applications
• Rated at 2 Watts, 115 VAC, and 1550 RPM for reliable condenser fan operation
• Clockwise (CW) rotation when viewed opposite the shaft end
• Shaded pole motor design for dependable, maintenance-free performance
• 3.5-inch diameter, 51 frame, totally enclosed construction for long service life
• Threaded shaft design for quick installation on compatible condenser fan assemblies
• Sleeve bearing construction provides smooth, quiet operation
• Direct replacement for numerous OEM condenser fan motors used in refrigerators, freezers, vending machines, and refrigeration equipment
• Replaces OEM part numbers including GE 5109, WR60X77, 5KSM51AG3070, and 5KSP51AZL826.

Specifications:

• Manufacturer Name: Rotom
• Part Number (MPN): 04-R5109
• Product Type: Condenser Fan Motor
• Motor Type: Shaded Pole
• Power Output: 2 W
• Voltage: 115 VAC
• Current: 0.25 A
• Speed: 1550 RPM
• Rotation: Clockwise (CW) (Opposite Shaft End)
• Number of Speeds: 1
• Frame Size: 51 Frame
• Body Diameter: 3.5 in
• Body Length: 2.50 in
• Shaft Type: Threaded
• Bearing Type: Sleeve Bearing
• Enclosure: Totally Enclosed
• Mounting Type: Rear Holes
• Applications:
  • Refrigerators
  • Freezers
  • Refrigeration Condensing Units
  • Beverage Coolers
  • Vending Machines
  • Commercial Refrigeration Equipment

Dimensions:

• Body Diameter: 3.5 in (88.9 mm)
• Body Length: 2.50 in (63.5 mm)
• Frame Size: 51 Frame

Weight:

• Approximate Weight: 0.9 kg (2.0 lb).
