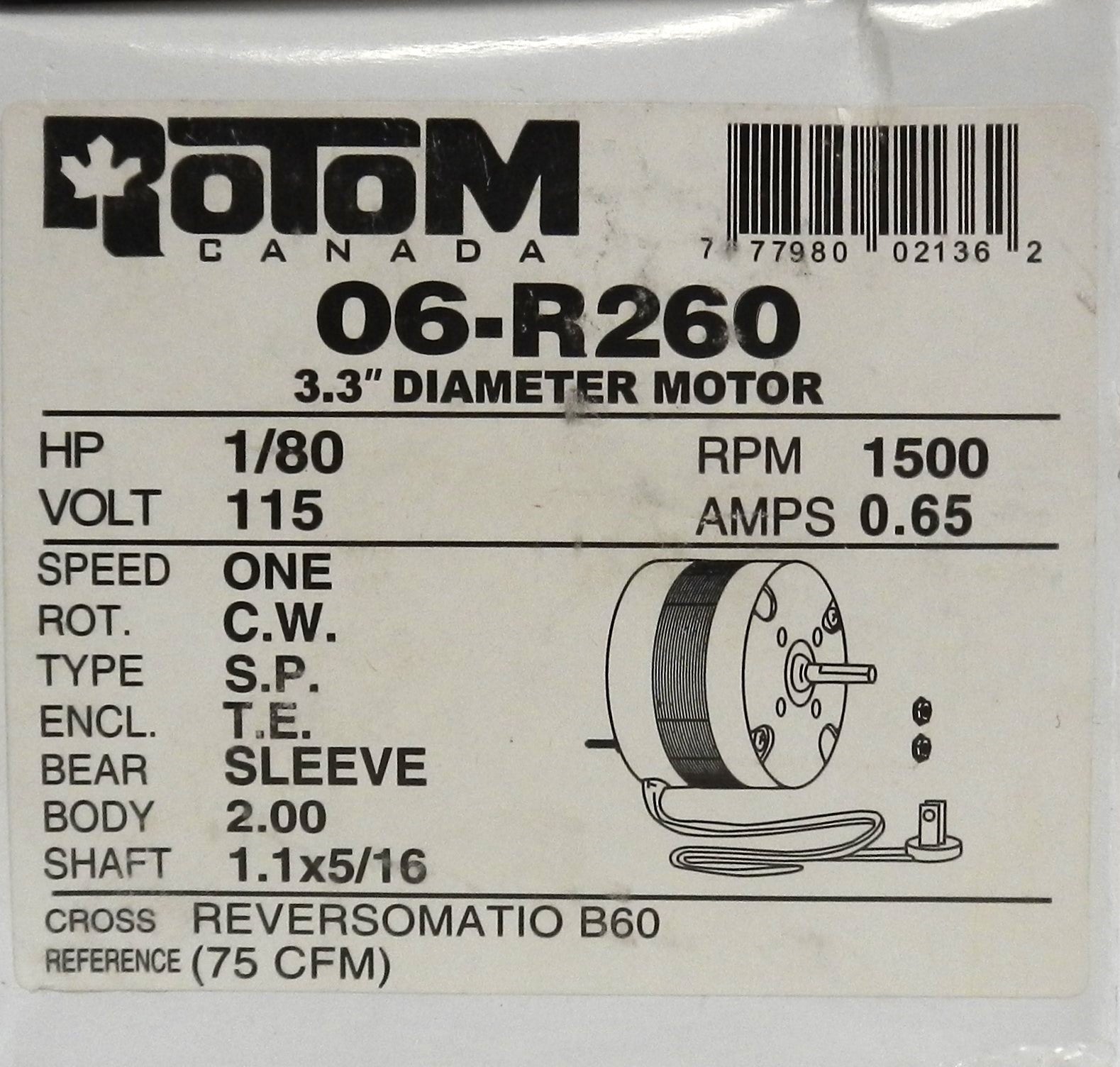

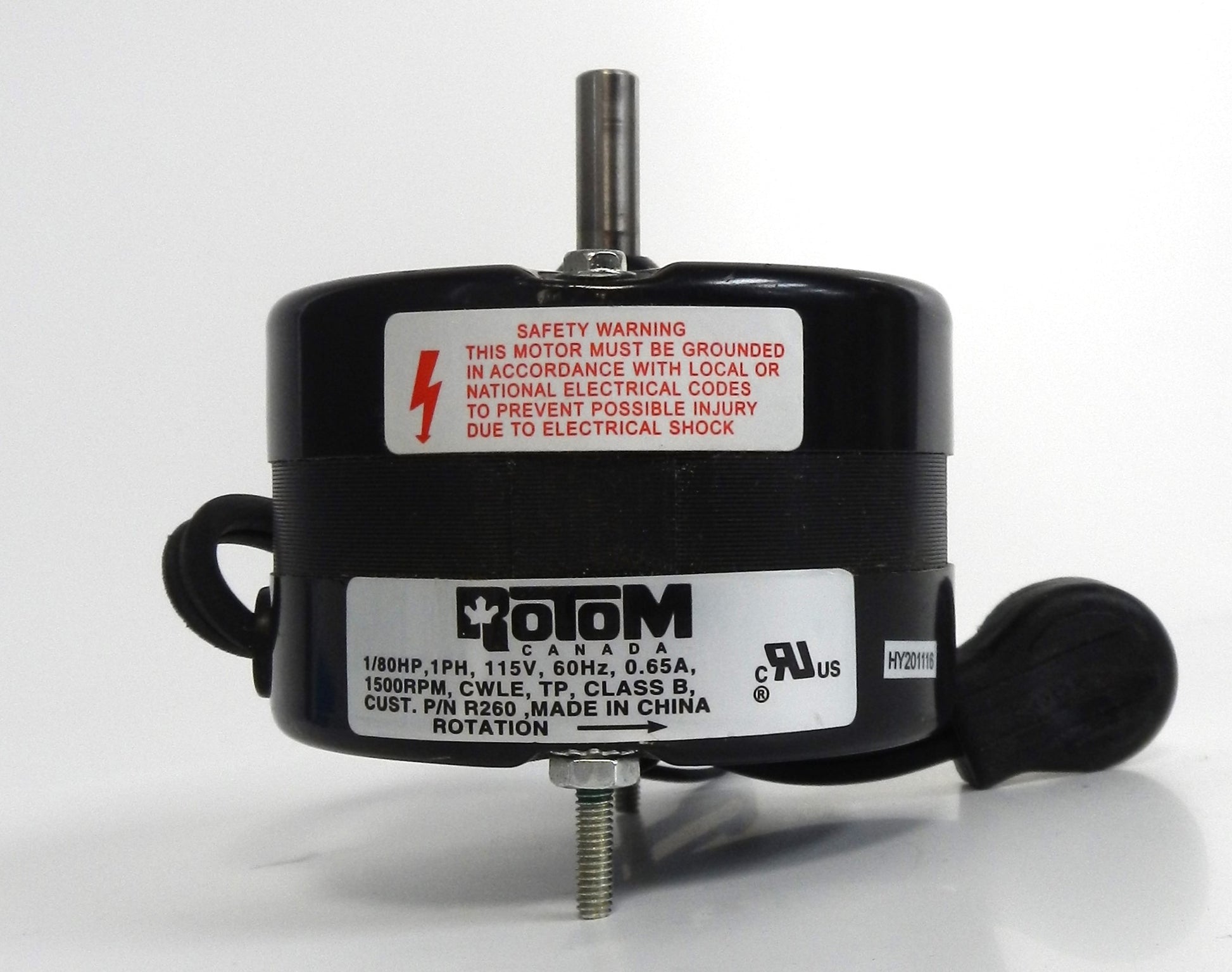

06-R260 ROTOM 1/80 HP Shaded Pole Motor 115V 1500 RPM CW Sleeve Bearing

Description:

• Genuine ROTOM shaded pole motor designed for HVAC, ventilation, refrigeration, and exhaust fan applications
• Rated at 1/80 HP with a 115 VAC, 60 Hz single-phase power supply
• Operates at 1500 RPM with clockwise (CW) shaft rotation (viewed opposite the shaft end)
• Draws 0.65 Amps for efficient, low-power operation
• Totally enclosed (TE) construction helps protect the motor in demanding environments
• Equipped with sleeve bearings for smooth and quiet operation
• Features a 3.3-inch diameter frame with a 5/16-inch diameter shaft

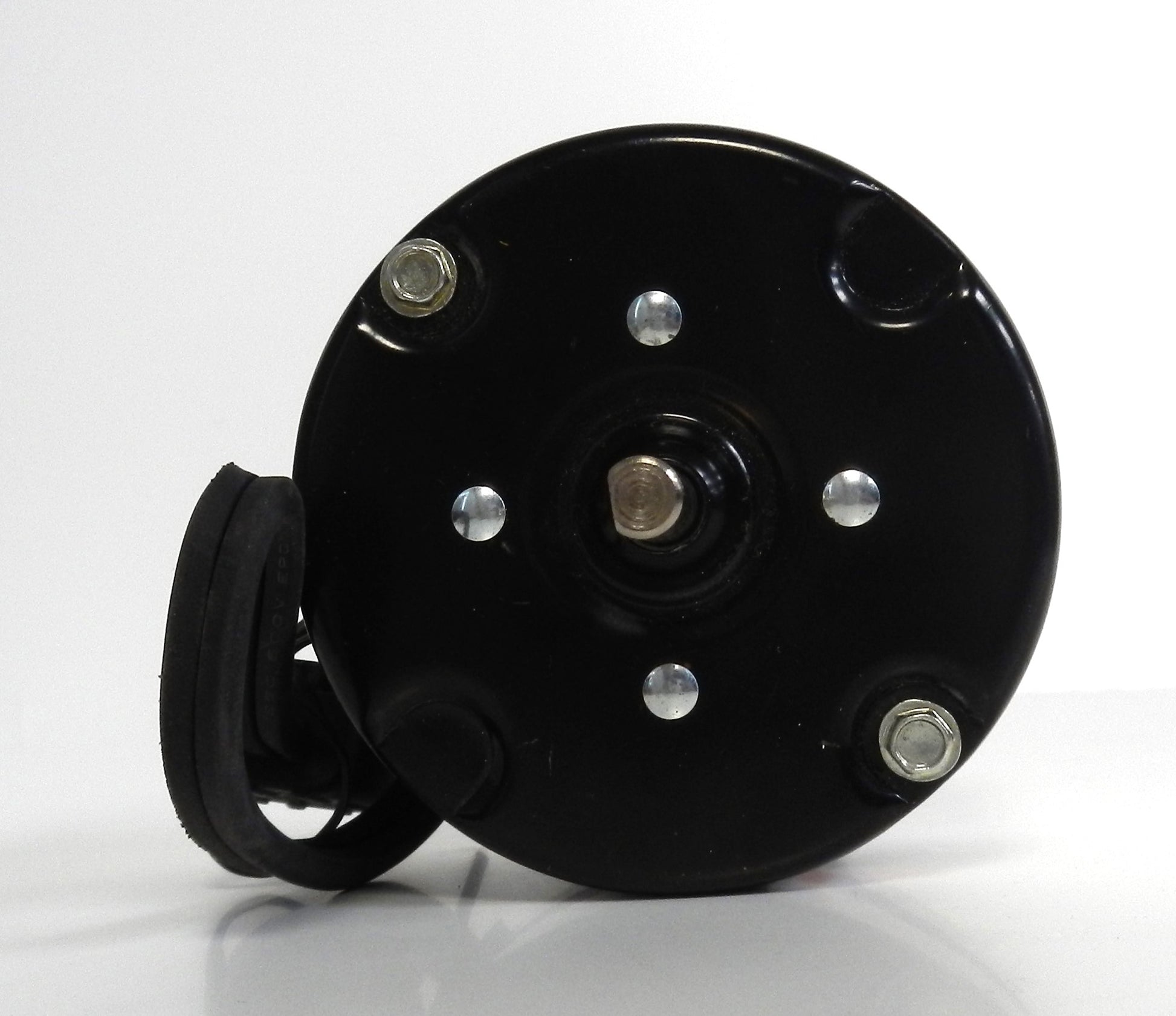

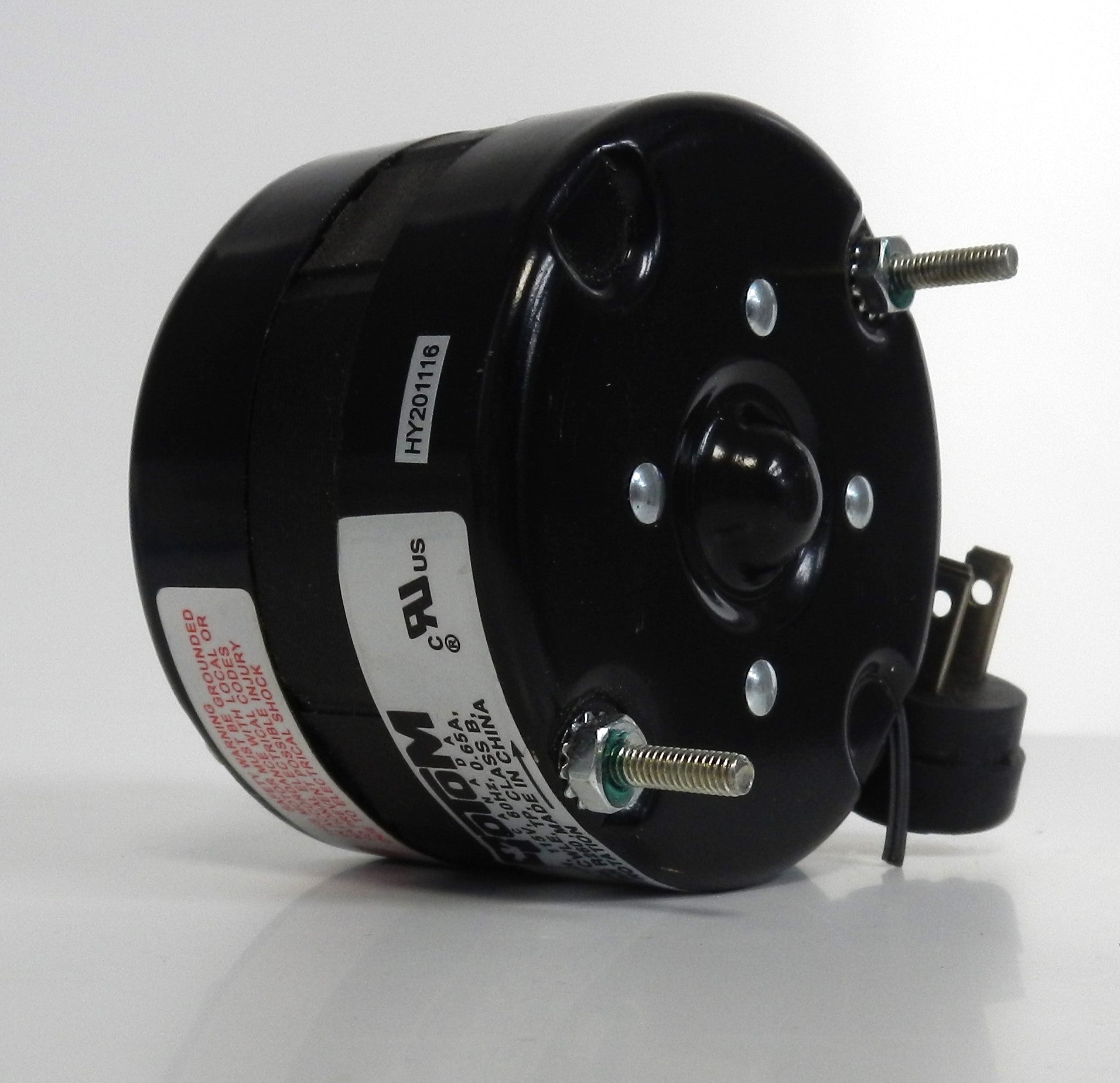

• Bracket-mounted design with dual external mounting studs for easy installation
• Ideal for HVAC equipment, refrigeration units, exhaust fans, blower assemblies, and OEM replacement applications
• Cross references include B60, EB60, 013012, and 4099.

Specifications:

• Manufacturer Name: ROTOM
• Part Number (MPN): 06-R260
• Product Type: Shaded Pole Motor
• Horsepower: 1/80 HP
• Voltage: 115 VAC
• Phase: Single Phase
• Frequency: 60 Hz
• Current: 0.65 A
• Speed: 1500 RPM
• Rotation: Clockwise (CWSE)
• Enclosure: Totally Enclosed (TE)
• Bearing Type: Sleeve Bearing
• Frame Size: 3.3 in Diameter
• Shaft Diameter: 5/16 in
• Shaft Length: 1.10 in
• Mounting: Bracket Mount with Dual External Studs
• Insulation Class: F
• Duty Cycle: Continuous Duty
• Frame Material: Rolled Steel
• Applications:
  • HVAC Systems
  • Exhaust Fans
  • Refrigeration Equipment
  • Ventilation Systems
  • Blower Assemblies
  • OEM Equipment

Dimensions:

• Frame Diameter: 3.3 in (84 mm)
• Shaft Diameter: 5/16 in (7.9 mm)
• Shaft Length: 1.10 in (28 mm)

Weight:

• Approximate Weight: 1.36 kg (3.0 lb).
